PB 26H54 YT (960420110-00) - Poulan Pro Lawn Tractor (2009-12) Drive Parts Diagram

Lawn Tractor

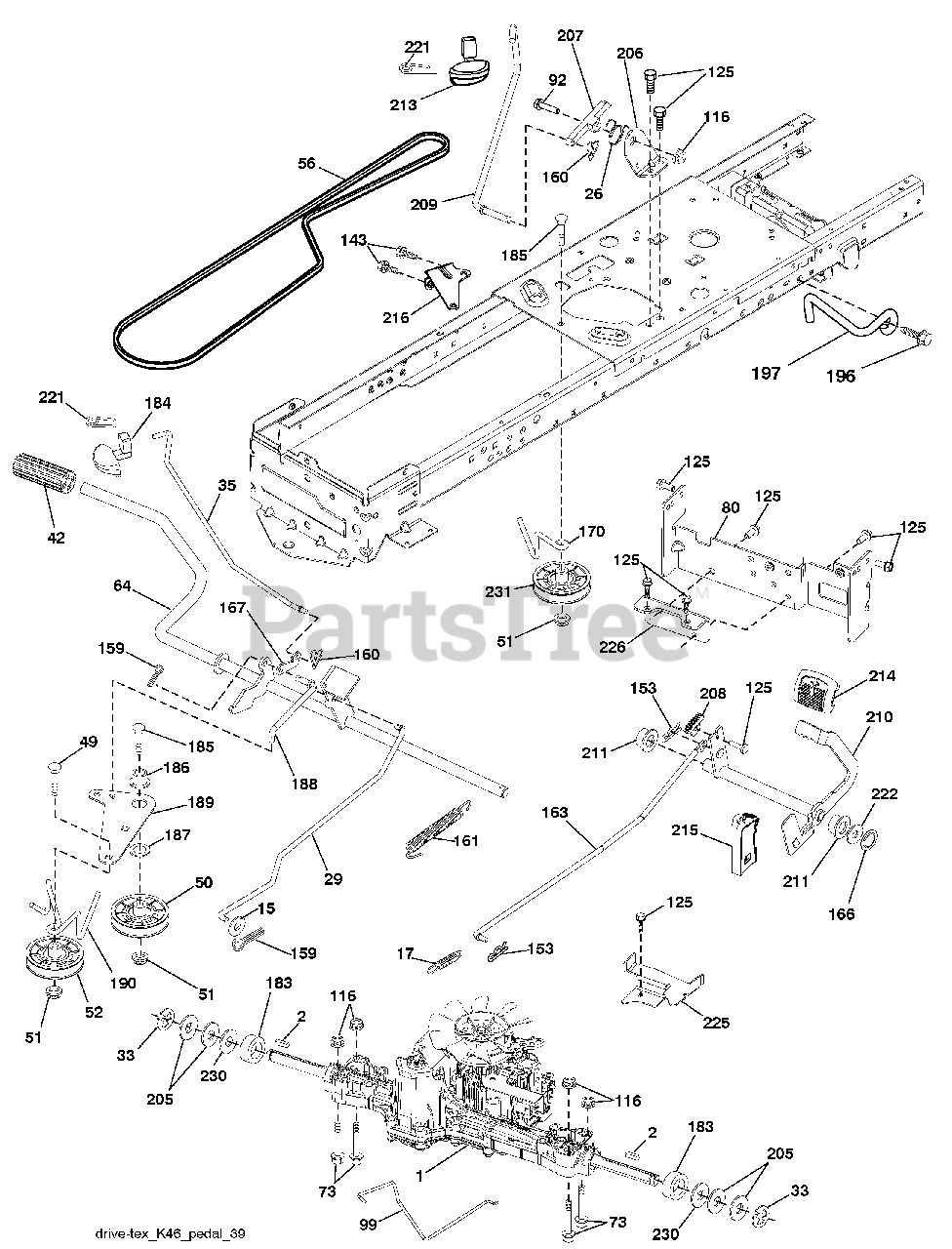

Drive Parts Diagram

  • Title
1

Electrolux/AYP 532426120

Transaxle, Tufftorq K46BT

Note: (Order Parts from Transaxle Manufacturer)

$856.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 123583X

Key
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 413678

Spring, Brake
(Superseded to 532413678)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 199679

Spring Return Cruise
(Superseded to 532199679)

$6.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 403806

Rod, Brake
(Superseded to 532403806)

$31.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000001

Ring E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 197722

Rod, Brake, Park
(Superseded to 532197722)

$39.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 72110614

Bolt
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 194327

Pulley Idler Flat
(Superseded to 532194327)

$20.99

$

In Stock, Qty 16

0

51

Murray 73900600

Lock Nut 3/8-16

$

$

Not available

52

Electrolux/AYP 194326

Idler V-Groove 910" Offset
(Superseded to 532194326)

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 130969

V-Belt, Drive
(Superseded to 532130969)

$30.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 197865

Shaft Asm. Pedal Brake Control
(Superseded to 532197865)

$53.99

$

In Stock, only 1 left!

0

73

Electrolux/AYP 74490544

Bolt Hex 5/16-18 x 3.75
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 410024

Strap Torque
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 74760520

Bolt Fin Hex 5/16-18 unc x 1.25

$2.49

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 415742

Rod Spring Bypass
(Superseded to 532415742)

$10.99

$

In Stock, only 2 left!

0

116

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Electrolux/AYP 17490508

Screw 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 4497H

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 169484

Retainer Clip
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 401034

Rod Pedal Control
(Superseded to 532401034)

$

$

Not available

166

Electrolux/AYP 429164

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 405257

Latch Brake Parking
(Superseded to 532405257)

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 413430

Keeper Belt Centerspan
(Superseded to 532413430)

$7.49

$

In Stock, only 1 left!

0

183

Electrolux/AYP 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 198403X505

Handle Parking Brake
(Superseded to 532411283)

$

$

Not available

185

Electrolux/AYP 72110622

Bolt
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

186

Electrolux/AYP 194321

Spacer Retainer
(Superseded to 532194321)

$9.49

$

In Stock, Qty 9

0

187

Electrolux/AYP 19133210

Washer
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 194317

Bellcrank Ground Drive
(Superseded to 532194317)

$

$

Not available

190

Electrolux/AYP 194318

Keeper Bellcrank Ground Drive
(Superseded to 532194318)

$8.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 17000616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

197

Electrolux/AYP 195804

Link Clutch Anti-Rotation
(Superseded to 532195804)

$8.99

$

In Stock, only 4 left!

0

205

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

206

Electrolux/AYP 197867

Bracket Mount Latch Cruise

$2.49

$

Usually ships in 3-10 days

0

207

Electrolux/AYP 197868

Latch Control Cruise
(Superseded to 532197868)

$

$

Not available

208

Electrolux/AYP 197869

Gear Sector Control Cruise
(Superseded to 532197869)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 400769

Rod Control Cruise
(Superseded to 583266101)

$11.99

$

Usually ships in 3-10 days

0

210

Electrolux/AYP 400980

Rockr Asm. Pdeal Control
(Superseded to 532400980)

$37.99

$

In Stock, only 1 left!

0

211

Electrolux/AYP 120183X

Bearing Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

213

400799 x428

Knob control Cruise

$

$

Not available

214

Electrolux/AYP 421263

Pad Pedal Forward
(Superseded to 532421263)

$8.99

$

In Stock, only 1 left!

0

215

197301 x428

Pad Pedal Reverse

$

$

Not available

216

Electrolux/AYP 196131

Bracket Pulley Idler
(Superseded to 532196131)

$7.99

$

In Stock, only 1 left!

0

221

Electrolux/AYP 403187

Retainer Spring Clip Handle
(Superseded to 532403187)

$6.49

$

In Stock, only 2 left!

0

222

Electrolux/AYP 79212010

Washer 21/32 x 1-1/4 10 Ga.
(Superseded to 879212010)

$6.49

$

In Stock, only 1 left!

0

225

Electrolux/AYP 403319

Keeper Belt Transaxle
(Superseded to 532403319)

$

$

Not available

226

Electrolux/AYP 401564

Bracket Mount Torque
(Superseded to 532401564)

$18.99

$

Usually ships in 3-10 days

0

230

Electrolux/AYP 188967

Washer Harden .793 x 1.637 x 060
(Superseded to 532188967)

$4.99

$

In Stock, Qty 20+

0

231

Electrolux/AYP 407287

Idler V-Groove
(Superseded to 532407287)

$22.99

$

In Stock, Qty 9

0
