PB-265 LN - Echo Backpack Blower (SN: P43014001001 - P43014999999) Fuel System Parts Diagram

Backpack Blower

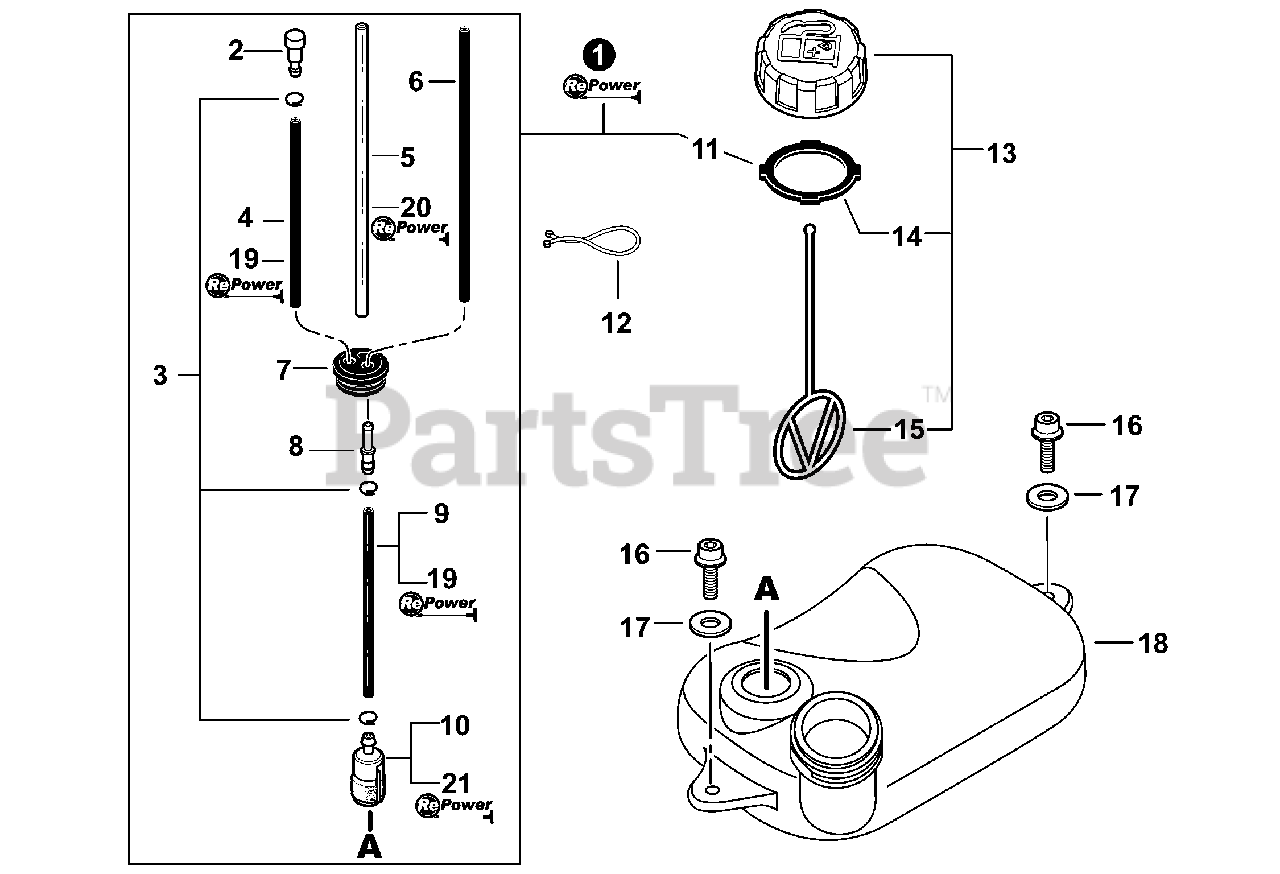

Fuel System Parts Diagram

  • Title

1

Echo 90126

FUEL SYSTEM KIT - REPOWER
(Superseded to Discontinued)

Note: Includes ITEMS 2-11

$

$

Not available

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$1.99

$

In Stock, Qty 20+

0

5

Echo V471003000

PIPE, FUEL 3×6×125

$1.49

$

In Stock, Qty 20+

0

6

Echo V471003610

PIPE, FUEL - 3×5×120 - BLACK

$4.99

$

In Stock, only 2 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

10

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo 13201305060

CLIP, TUBE

$0.99

$

Usually ships in 2-4 days

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 14-15

$5.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

16

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

17

Echo 61301907350

WASHER 5.5×16×2T

$0.99

$

In Stock, Qty 20+

0

18

Echo A350000880

TANK, FUEL

$18.99

$

In Stock, only 4 left!

0

19

Echo 90014

PIPE, FUEL - REPOWER BULK 3×5mm BLACK

$42.99

$

In Stock, Qty 12

0

20

Echo 90017

PIPE, FUEL - REPOWER BULK 3×6mm CLEAR

$58.99

$

In Stock, Qty 15

0

21

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

$23.99

$

In Stock, Qty 14

0
