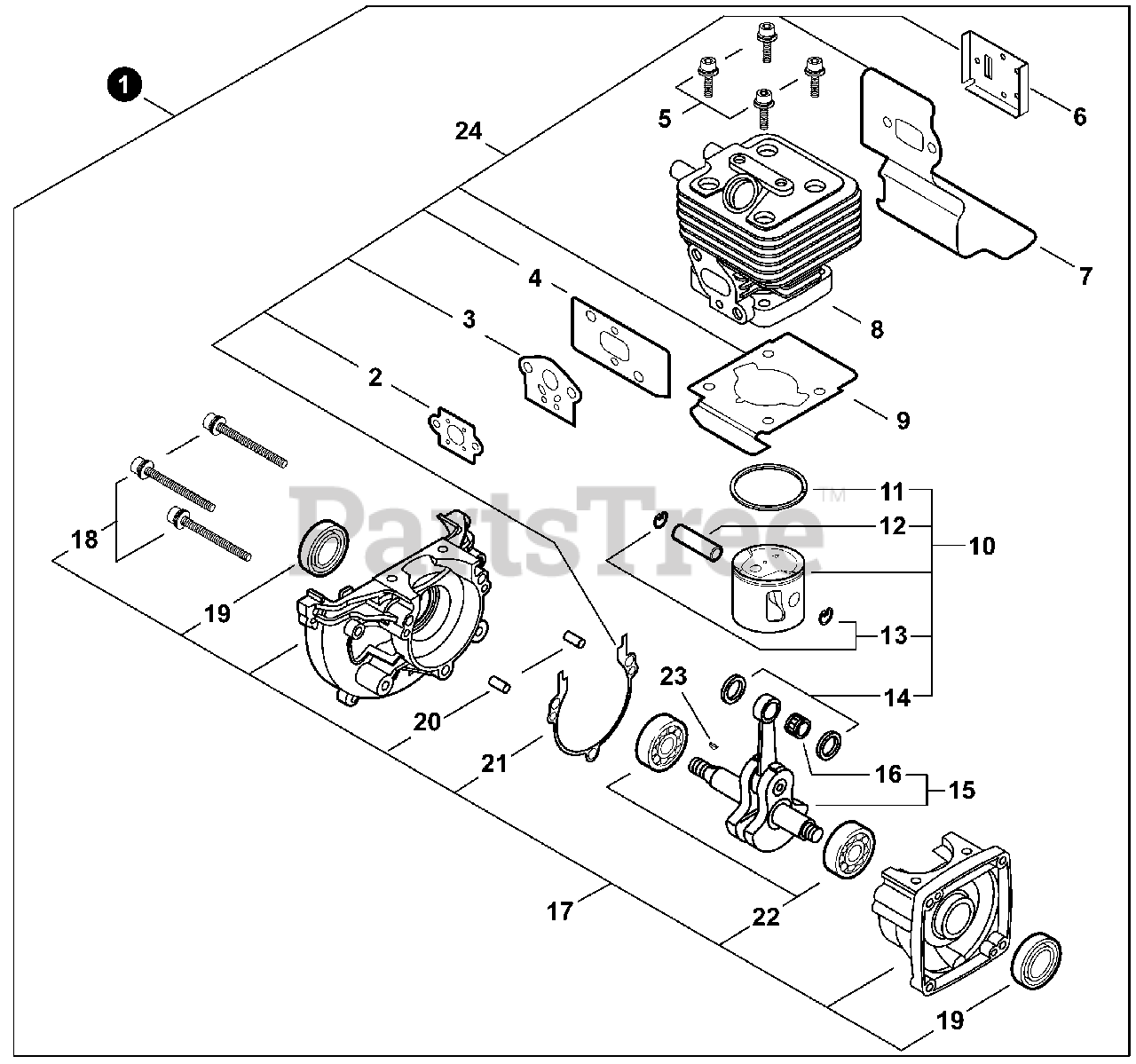

PB-265 LN - Echo Backpack Blower (SN: P35513001001 - P35513999999) Engine Parts Diagram

Backpack Blower

Engine Parts Diagram

  • Title

1

Echo SB1098

SHORT BLOCK
(Superseded to Discontinued)

Note: Includes ITEMS 2-23

$

$

Not available

2

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

3

Echo 13001013410

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 20+

0

4

Echo V103000300

GASKET, INTAKE

$1.49

$

In Stock, only 4 left!

0

5

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

6

Echo V104000840

GASKET, EXHAUST

$8.99

$

Usually ships in 2-4 days

0

7

Echo V104000750

HEAT SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0

8

Echo A130000780

CYLINDER

$103.99

$

Usually ships in 2-4 days

0

9

Echo V100000190

GASKET, CYLINDER

$2.49

$

In Stock, Qty 20+

0

10

Echo P021010260

PISTON KIT

Note: Includes ITEMS 11-14

$43.99

$

In Stock, only 1 left!

0

11

Echo A101000140

RING, PISTON

$6.49

$

In Stock, Qty 14

0

12

Echo V606000000

PIN, PISTON 5×8×28

$6.49

$

Usually ships in 2-4 days

0

13

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

14

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

15

Echo A011000371

CRANKSHAFT ASSY

Note: Includes ITEM 16

$110.99

$

Usually ships in 2-4 days

0

16

Echo V553000010

BEARING, NEEDLE 8

$9.99

$

In Stock, only 2 left!

0

17

Echo P021008231

CRANKCASE KIT

Note: Includes ITEMS 18-22

$114.99

$

Usually ships in 2-4 days

0

18

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

19

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

20

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

21

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

22

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

23

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 15

0

24

Echo P021012380

GASKET KIT
