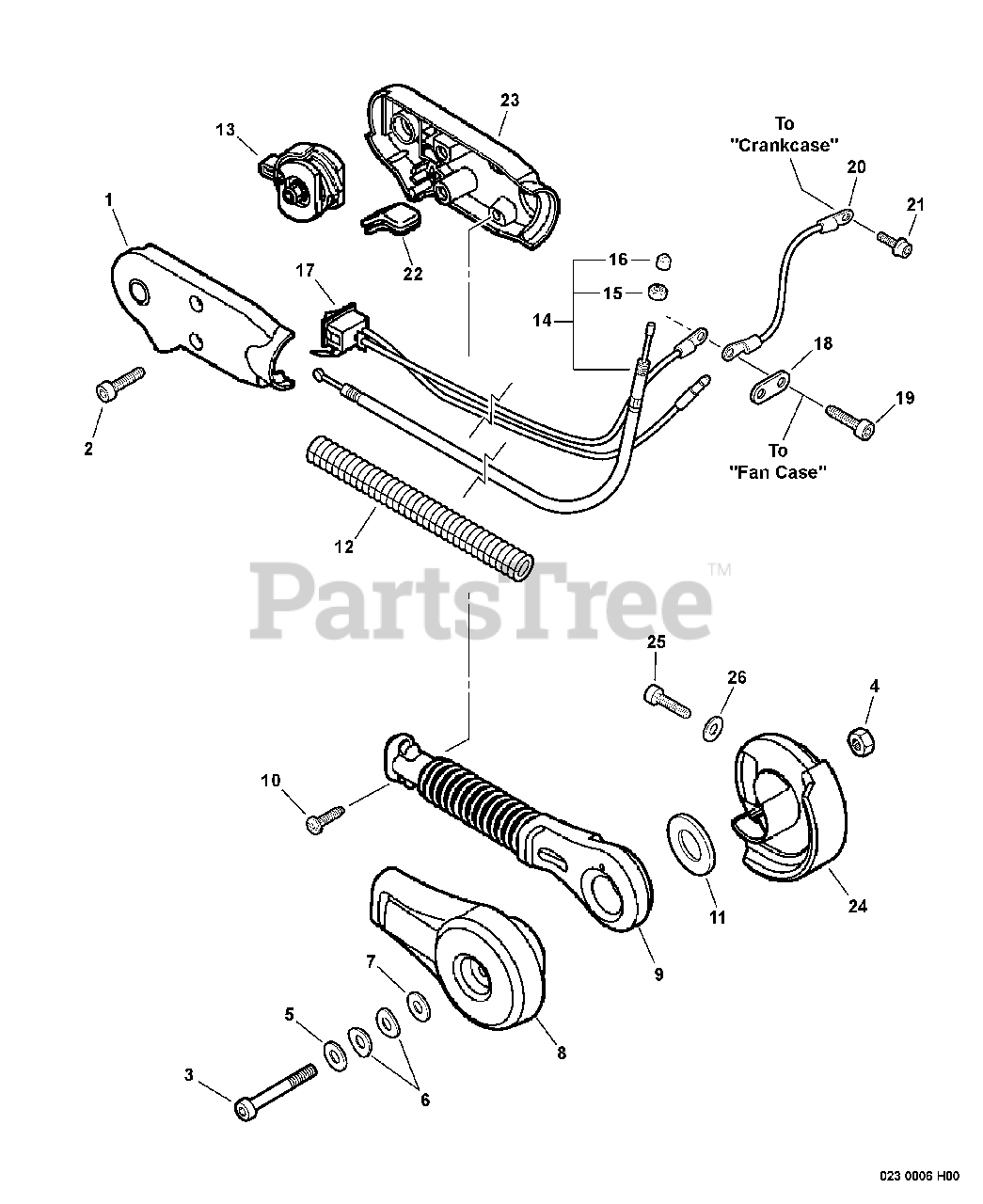

PB-265 L - Echo Backpack Blower (SN: 09001001 - 09999999) Hip Mount Throttle Parts Diagram

Backpack Blower

Hip Mount Throttle Parts Diagram

  • Title
1

Echo C471000111

HANDLE, CONTROL - LEFT
(Superseded to P021014670)

$5.49

$

In Stock, only 4 left!

0

2

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

3

Echo V204000150

BOLT - 6

$1.99

$

Usually ships in 2-4 days

0

4

Echo 90056250006

LOCKNUT - 6

$1.49

$

Usually ships in 2-4 days

0

5

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 17816021060

WASHER - SPRING

$0.99

$

In Stock, only 3 left!

0

7

Echo V304000040

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$2.99

$

Usually ships in 2-4 days

0

9

Echo C456000050

ARM, THROTTLE CONTROL

$8.49

$

In Stock, Qty 10

0

10

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

11

$1.99

$

In Stock, Qty 5

0

12

Echo V475003820

TUBE, PROTECTIVE - CORRUGATED

$4.99

$

Usually ships in 2-4 days

0

13

Echo C470000160

CONTROL, THROTTLE
(Superseded to C470000161)

$7.99

$

In Stock, only 2 left!

0

14

Echo V430001760

CABLE, THROTTLE

Note: Includes ITEMS 15-16

$10.99

$

In Stock, only 3 left!

0

15

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

16

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

17

Echo A045000140

SWITCH, IGNITION
(Superseded to A045000141)

$

$

Not available

18

$0.99

$

In Stock, only 4 left!

0

19

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, only 4 left!

0

20

Echo V485000800

LEAD - GROUND

$3.99

$

In Stock, only 1 left!

0

21

Echo 90010605008

SCREW - 5X8

$0.99

$

In Stock, Qty 20+

0

22

$2.49

$

In Stock, only 2 left!

0

23

Echo C471000100

HANDLE, CONTROL - RIGHT
(Superseded to P021014670)

$5.49

$

In Stock, only 4 left!

0

24

Echo C472000041

BRACKET, ARM - INNER

$2.99

$

Usually ships in 2-4 days

0

25

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

26

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 10

0
