PB-261 L - Echo Backpack Blower (SN: P07411001001 - P07411999999) Carburetor -- WYK-190 Parts Diagram

Backpack Blower

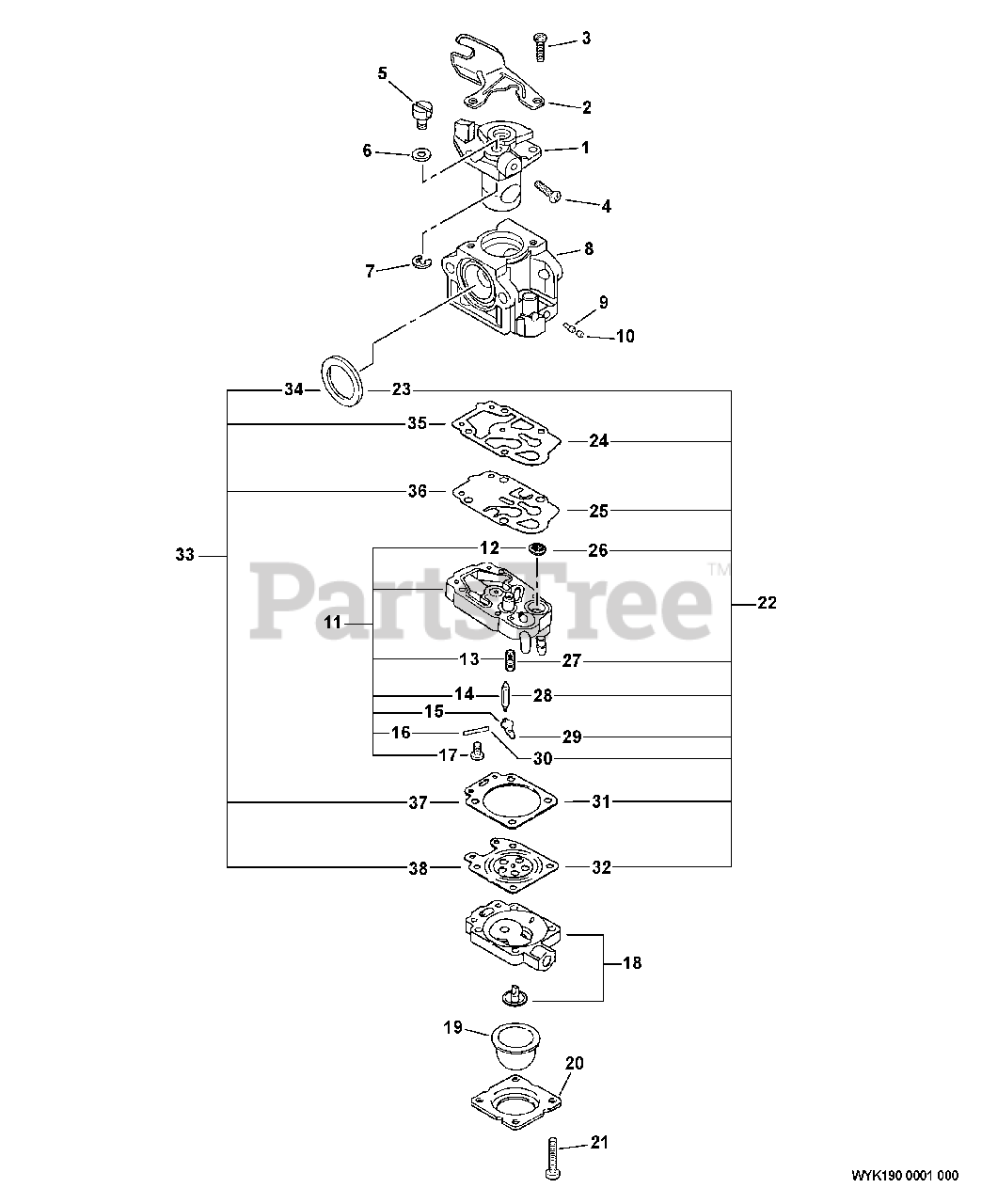

Carburetor -- WYK-190 Parts Diagram

  • Title

Echo A021000840

CARBURETOR WYK-190

$89.99

$

Usually ships in 2-4 days

0

1

------------------

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

4

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

5

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

7

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

8

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

9

Echo P003001130

NEEDLE - HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

10

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

11

Echo P003000890

PUMP BODY ASSY

Note: Includes ITEMS 12-17

$28.99

$

Usually ships in 2-4 days

0

12

------------------

STRAINER

$

$

Not available

13

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

14

------------------

VALVE, INLET NEEDLE

$

$

Not available

15

------------------

LEVER, METERING

$

$

Not available

16

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

17

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

19

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

20

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

21

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

22

Echo P003001120

REPAIR KIT
(Superseded to P003001121)

Note: INCLUDES ITEMS 23-32

$22.99

$

In Stock, Qty 6

0

23

------------------

SEAL

$

$

Not available

24

------------------

GASKET, PUMP

$

$

Not available

25

------------------

DIAPHRAGM, PUMP

$

$

Not available

26

------------------

STRAINER

$

$

Not available

27

------------------

VALVE, INLET NEEDLE

$

$

Not available

28

------------------

SPRING, METERING LEVER

$

$

Not available

29

------------------

LEVER, METERING

$

$

Not available

30

------------------

PIN, METERING LEVER

$

$

Not available

31

------------------

GASKET, DIAPHRAGM

$

$

Not available

32

------------------

DIAPHRAGM, METERING

$

$

Not available

33

Echo P003001110

DIAPHRAGM/GASKET KIT
(Superseded to P003001120)

Note: INCLUDES ITEMS 34-38

$22.99

$

In Stock, Qty 6

0

34

------------------

SEAL

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

------------------

DIAPHRAGM, PUMP

$

$

Not available

37

------------------

GASKET, DIAPHRAGM

$

$

Not available

38

------------------

DIAPHRAGM, METERING

$

$

Not available
