PB-255 LN - Echo Handheld Blower (SN: P35213001001 - P35213999999) Engine Parts Diagram

Handheld Blower

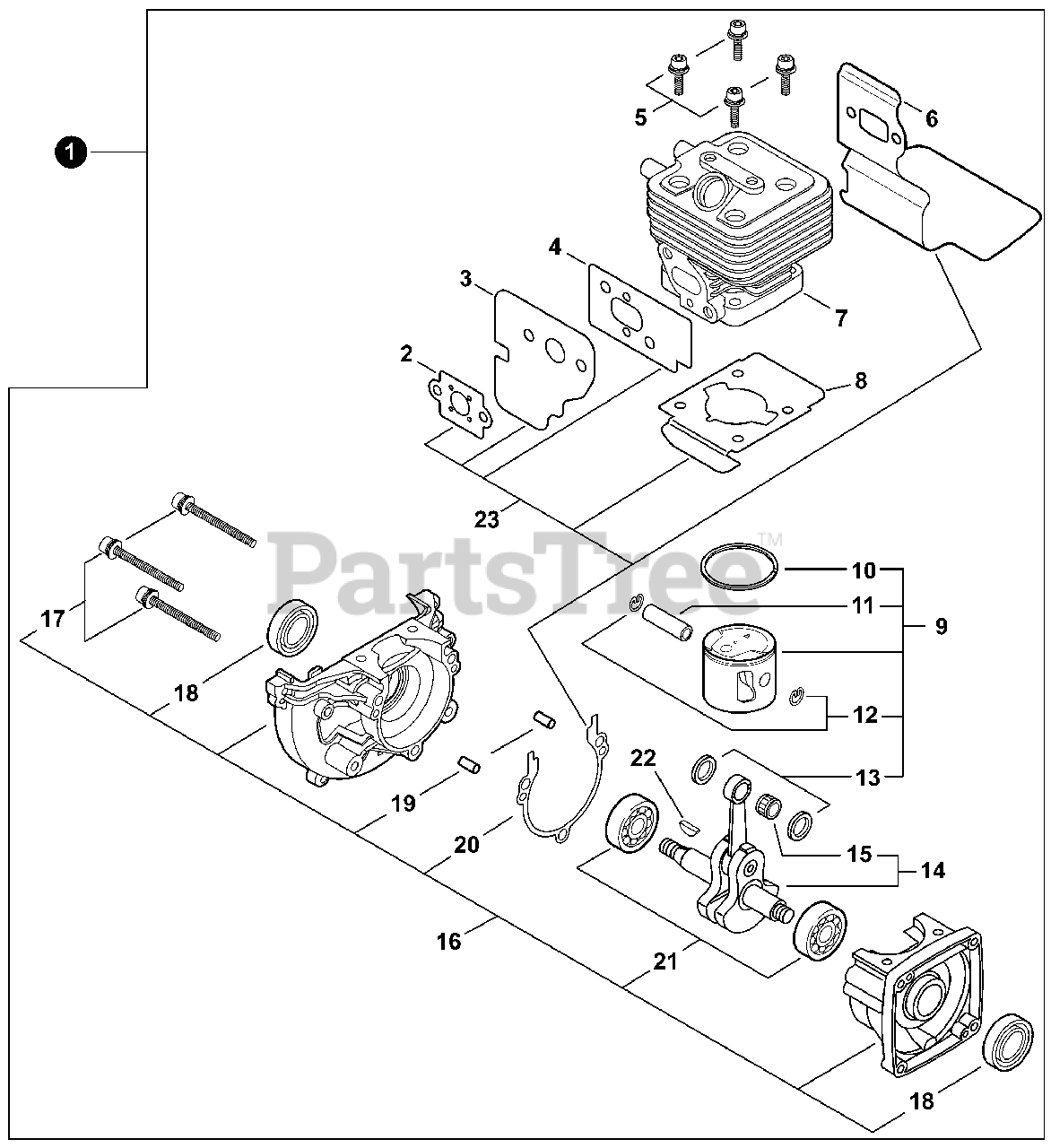

Engine Parts Diagram

  • Title

1

Echo SB1092

SHORT BLOCK

Note: Includes ITEMS 2-22

$177.99

$

In Stock, Qty 9

0

2

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

3

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 6

0

4

Echo V103000390

GASKET, INTAKE

$0.99

$

In Stock, Qty 6

0

5

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

6

Echo V104000820

HEAT SHIELD, EXHAUST

$4.99

$

In Stock, Qty 5

0

7

Echo A130000780

CYLINDER

$103.99

$

Usually ships in 2-4 days

0

8

Echo V100000190

GASKET, CYLINDER

$2.49

$

In Stock, Qty 20+

0

9

Echo P021010260

PISTON KIT

Note: Includes ITEMS 10-13

$43.99

$

In Stock, only 1 left!

0

10

Echo A101000140

RING, PISTON

$6.49

$

In Stock, Qty 14

0

11

Echo V606000000

PIN, PISTON 5×8×28

$6.49

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 7

0

13

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

14

Echo A011000371

CRANKSHAFT ASSY

$110.99

$

Usually ships in 2-4 days

0

15

Echo V553000010

BEARING, NEEDLE 8

$9.99

$

In Stock, only 2 left!

0

16

Echo P021008231

CRANKCASE KIT

Note: Includes ITEMS 17-21

$114.99

$

Usually ships in 2-4 days

0

17

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 19

0

18

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 6

0

19

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

20

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

21

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

22

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 14

0

23

Echo P021012350

GASKET KIT

$28.99

$

Usually ships in 2-4 days

0
