PB-255 - Echo Handheld Blower (SN: P09112001001 - P09112999999) Fuel System S/N: P09112025751 - P09112999999 Parts Diagram

Handheld Blower

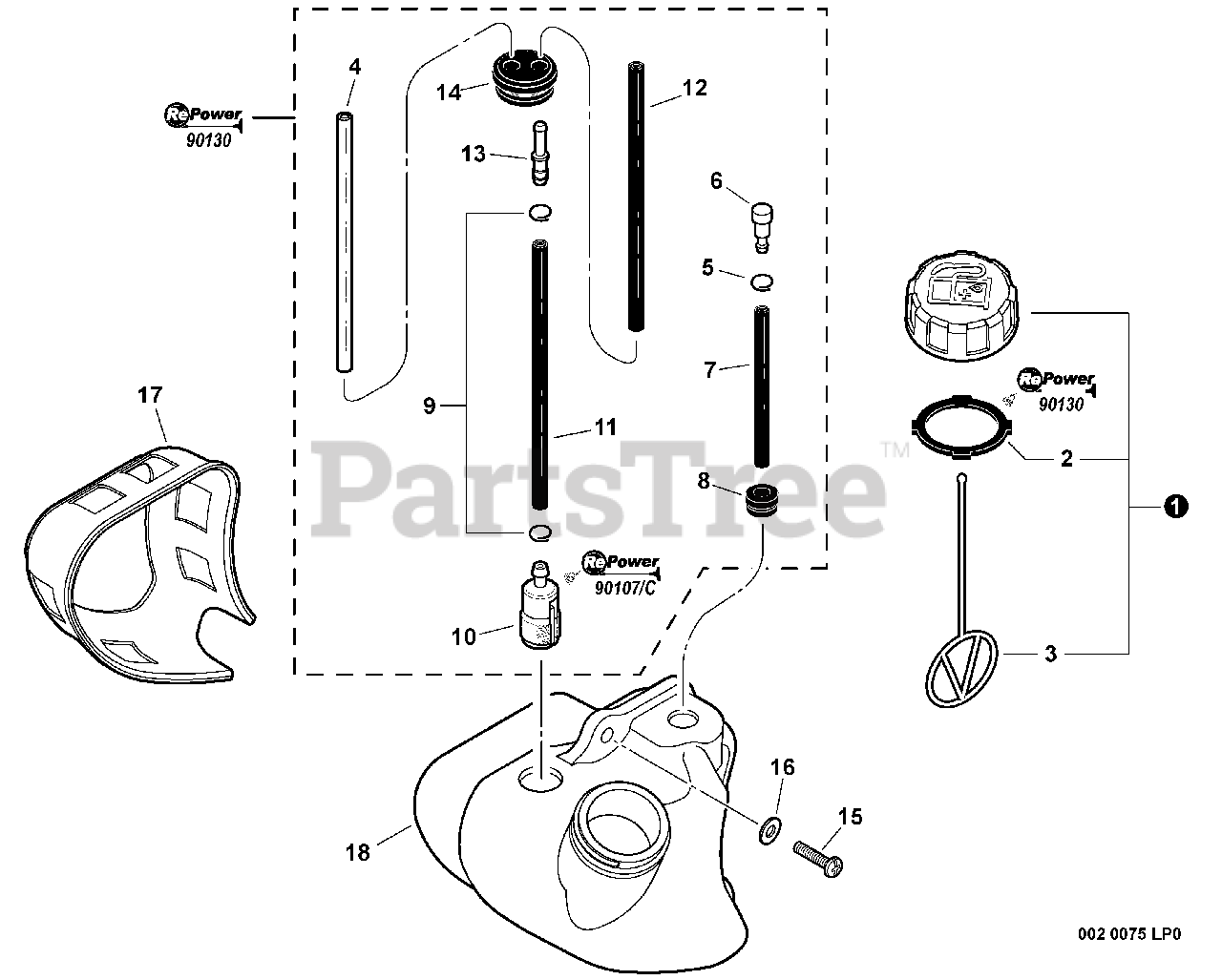

Fuel System S/N: P09112025751 - P09112999999 Parts Diagram

  • Title
1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$6.49

$

In Stock, Qty 9

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201049730

PIPE - 3X6X85 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 5

0

5

Echo V490001240

CLIP - 6

$0.99

$

Usually ships in 2-4 days

0

6

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

7

Echo V471001220

PIPE - 3X5X50 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 18

0

8

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

9

Echo V490001240

CLIP - 6

$0.99

$

Usually ships in 2-4 days

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

12

Echo V471003600

PIPE - 3X5X87 -- BLACK
(Superseded to V471005660)

Note: RePower BULK OPTION: N/A

$3.99

$

In Stock, Qty 10

0

13

Echo V186000520

CONNECTOR, PIPE

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

14

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

15

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo V420001430

GUARD, FUEL TANK

$1.99

$

In Stock, Qty 5

0

18

Echo A350000760

TANK, FUEL
(Superseded to A350002550)

$29.99

$

Usually ships in 2-4 days

0

19

Echo 90130

RePower FUEL SYSTEM KIT
(Superseded to 90130Y)

$27.99

$

In Stock, only 1 left!

0

20

Echo 90107

RePower TUNE-UP KIT
(Superseded to 90154)

$23.99

$

In Stock, only 2 left!

0

20

Echo 90107C

RePower TUNE-UP KIT
(Superseded to 90154)

Note: CANADA MODELS

$23.99

$

In Stock, only 2 left!

0
