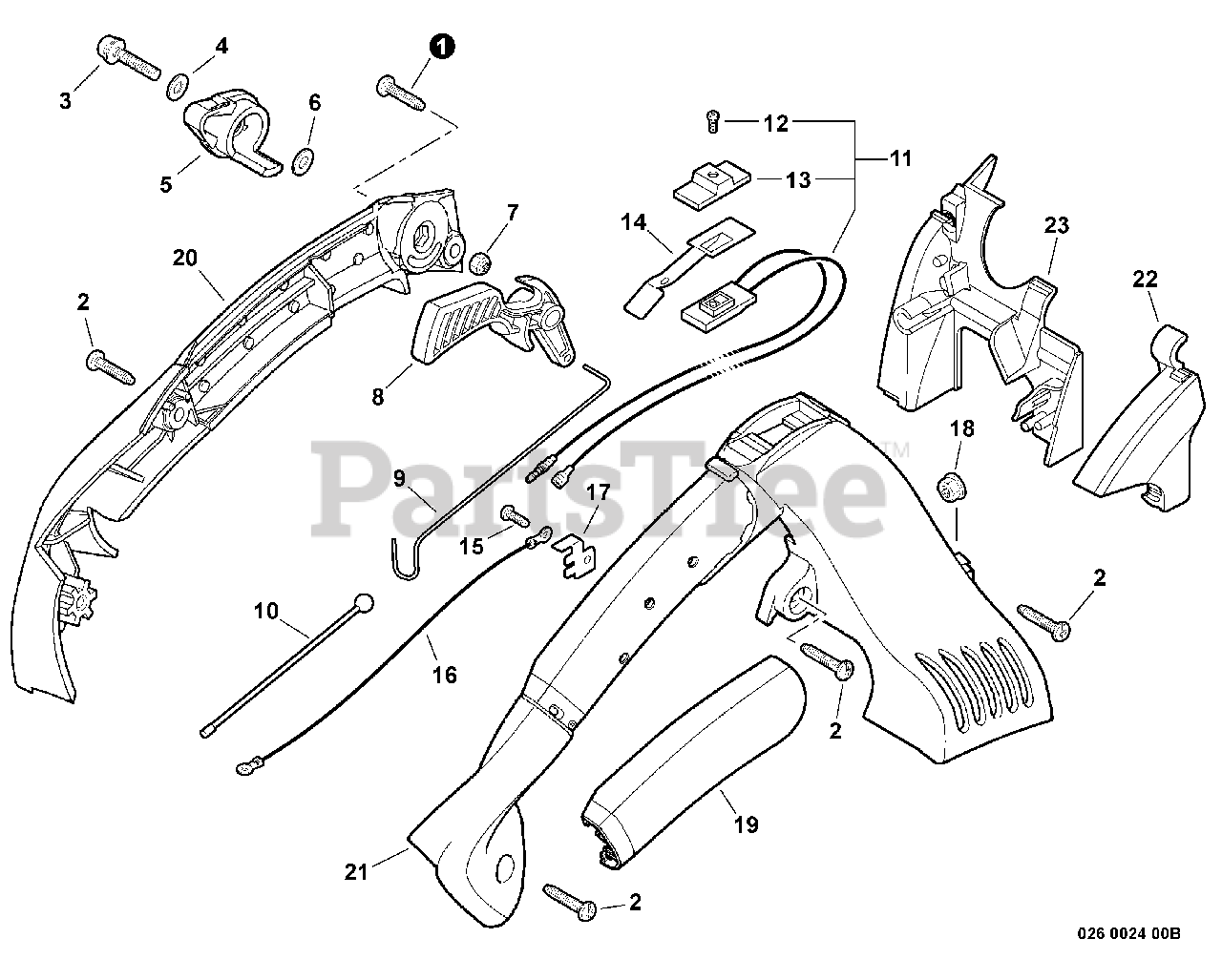

PB-255 - Echo Handheld Blower (SN: P09112001001 - P09112999999) Control Handle, Switch, Throttle Cable Parts Diagram

Handheld Blower

Control Handle, Switch, Throttle Cable Parts Diagram

  • Title
1

Echo 90025305025

SCREW - 5X20 -- TAPPING

$1.49

$

Usually ships in 2-4 days

0

2

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

5

Echo C453000260

LEVER, THROTTLE

$6.49

$

In Stock, only 1 left!

0

6

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo C450000241

TRIGGER, THROTTLE

$1.99

$

In Stock, only 2 left!

0

9

Echo C454000130

ROD, THROTTLE
(Superseded to C454000131)

$3.99

$

Usually ships in 2-4 days

0

10

Echo V431000000

CABLE, THROTTLE

$1.99

$

In Stock, Qty 20+

0

11

Echo A440001010

IGNITION SWITCH ASSY
(Superseded to P021045330)

Note: Includes ITEMS 12-13

$9.99

$

In Stock, only 1 left!

0

12

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

13

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

14

Echo V486000110

TERMINAL - GROUND

$1.99

$

Usually ships in 2-4 days

0

15

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

16

Echo V485000370

LEAD - GROUND

$1.99

$

Usually ships in 2-4 days

0

17

Echo V486000120

TERMINAL - GROUND

$1.49

$

Usually ships in 2-4 days

0

18

Echo V263000070

NUT - 5 -- FLANGE

$0.99

$

In Stock, only 4 left!

0

19

Echo C412000150

GRIP, HANDLE

$4.99

$

In Stock, only 2 left!

0

20

Echo C411000021

HANDLE, CONTROL - LEFT
(Superseded to C411000022)

$18.99

$

In Stock, only 2 left!

0

21

Echo C400000490

HANDLE, CONTROL - RIGHT

$33.99

$

In Stock, only 1 left!

0

22

Echo C459000010

COVER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

23

Echo A160000830

COVER, ENGINE

$4.49

$

Usually ships in 2-4 days

0
