PB-2520 - Echo Handheld Blower (SN: P54826001001 - P54826999999) Starter Parts Diagram

Handheld Blower

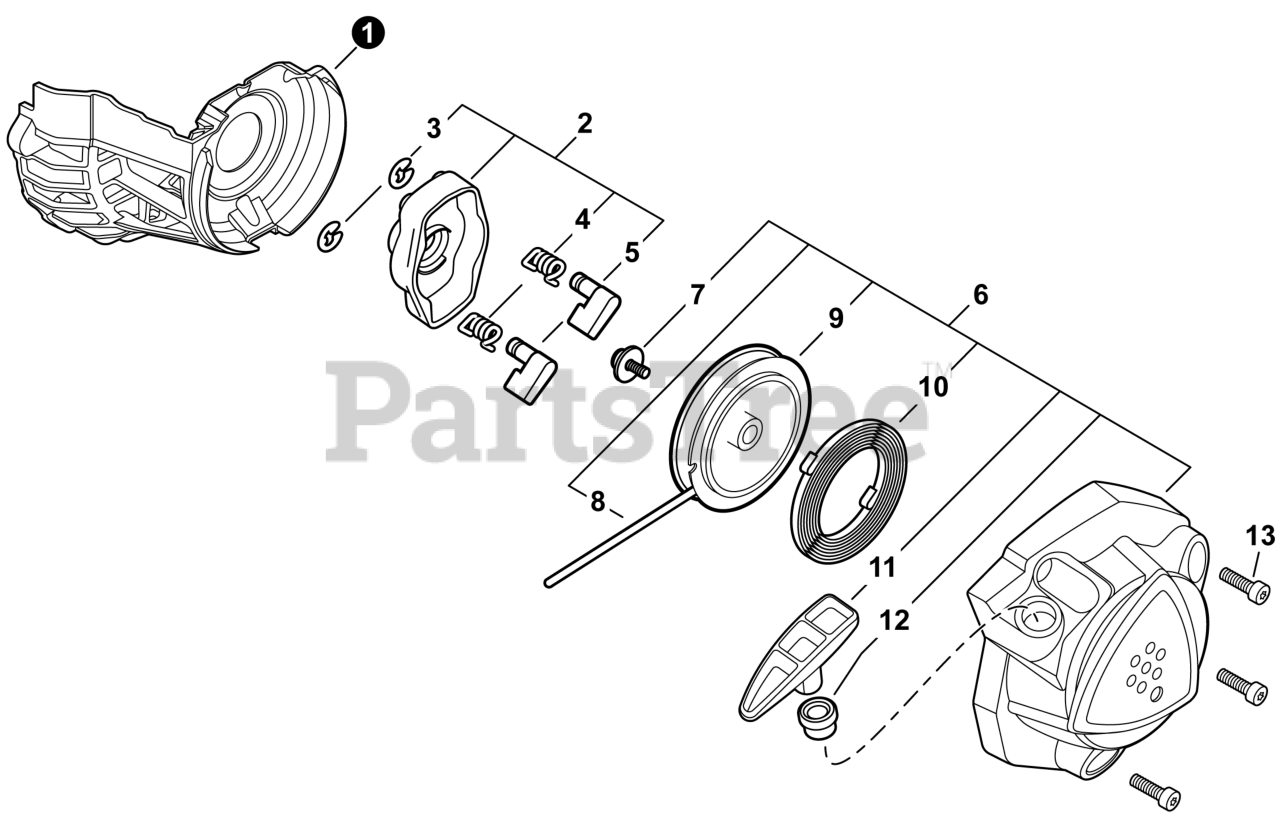

Starter Parts Diagram

  • Title
1

Echo A127000510

SHIELD, DEBRIS

$5.49

$

Usually ships in 2-4 days

0

2

Echo A052000030

PAWL ASSY, STARTER

Note: Includes items 3-5

$12.99

$

In Stock, Qty 20+

0

3

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

4

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

5

Echo P022003120

PAWL, STARTER

$3.49

$

In Stock, Qty 6

0

6

Echo A051003310

STARTER ASSY

Note: Includes items 7-12

$49.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 1 left!

0

8

Echo P022049010

ROPE, STARTER

$7.99

$

In Stock, only 1 left!

0

9

Echo P022049000

REEL, ROPE

$7.99

$

In Stock, only 1 left!

0

10

Echo P022019680

SPRING, RECOIL

$9.99

$

In Stock, Qty 13

0

11

Echo P022036700

GRIP, STARTER

$9.49

$

In Stock, only 3 left!

0

12

Echo P022045770

GUIDE, ROPE

$3.49

$

Usually ships in 2-4 days

0

13

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0
