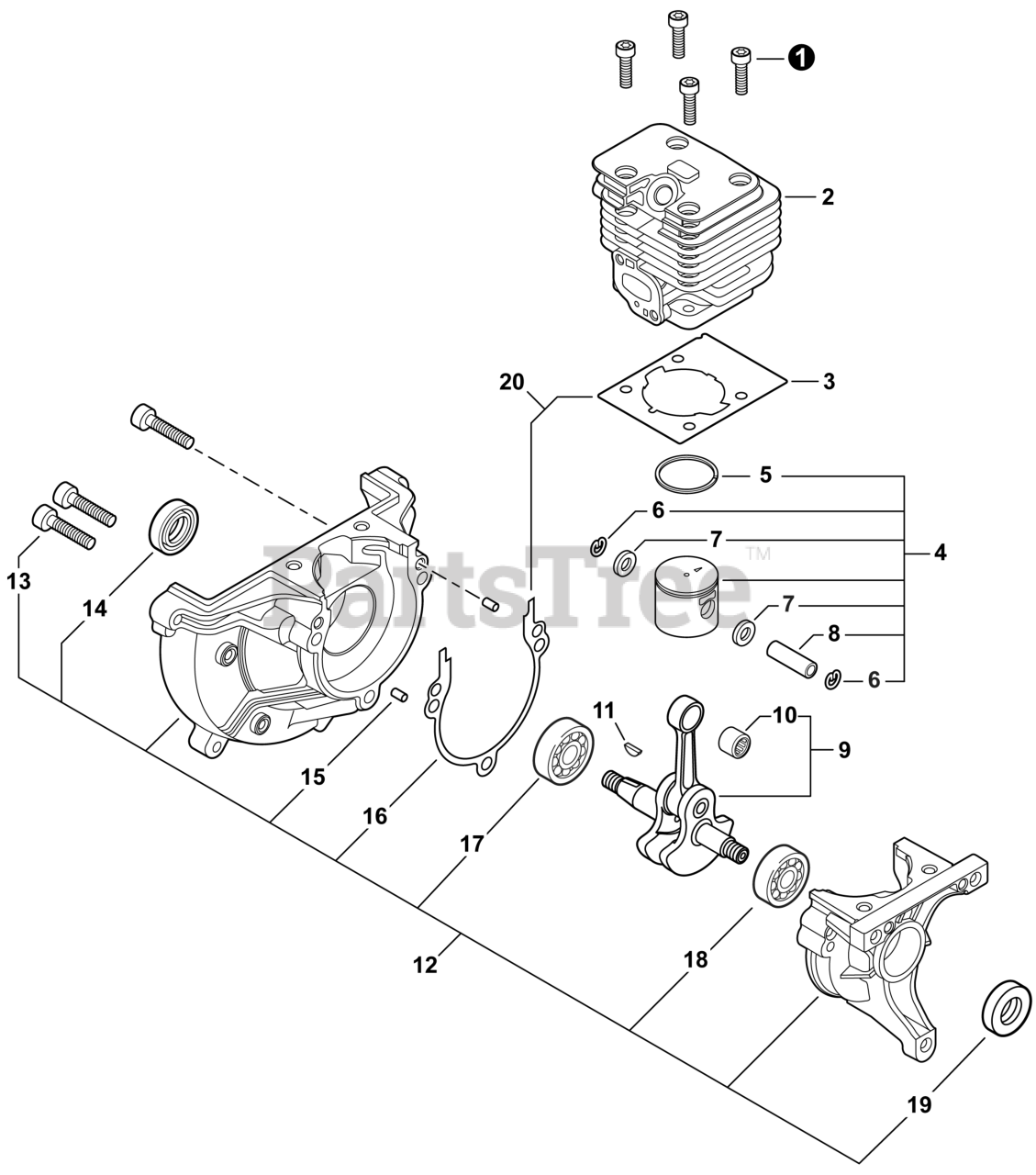

PB-2520 - Echo Handheld Blower (SN: P47815001001 - P47815999999) Engine Parts Diagram

Handheld Blower

Engine Parts Diagram

  • Title

1

Echo V805000210

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo A130002340

CYLINDER

$131.99

$

Usually ships in 2-4 days

0

3

Echo V100000860

GASKET, CYLINDER

Note: Include in Gasket Kit

$2.99

$

In Stock, only 1 left!

0

4

Echo P100003800

PISTON KIT

Note: Includes items 5-8

$64.99

$

Usually ships in 2-4 days

0

5

Echo A101000720

RING, PISTON

$10.99

$

Usually ships in 2-4 days

0

6

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 10

0

7

Echo V306000520

WASHER, THRUST

$1.99

$

Usually ships in 2-4 days

0

8

Echo 10001335430

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

9

Echo A011001510

CRANKSHAFT ASSY

Note: Includes item 10

$151.99

$

Usually ships in 2-4 days

0

10

Echo V554000030

BEARING, NEEDLE 9

$7.99

$

Usually ships in 2-4 days

0

11

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 15

0

12

Echo P100003810

CRANKCASE ASSY

Note: Includes items 13-19

$170.99

$

Usually ships in 2-4 days

0

13

Echo V805000220

BOLT, TORX 5×25

$1.49

$

In Stock, only 3 left!

0

14

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

15

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

16

Echo V102000300

GASKET, CRANKCASE

Note: Include in Gasket Kit

$1.99

$

In Stock, only 4 left!

0

17

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, Qty 6

0

18

Echo 90081036000

BEARING, BALL

$6.99

$

Usually ships in 2-4 days

0

19

Echo 10021261830

SEAL, OIL

$7.99

$

In Stock, only 2 left!

0

20

Echo P021052300

GASKET KIT

Note: See Maintenance Kits

$16.99

$

In Stock, only 1 left!

0
