PB-252 - Echo Handheld Blower (SN: P35720001001 - P35720999999) Intake Parts Diagram

Handheld Blower

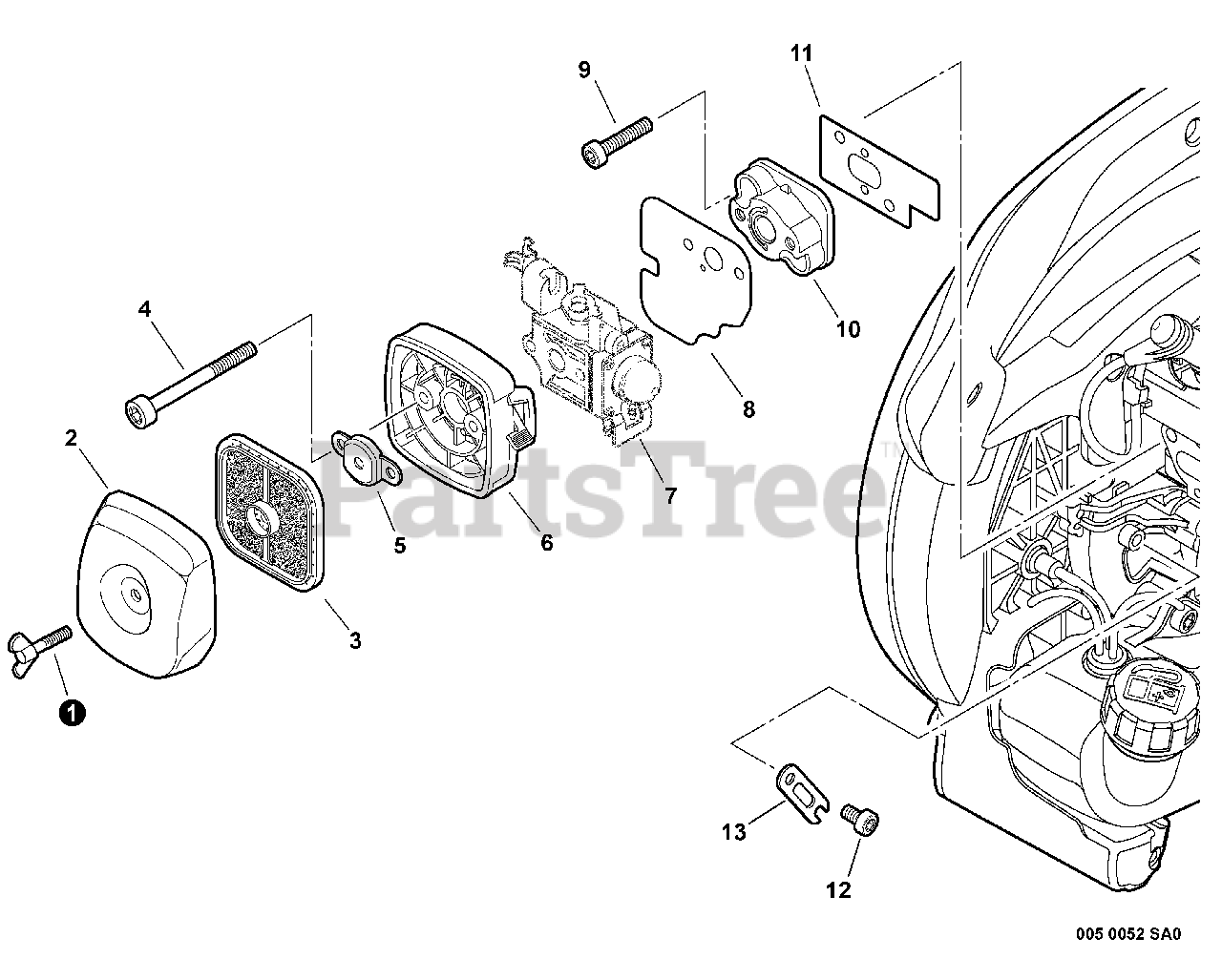

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

4

Echo V805000100

SCREW - 5X65

$1.99

$

In Stock, only 2 left!

0

5

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

6

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

7

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

8

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 6

0

9

Echo V805000220

SCREW - 5X25

$1.49

$

In Stock, only 1 left!

0

10

Echo A200000960

INSULATOR, INTAKE

$11.99

$

Usually ships in 2-4 days

0

11

Echo V103000540

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

12

Echo V805000120

SCREW - 5X8

$0.99

$

In Stock, Qty 7

0

13

Echo V150002400

PLATE

$0.99

$

Usually ships in 2-4 days

0
