PB-251 - Echo Handheld Blower (SN: P06113001001 - P06113999999) Intake Parts Diagram

Handheld Blower

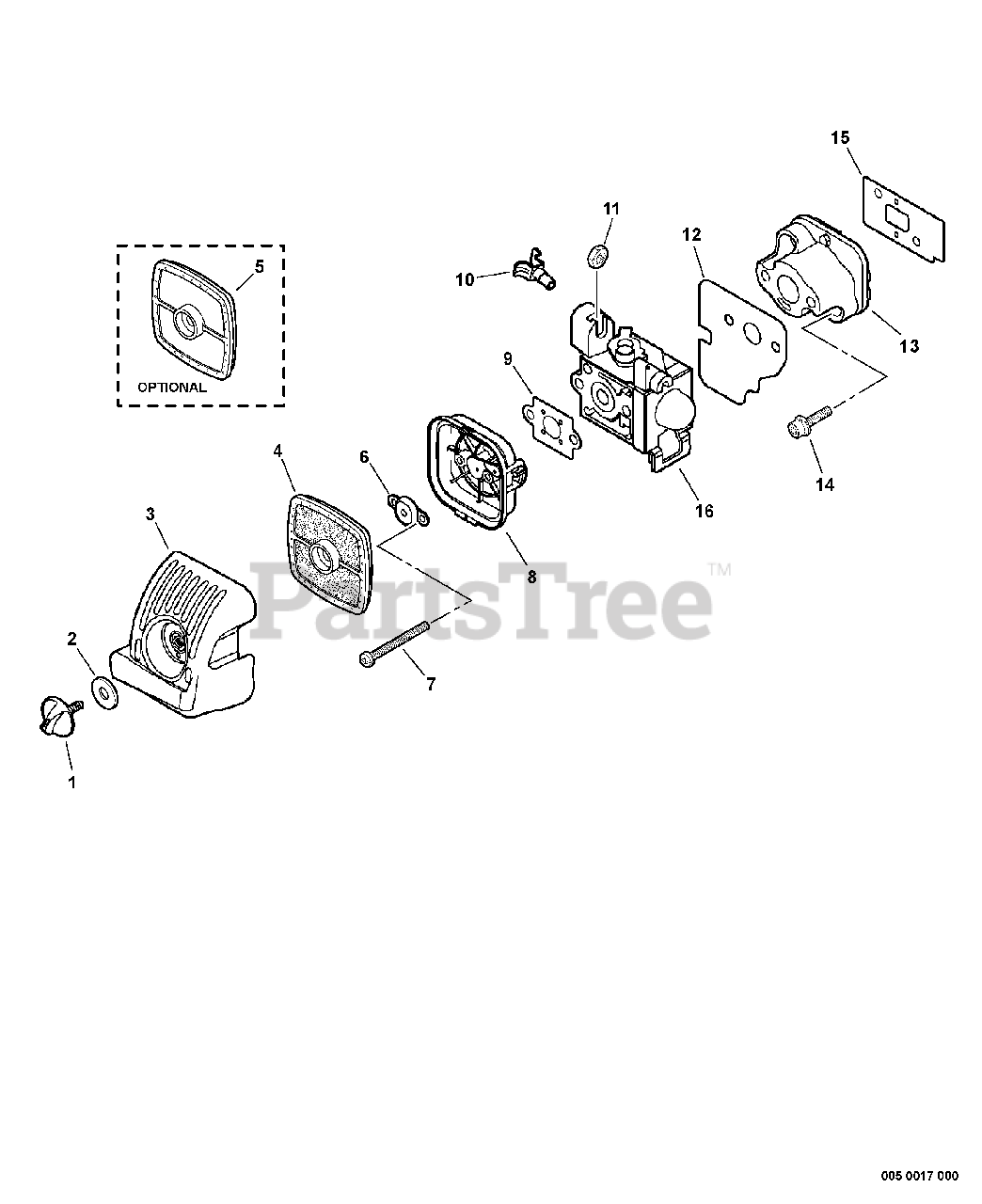

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$3.99

$

In Stock, Qty 20+

0

2

Echo 13191103460

WASHER

$0.99

$

In Stock, Qty 13

0

3

Echo A232000340

COVER, AIR FILTER

$6.49

$

In Stock, only 1 left!

0

4

Echo A226000471

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000472)

$7.99

$

In Stock, Qty 20+

0

5

Echo A226000350

FILTER, AIR - SINGLE LAYER
(Superseded to A226000351)

Note: OPTIONAL

$7.99

$

In Stock, Qty 20+

0

6

Echo A244000070

PLATE, PREVENT

$4.99

$

In Stock, Qty 20+

0

7

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

8

Echo P021010980

AIR FILTER CASE ASSY

$9.49

$

In Stock, Qty 7

0

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo C480000070

GUIDE, CABLE

$15.99

$

Usually ships in 2-4 days

0

11

Echo V264000050

NUT - 6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 7

0

13

Echo A200000280

INSULATOR, INTAKE

$7.99

$

In Stock, only 3 left!

0

14

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

15

Echo V103000390

GASKET, INTAKE

$0.99

$

In Stock, Qty 6

0

16

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
