PB-251 - Echo Handheld Blower (SN: 09001001 - 09999999) Starter Parts Diagram

Handheld Blower

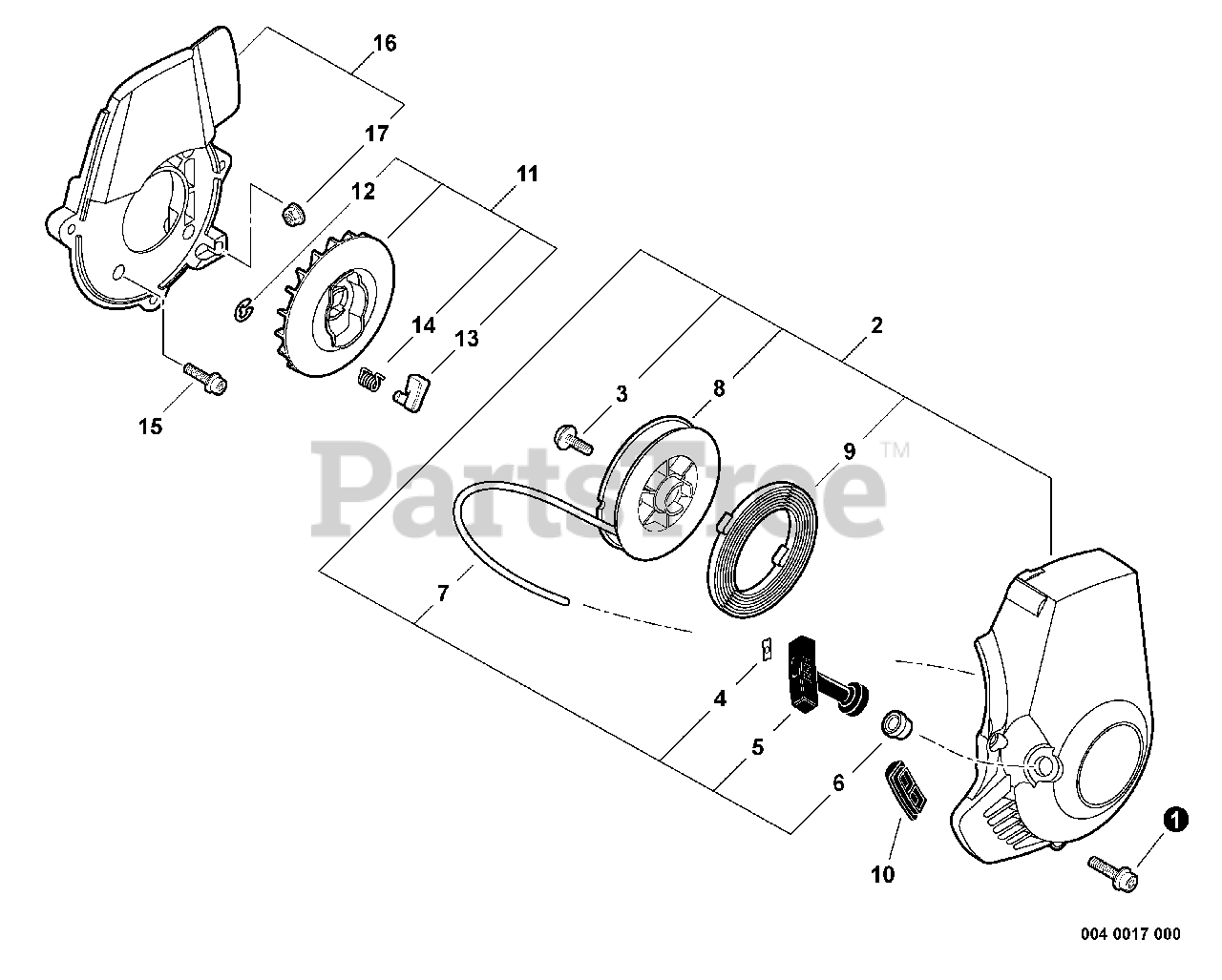

Starter Parts Diagram

  • Title

1

Echo 90010605014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

2

Echo A051001060

STARTER ASSY

Note: Includes ITEMS 3-9

$34.99

$

In Stock, Qty 9

0

3

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

4

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

5

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

6

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

7

Echo P022008260

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$

$

Not available

8

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

9

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

10

Echo V420001440

CUSHION

$1.99

$

Usually ships in 2-4 days

0

11

Echo A052000200

STARTER PAWL ASSY
(Superseded to A052000250)

Note: Includes ITEMS 12-15

$14.99

$

In Stock, only 1 left!

0

12

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

14

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

15

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

16

Echo V376000900

SPACER ASSY
(Superseded to P021013780)

Note: Includes ITEM 17

$11.99

$

Usually ships in 2-4 days

0

17

Echo V263000070

NUT - 5 -- FLANGE

$0.99

$

In Stock, only 4 left!

0
