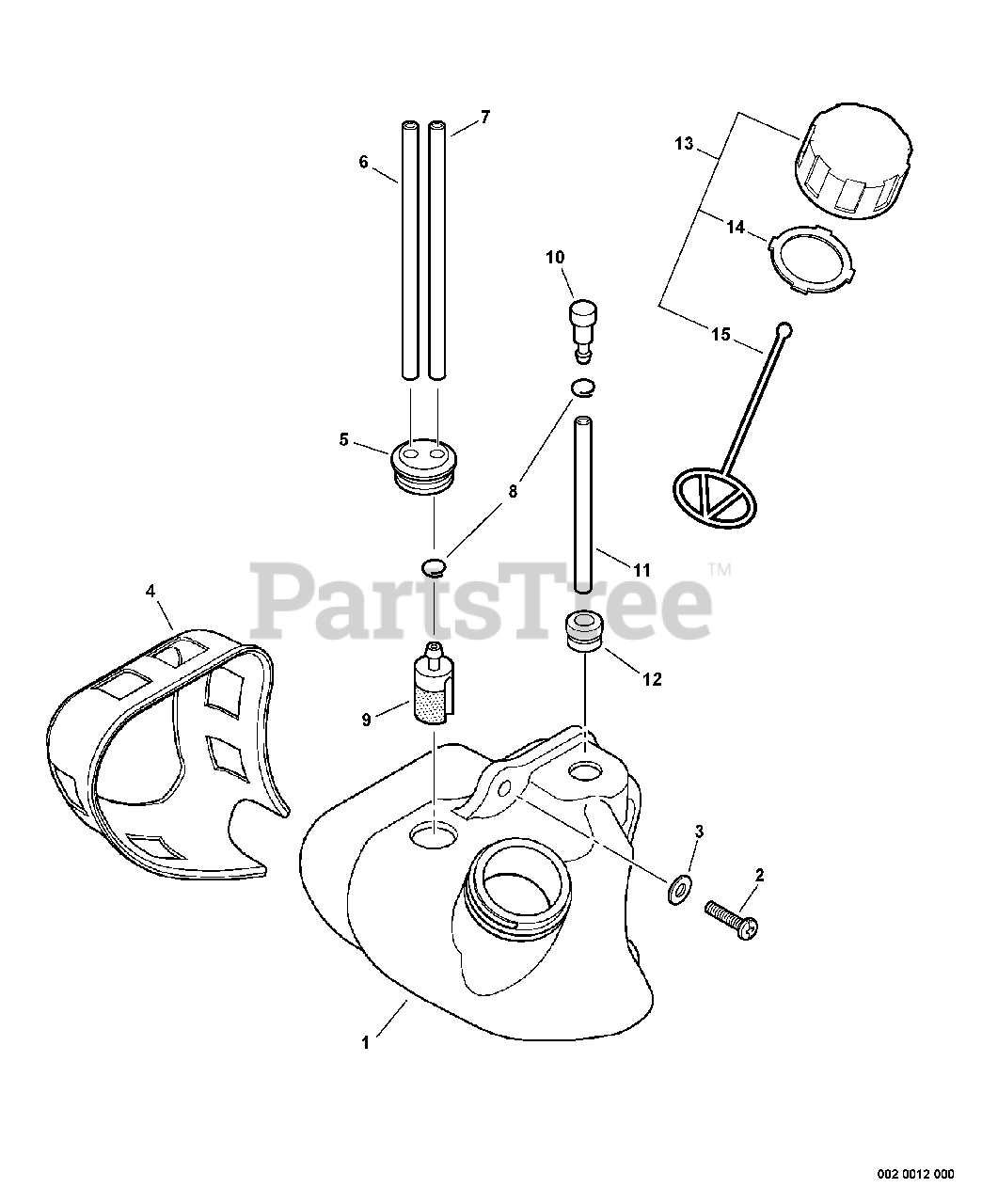

PB-251 - Echo Handheld Blower (SN: 09001001 - 09999999) Fuel System Parts Diagram

Handheld Blower

Fuel System Parts Diagram

  • Title

1

Echo A350000510

TANK, FUEL
(Superseded to A350000550)

$29.99

$

Usually ships in 2-4 days

0

2

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo V420001430

GUARD, FUEL TANK

$1.99

$

In Stock, Qty 5

0

5

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201049730

PIPE - 3X6X85 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, only 3 left!

0

7

Echo V471001860

PIPE - 3X5X175 -- BLACK

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

11

Echo V471001220

PIPE - 3X5X50 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 18

0

12

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 15

0

13

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 14-15

$6.49

$

In Stock, Qty 7

0

14

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

15

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
