PB-250 LN - Echo Handheld Blower (SN: P39926001001 - P39926999999) Fuel System Parts Diagram

Handheld Blower

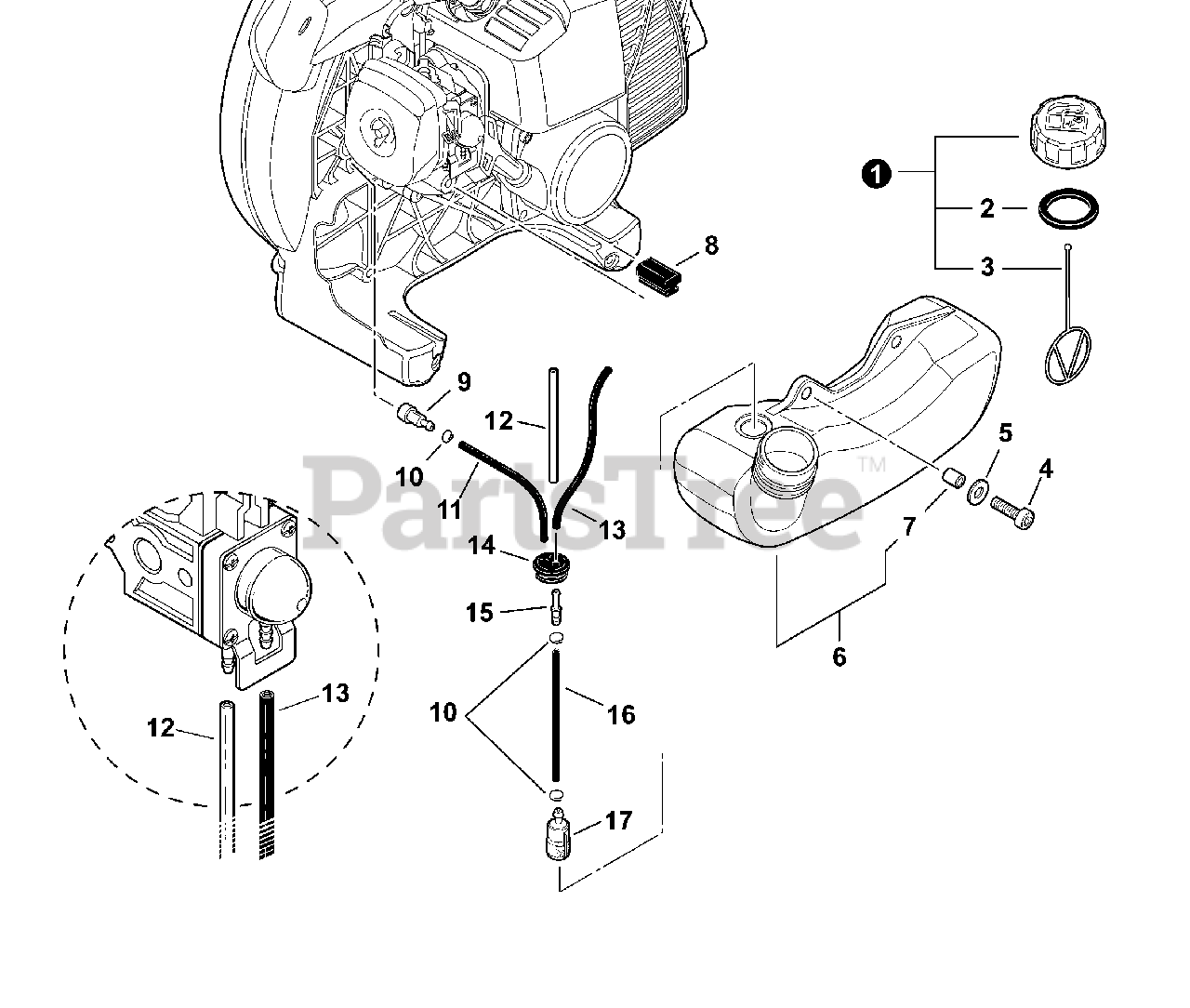

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes Items 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

4

Echo V805000150

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes Item 7

$24.99

$

In Stock, only 1 left!

0

7

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

8

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

9

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP - 6

$0.99

$

Usually ships in 2-4 days

0

11

Echo 13201204631

PIPE - 3×6×80 -- BLACK

$

$

Not available

12

Echo 13201049730

PIPE - 3×6×85 -- CLEAR

$2.49

$

In Stock, Qty 5

0

13

Echo V471003590

PIPE - 3×5×78 -- BLACK
(Superseded to V471005630)

$3.49

$

In Stock, only 1 left!

0

14

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 16

0

15

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

16

Echo V471003700

PIPE - 3×5×130 -- BLACK

$1.49

$

In Stock, only 2 left!

0

17

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0
