PB-250 LN - Echo Handheld Blower (SN: P34913001001 - P34913999999) Fuel System Parts Diagram

Handheld Blower

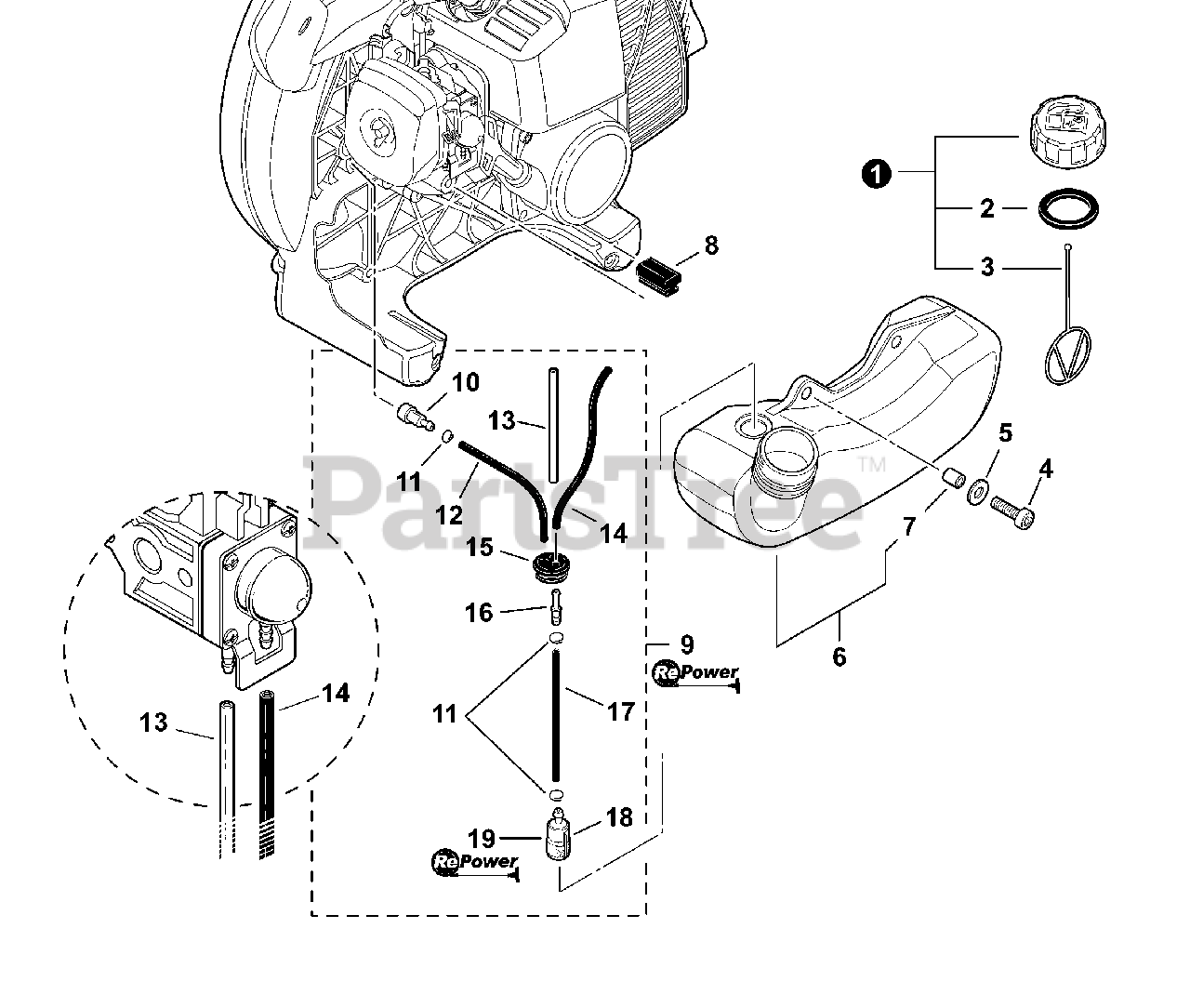

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes Items 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

4

Echo V805000150

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes Item 7

$24.99

$

In Stock, only 3 left!

0

7

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

8

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

9

Echo 90129BP

RePower FUEL SYSTEM KIT
(Superseded to 90129)

Note: Includes Items 10-18

$23.99

$

In Stock, only 4 left!

0

10

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 18

0

12

Echo 13201204631

PIPE - 3×6×80 -- BLACK

$

$

Not available

13

Echo 13201049730

PIPE - 3×6×85 -- CLEAR

$2.49

$

In Stock, only 3 left!

0

14

Echo V471003590

PIPE - 3×5×78 -- BLACK
(Superseded to V471005630)

$3.49

$

In Stock, only 1 left!

0

15

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 20+

0

16

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

17

Echo V471003700

PIPE - 3×5×130 -- BLACK

$1.49

$

In Stock, only 4 left!

0

18

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

19

Echo 90152

RePower TUNE-UP KIT
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0
