PB-250 - Echo Handheld Blower (SN: P30911001001 - P30911999999) Fuel System Parts Diagram

Handheld Blower

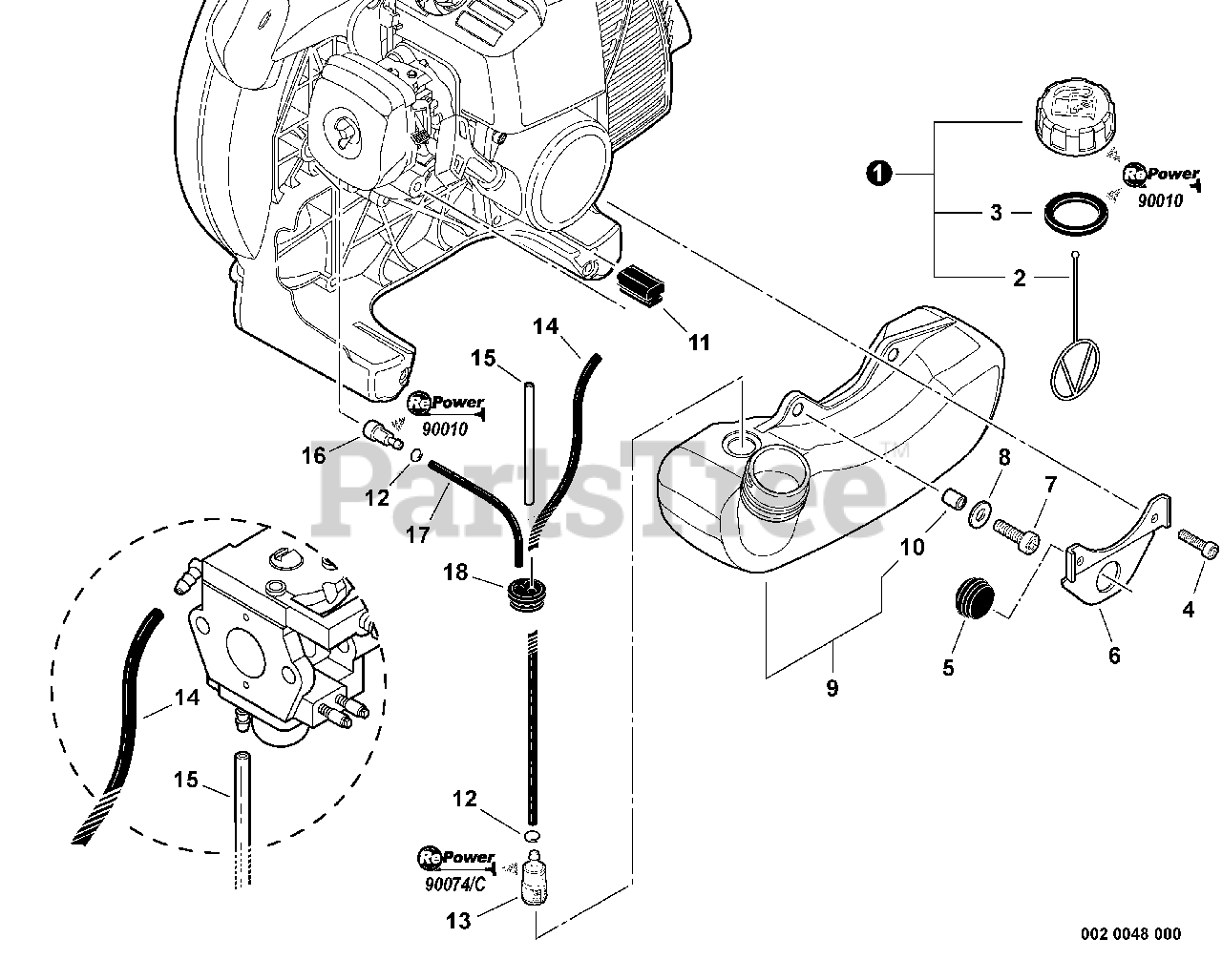

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$6.49

$

In Stock, Qty 9

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo V804000060

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

5

Echo V420000910

CUSHION

$1.49

$

In Stock, only 3 left!

0

6

Echo V152002220

BRACKET, FUEL TANK

$3.49

$

In Stock, Qty 11

0

7

Echo V805000150

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

8

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes ITEM 10

$24.99

$

In Stock, only 2 left!

0

10

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

11

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

12

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

14

Echo V471002170

PIPE - 3X5X230 -- BLACK

Note: RePower BULK OPTION: 90014

$4.49

$

In Stock, only 2 left!

0

15

Echo 13201049730

PIPE - 3X6X85 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 5

0

16

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

17

Echo 13201204631

PIPE - 3X6X80 -- BLACK

Note: RePower BULK OPTION: 90015

$

$

Not available

18

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 19

0

19

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

20

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 7

0

20

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 7

0
