PB-2400 - Echo Handheld Blower (Type 1) Carburetor WT-417 Parts Diagram

Handheld Blower (Type 1)

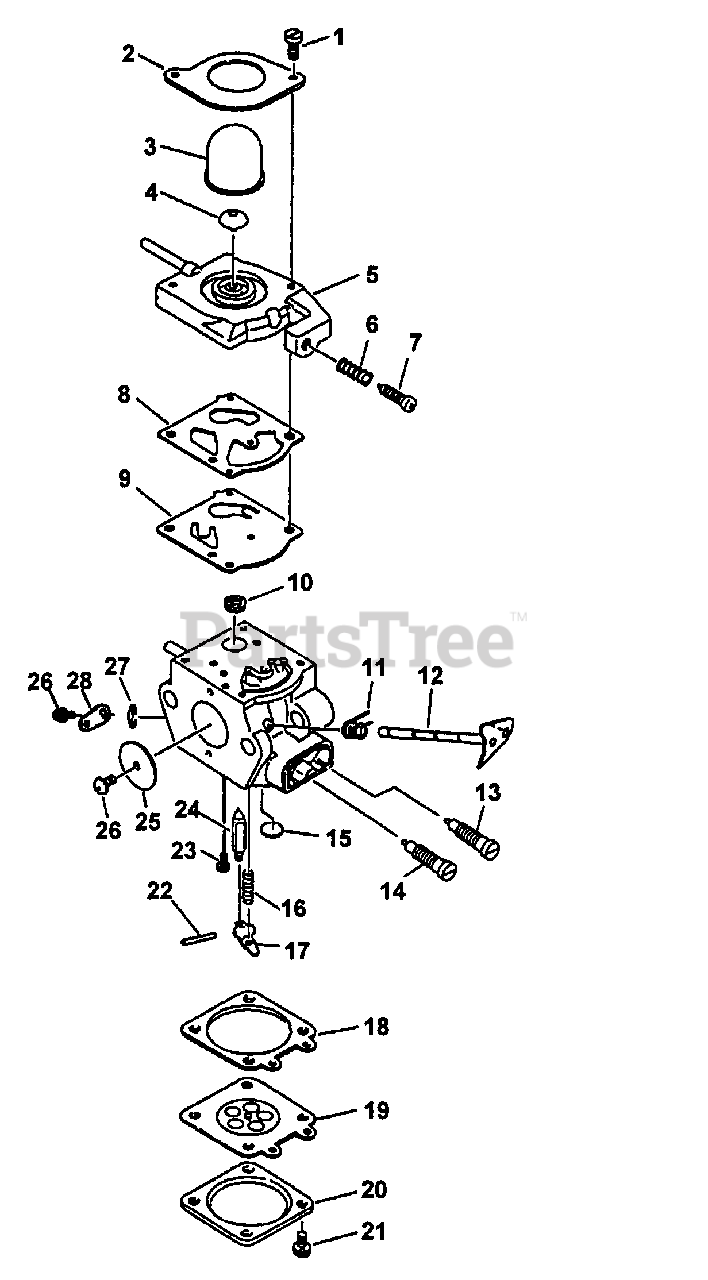

Carburetor WT-417 Parts Diagram

  • Title

Echo 12300009661

CARBURETOR WT-417
(Superseded to 12300009662)

Note: INCLUDES ITEMS 1 - 28

$90.99

$

In Stock, only 1 left!

0

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312409660

COVER, PUMP

$10.99

$

Usually ships in 2-4 days

0

6

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

8

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310009660 AND IN GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

9

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310009660 AND IN GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

10

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

11

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

12

Echo 12311709660

SHAFT, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

13

Echo 12312009460

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12311803660

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

15

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

16

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

17

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

18

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660 AND IN GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

19

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660 AND IN GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

20

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

21

------------------

SCREW, METERING COVER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

22

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

23

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

24

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

25

Echo 12311623230

VALVE, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

26

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

27

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

28

Echo 12315038330

LEVER, THROTTLE

$

$

Not available

Echo 12310009660

REPAIR KIT

$

$

Not available

Echo 12310109660

DIAPHRAGM/GASKET KIT
(Superseded to 12310151430)

$7.49

$

Usually ships in 2-4 days

0
