PB-24 LN - Echo Handheld Blower (Type 1E) Intake, Air Cleaner, Exhaust Parts Diagram

Handheld Blower (Type 1E)

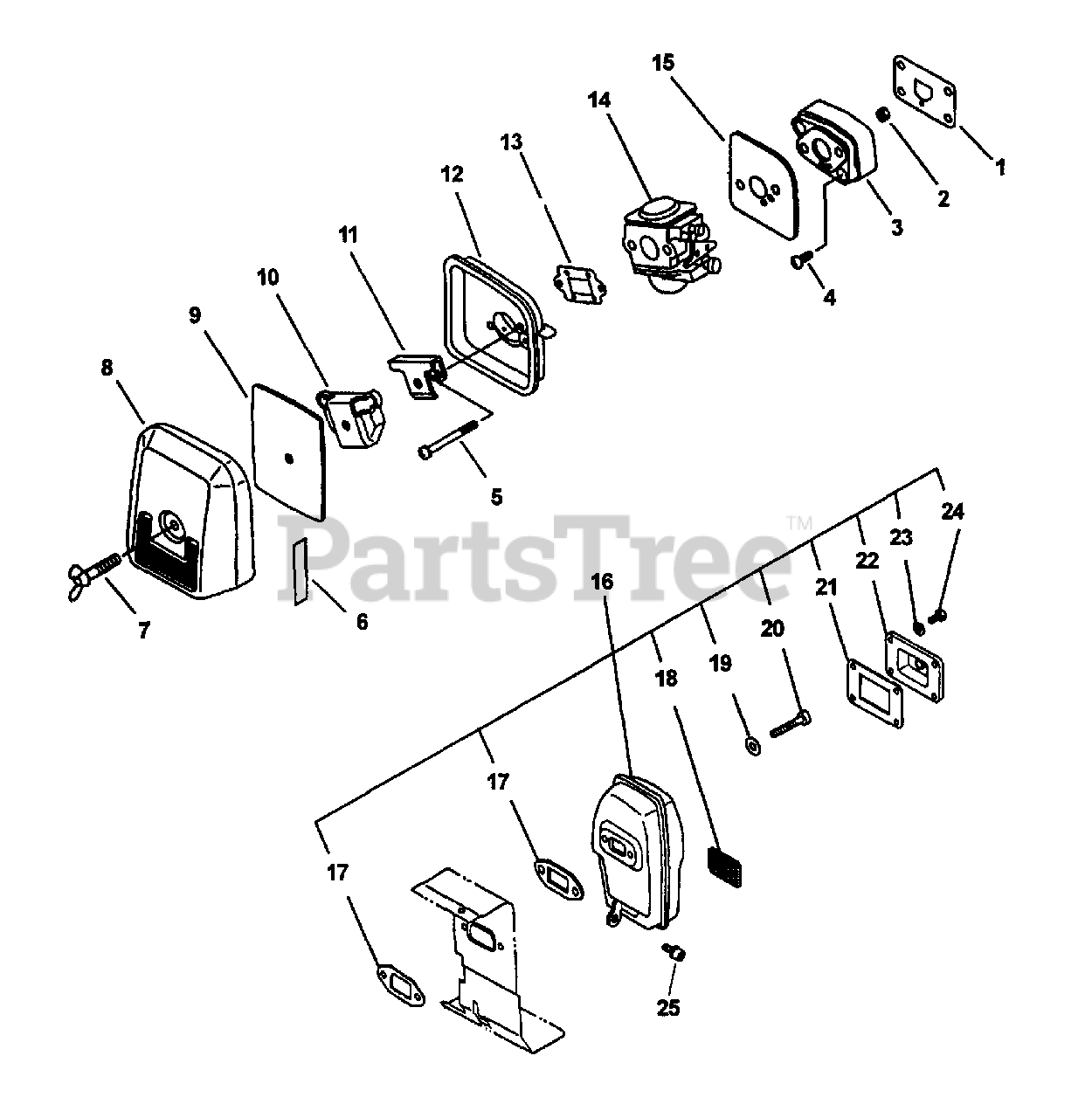

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo 13001009561

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT P/N 88900009660

$2.99

$

In Stock, only 2 left!

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001705062

INSULATOR, INTAKE

$6.49

$

Usually ships in 2-4 days

0

4

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 12

0

5

Echo 90024105055

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

6

Echo 89012109660

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 21041709560

THUMBSCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo 13031309561

COVER, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

9

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: INCLUDED IN REPOWER FILTRATION KIT P/N 90030

$7.49

$

In Stock, Qty 20+

0

10

Echo 12901109560

PLATE, PREVENT

$5.49

$

Usually ships in 2-4 days

0

11

Echo 13042209660

PLATE, PREVENT

$5.99

$

Usually ships in 2-4 days

0

12

Echo 13030709660

AIR FILTER CASE ASSY
(Superseded to 13030709661)

$

$

Not available

13

Echo 10158609660

SPACER

$3.99

$

In Stock, only 1 left!

0

14

Echo 12300009662

CARBURETOR WT-417
(Superseded to 12300009663)

$90.99

$

In Stock, only 1 left!

0

15

Echo 13001609561

GASKET, INTAKE

Note: INCLUDED IN GASKET KIT P/N 88900009660

$2.99

$

Usually ships in 2-4 days

0

16

Echo 14580009660

MUFFLER ASSY

Note: Includes ITEMS 17 - 24

$59.99

$

Usually ships in 2-4 days

0

17

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT P/N 88900009660

$0.99

$

In Stock, Qty 16

0

18

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

19

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

21

Echo 14586609660

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT P/N 88900009660

$5.99

$

Usually ships in 2-4 days

0

22

Echo 14580909660

GUIDE, EXHAUST

$12.99

$

Usually ships in 2-4 days

0

23

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

24

Echo 90011504012

SCREW - 4X12
(Superseded to 90018204008)

$

$

Not available

25

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

Echo 88900009660

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 1, 15, 17 & 21

$

$

Not available

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

Note: Includes ITEM 9

$18.99

$

In Stock, Qty 12

0
