PB-230 LN - Echo Handheld Blower (SN: P09212001001 - P09212999999) Fuel System Parts Diagram

Handheld Blower

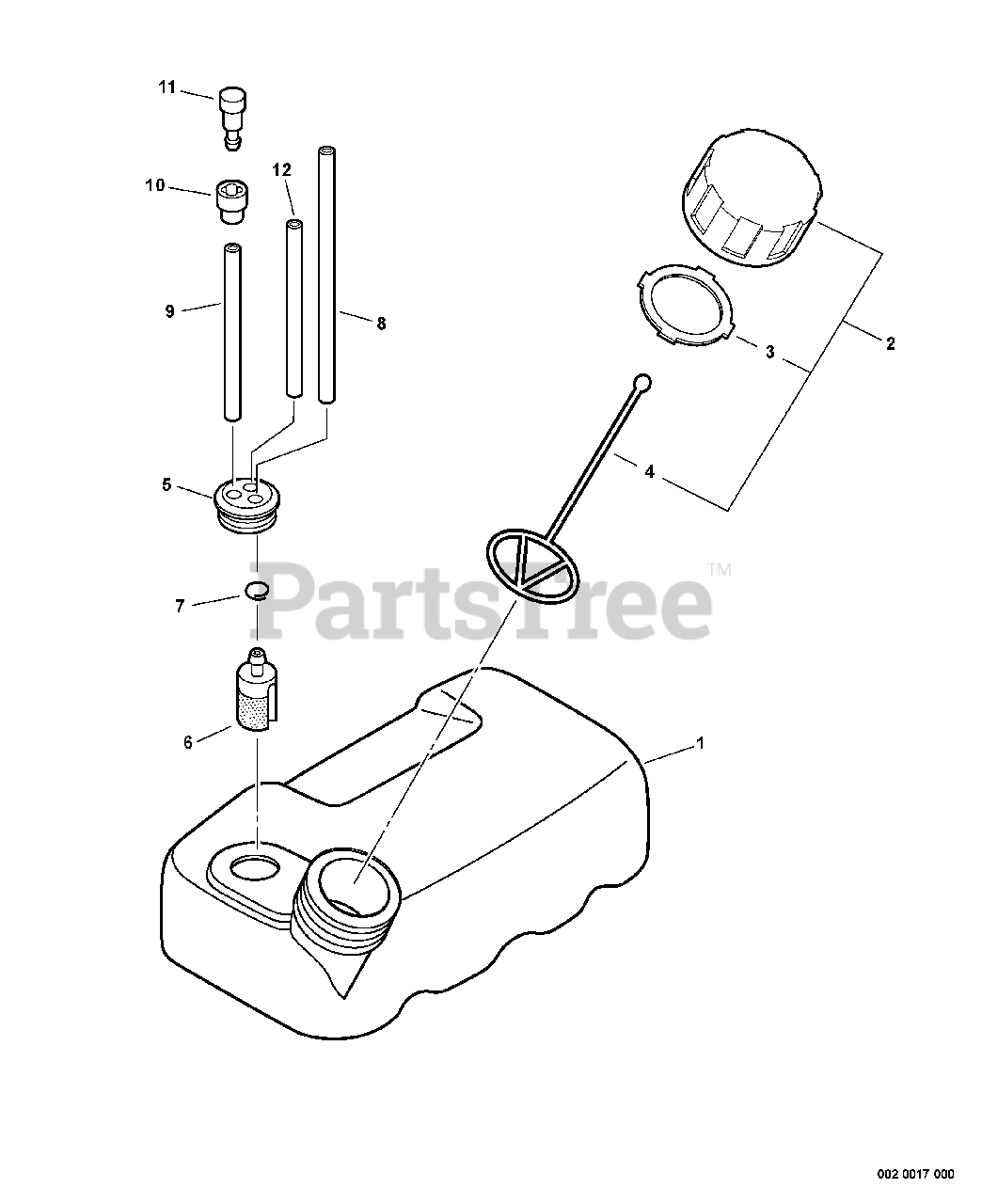

Fuel System Parts Diagram

  • Title

1

Echo A350000023

TANK, FUEL
(Superseded to A350000650)

$21.99

$

Usually ships in 2-4 days

0

2

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 3-4

$6.49

$

In Stock, only 2 left!

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

7

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 43721015130

PIPE - 3X6X200 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

Usually ships in 2-4 days

0

9

Echo 43721720760

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720761)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, only 1 left!

0

10

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

11

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

12

Echo 13201014010

PIPE - 3X6X100 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 11

0

13

Echo 90075

RePower TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 6

$18.99

$

In Stock, Qty 12

0

14

Echo 90075C

RePower TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 6

$18.99

$

In Stock, Qty 12

0
