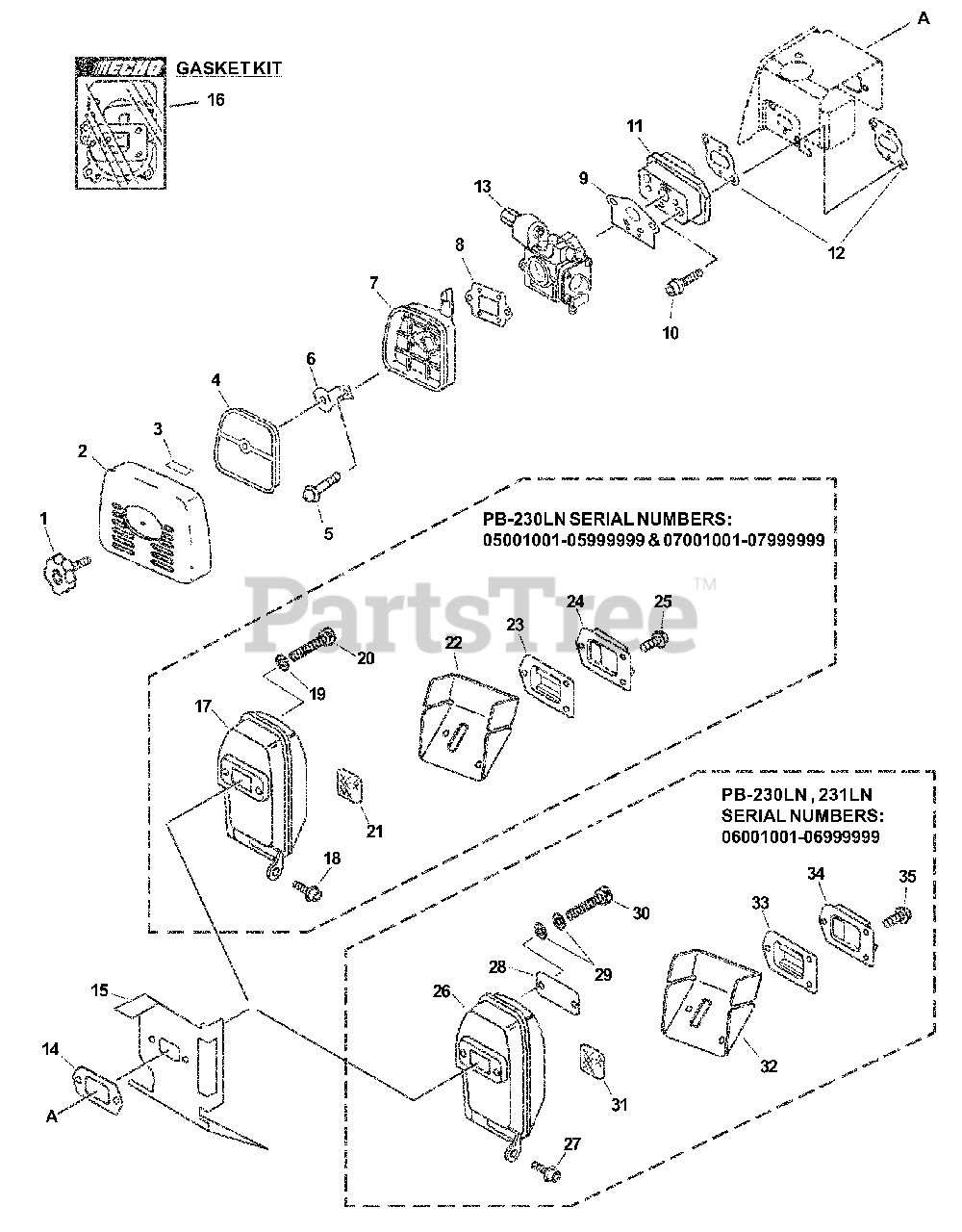

PB-230 LN - Echo Handheld Blower (SN: 07001001 - 07999999) Intake, Exhaust Parts Diagram

Handheld Blower

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

2

Echo A232000120

COVER, AIR FILTER

$9.49

$

In Stock, Qty 8

0

3

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

3

Echo 89033252730

LABEL - CHOKE

Note: CANADA MODELS: 07001001-07999999

$1.49

$

In Stock, Qty 10

0

4

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

6

Echo 12901157731

PLATE, PREVENT

$5.49

$

In Stock, Qty 14

0

7

Echo 13030757730

CASE, AIR FILTER

$12.99

$

In Stock, Qty 17

0

8

Echo 10158609660

SPACER

$3.99

$

In Stock, only 1 left!

0

9

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

10

Echo 90010605025

SCREW - 5X25

$0.99

$

In Stock, only 4 left!

0

11

Echo A200000021

INSULATOR, INTAKE

$15.99

$

Usually ships in 2-4 days

0

12

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

13

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

14

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

15

Echo V104000310

SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0

16

Echo P021003890

GASKET KIT
(Superseded to P021003891)

$41.99

$

Usually ships in 2-4 days

0

17

Echo A300000090

MUFFLER
(Superseded to Discontinued)

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$

$

Not available

18

Echo 90016205016

SCREW - 5X16

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$1.49

$

In Stock, Qty 20+

0

19

Echo 90060000005

WASHER - 5

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$0.99

$

In Stock, Qty 20+

0

20

Echo 90010505060

SCREW - 5X60

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$2.49

$

In Stock, Qty 17

0

21

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$1.99

$

In Stock, only 2 left!

0

22

Echo V104000350

GASKET, EXHAUST
(Superseded to Discontinued)

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999; Also Included In GASKET KIT

$

$

Not available

23

Echo A313000140

GUIDE, EXHAUST - INNER

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$3.99

$

Usually ships in 2-4 days

0

24

Echo A313000080

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$

$

Not available

25

Echo 90024204010

SCREW - 4X10

Note: PB-230LN PB-230LN S/N: 05001001-05999999 & 07001001-07999999

$0.99

$

In Stock, Qty 13

0

26

Echo A300000110

MUFFLER

Note: PB-230LN, 231LN S/N: 06001001-06999999

$90.99

$

Usually ships in 2-4 days

0

27

Echo 90016205016

SCREW - 5X16

Note: PB-230LN, 231LN S/N: 06001001-06999999

$1.49

$

In Stock, Qty 20+

0

28

Echo V150000371

PLATE

Note: PB-230LN, 231LN S/N: 06001001-06999999

$1.49

$

In Stock, Qty 9

0

29

Echo V347000000

WASHER - CONICAL

Note: PB-230LN, 231LN S/N: 06001001-06999999

$0.99

$

In Stock, Qty 12

0

30

Echo 9110005065

BOLT - 5X65

Note: PB-230LN, 231LN S/N: 06001001-06999999

$0.99

$

In Stock, Qty 20+

0

31

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: PB-230LN, 231LN S/N: 06001001-06999999

$1.99

$

In Stock, only 2 left!

0

32

Echo V104000350

GASKET, EXHAUST
(Superseded to Discontinued)

Note: PB-230LN, 231LN S/N: 06001001-06999999; Also Included In GASKET KIT

$

$

Not available

33

Echo A313000110

GUIDE, EXHAUST - INNER

Note: PB-230LN, 231LN S/N: 06001001-06999999

$

$

Not available

34

Echo A313000070

GUIDE, EXHAUST

Note: PB-230LN, 231LN S/N: 06001001-06999999

$12.99

$

Usually ships in 2-4 days

0

35

Echo 9136704012

SCREW - 4X12

Note: PB-230LN, 231LN S/N: 06001001-06999999

$0.99

$

In Stock, Qty 20+

0
