PB 22H54 YT (960420029-00) - Poulan Pro Lawn Tractor (2006-01) Chassis Parts Diagram

Lawn Tractor

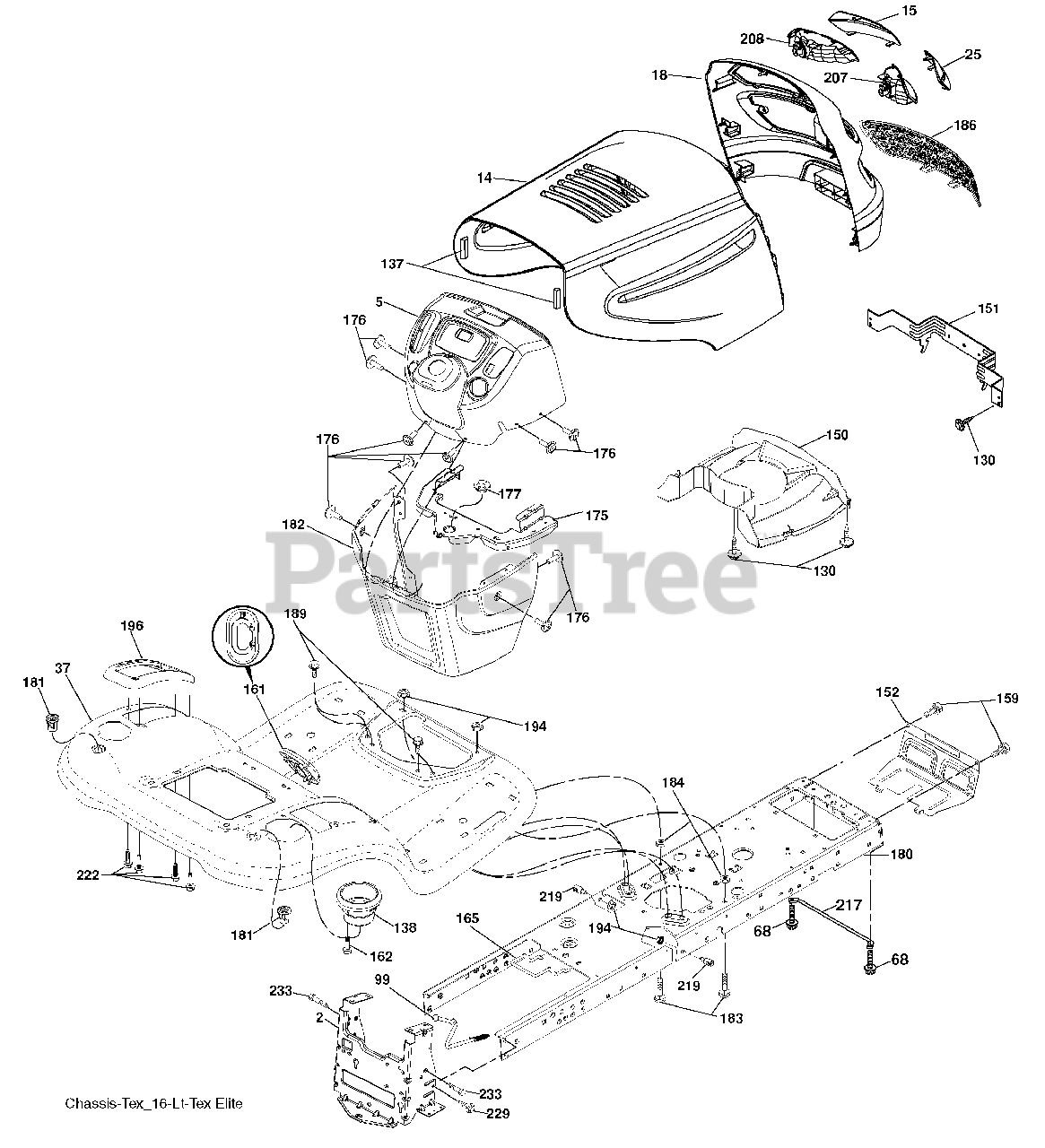

Chassis Parts Diagram

  • Title

2

Electrolux/AYP 194263

Drawbar
(Superseded to 532194263)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 199648X428

Dash
(Superseded to 583728001)

$47.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 183393X428

Hood
(Superseded to 532194588)

$78.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 183834X599

Lens Grille LH
(Superseded to 183834599)

$

$

Not available

18

Electrolux/AYP 183828

Grille
(Superseded to 583170701)

Note: (Included Key #'s 15,25,191)

$

$

Not available

25

Electrolux/AYP 183835X599

Lens Grille RH
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 401120X428

Fender
(Superseded to 583939701)

$250.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 403376

Rod Asm Bypass
(Superseded to 532403376)

$

$

Not available

130

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

138

Electrolux/AYP 193224X428

Cupholder
(Superseded to 532409730)

$7.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 189350

Duct Heat Hood

$

$

Not available

151

Electrolux/AYP 174714

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 194329

Shield Browning/Debris
(Superseded to 532194329)

$20.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

161

Electrolux/AYP 193229X428

Window Fuel
(Superseded to 532193229)

$8.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2 UNC
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 194330

Bracket Support Tank
(Superseded to 532194330)

$20.99

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 195227

Bushing Steering
(Superseded to 532195227)

$6.99

$

In Stock, Qty 16

0

180

Electrolux/AYP 194260

Chassis

$94.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 193057

Dash Lower
(Superseded to 532193057)

$96.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 195780

Spacer Fender
(Superseded to 532195780)

$7.49

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 183829X428

Insert Grille

$

$

Not available

189

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

196

Electrolux/AYP 196378X428

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

207

Electrolux/AYP 183833

Bezel RH
(Superseded to 532183833)

$

$

Not available

208

Electrolux/AYP 183832

Bezel LH
(Superseded to 532183832)

$

$

Not available

217

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

219

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

222

Electrolux/AYP 137729

Screw thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

229

Electrolux/AYP 17000616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 2 left!

0

233

Electrolux/AYP 196539

Bolt Shoulder
(Superseded to 532196539)

$7.49

$

In Stock, Qty 20+

0
