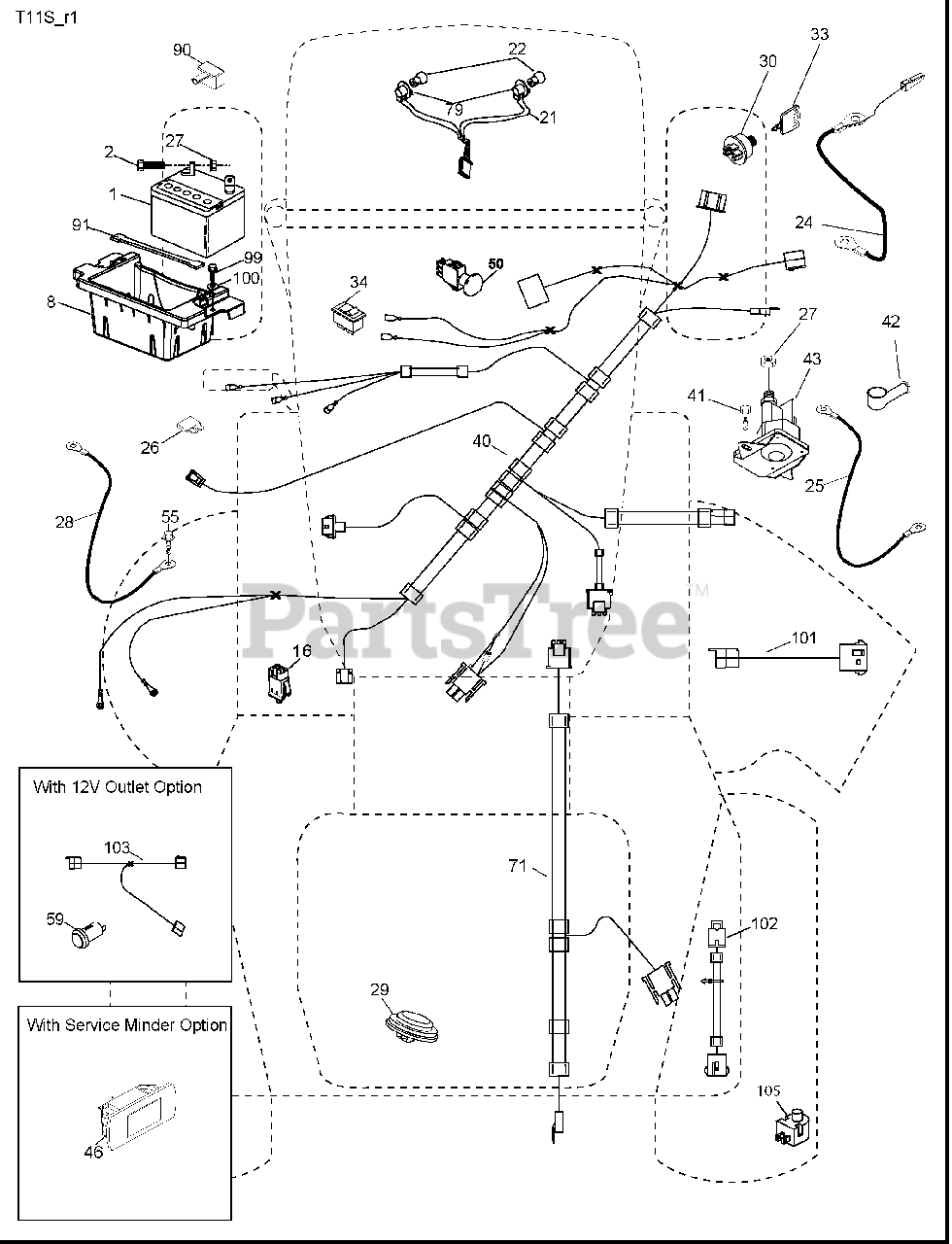

PB 22H54 BF (960420060-01) - Poulan Pro Lawn Tractor (2008-07) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 74760412

Bolt Hex Head 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 186491

Box Battery
(Superseded to 532186491)

$

$

Not available

16

Electrolux/AYP 176138

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 175688

Harness Socket Light w/4152J
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 400253

Cable Battery
(Superseded to 585555601)

$9.49

$

In Stock, only 3 left!

0

25

Electrolux/AYP 198893

Cable Starter
(Superseded to 532198893)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Murray 73510400

Nut Keps. Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 145491

Cable, Ground
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 401545

Switch, Seat
(Superseded to 532401545)

$39.99

$

In Stock, Qty 6

0

30

Electrolux/AYP 193350

Switch, Ign.
(Superseded to 532193350)

$22.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 411935

Key/Chain
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 110712X

Switch Light/Reset
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

40

Electrolux/AYP 401104

Harness Ign. Dash
(Superseded to 532401104)

$120.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 17720408

Screw Thd. Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 192507

Solenoid
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 401763

Gauge Hourmeter
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Electrolux/AYP 174653

Switch PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 7

0

55

Electrolux/AYP 17490512

Screw Thdrol. 5/16-18 x 3/4 TYTT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 194276

Harness Chassis
(Superseded to 532194276)

$40.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 175242

Socket Asm. Bulb Twistlock
(Superseded to 532175242)

$18.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 400724

Cover Terminal Battery
(Superseded to 532400724)

$4.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 190270

Strap Battery Mount Front
(Superseded to 532190270)

$9.99

$

In Stock, Qty 13

0

99

Electrolux/AYP 17670412

Screw Hex Wsh. Thdrol. 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 198317

Pigtail
(Superseded to 532198317)

$9.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 404454

Harness Pigtail K46 TEX ROS
(Superseded to 532404454)

$26.99

$

Usually ships in 3-10 days

0

105

Electrolux/AYP 407568

Switch Reverse TT Pedal Control

$9.49

$

Usually ships in 3-10 days

0
