PB 22H42YT (960480051-00) - Poulan Pro Lawn Tractor (2012-11) ENGINE Parts Diagram

Lawn Tractor

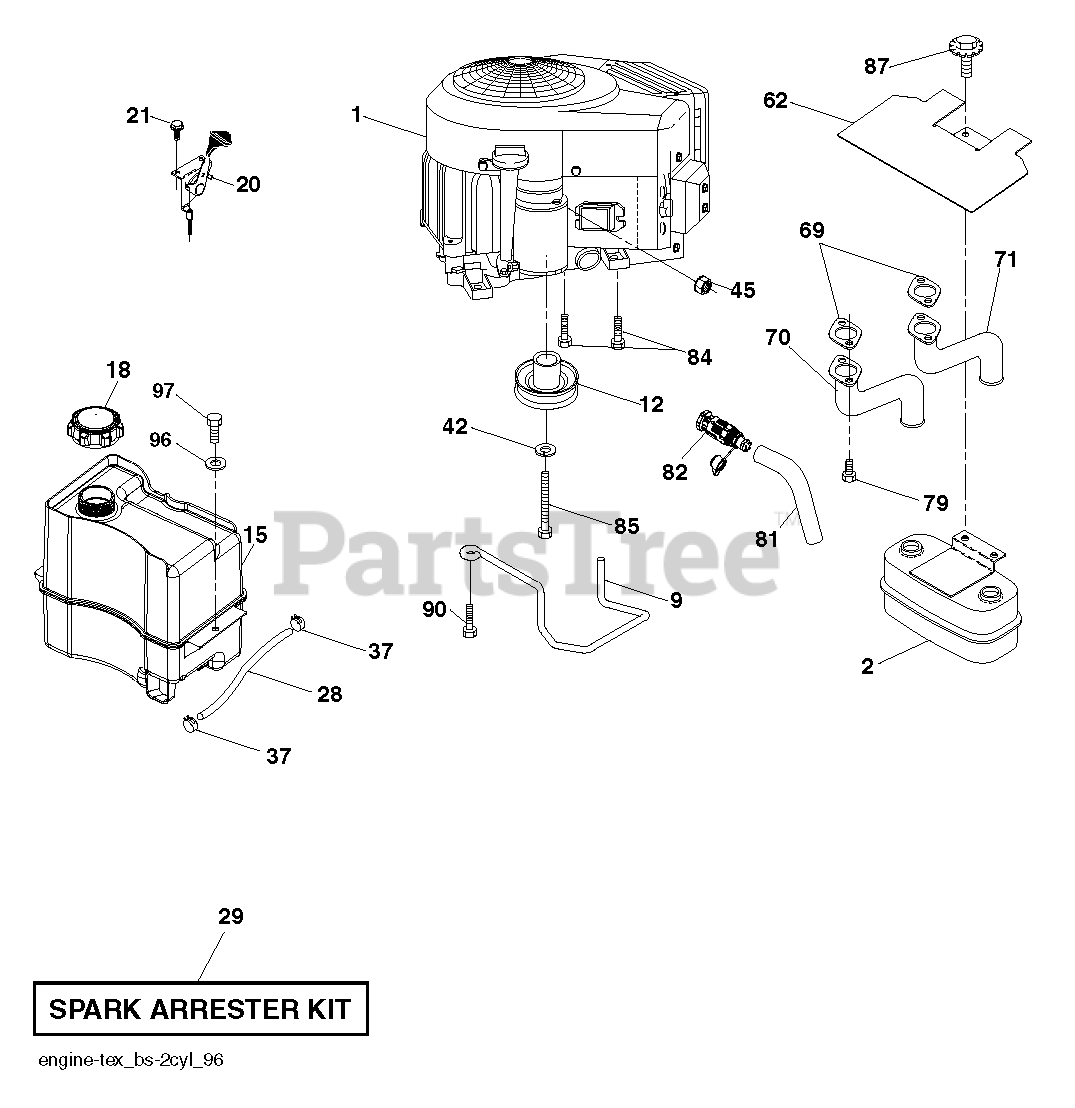

ENGINE Parts Diagram

  • Title
1

Poulan 000000000

Note: ENGINE B S MODEL NO 407777-3574-G5 (581082301)

$

$

Not available

2

Poulan 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Poulan 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

12

Poulan 532401985

PULLEY ENGINE
(Superseded to 586729001)

$40.99

$

In Stock, only 1 left!

0

15

Poulan 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

$120.99

$

In Stock, only 1 left!

0

18

Poulan 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Poulan 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, Qty 5

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Poulan 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Poulan 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

70

Poulan 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Poulan 532160589

RP.EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

96

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0
