PB 21550V (80408) - Snapper 21" Walk-Behind Mower, 5.5hp (1993) Side Chute, Adapter Parts Diagram

21" Walk-Behind Mower, 5.5hp

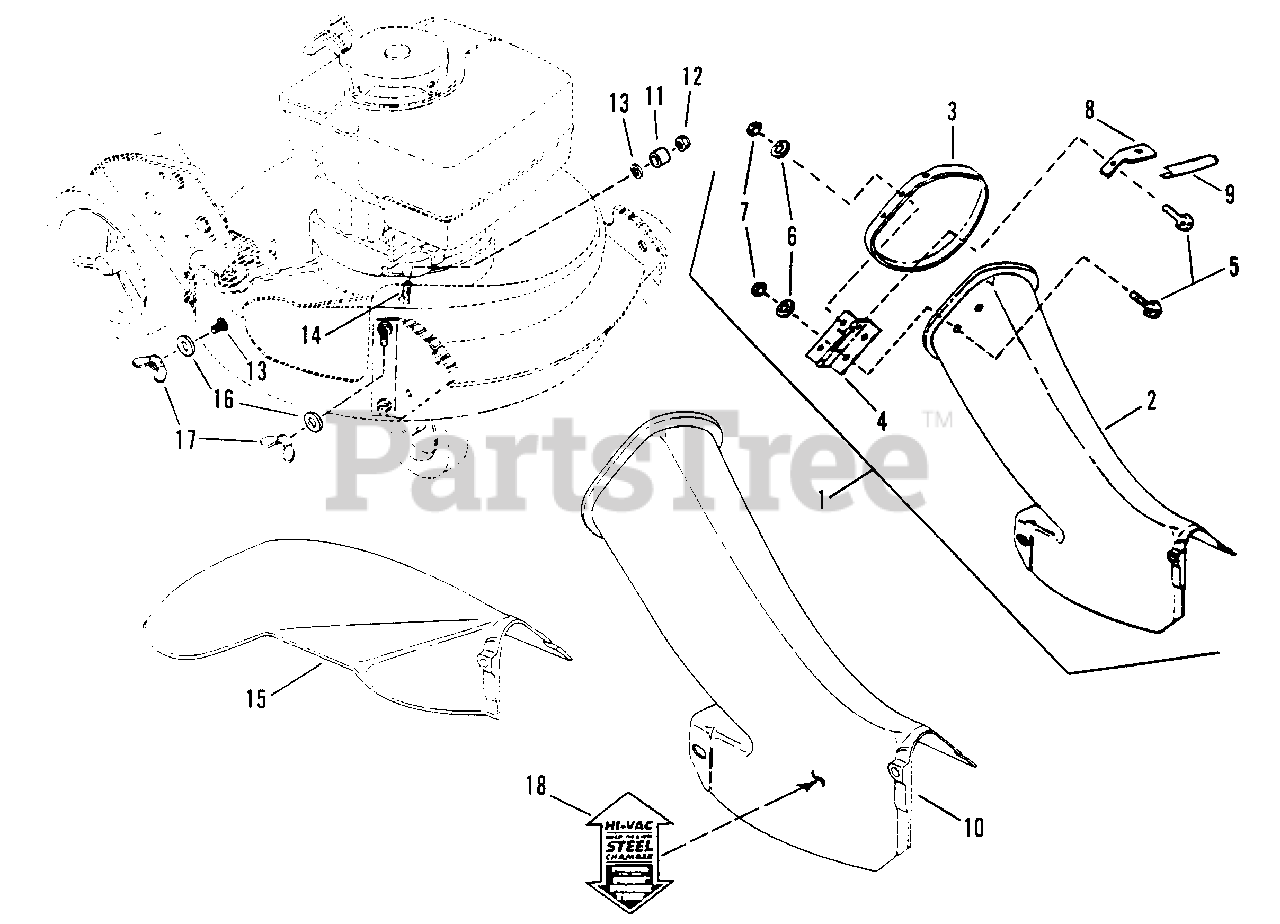

Side Chute, Adapter Parts Diagram

  • Title

1

Snapper 7051951

ASSEMBLY, Bag Adapter & Cover
(Superseded to 7600182YP)

Note: (European Models Only; Includes Items 2 thru 9)

$163.99

$

Usually ships in 2-12 days

0

2

Snapper 7016107

ADAPTER, Grass Bag
(Superseded to 7016107YP)

$90.99

$

Usually ships in 2-12 days

0

3

Snapper 7019287

COVER, Bag Adapter
(Superseded to 7019287YP)

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 7023000

HINGE, Chute Cover
(Superseded to 7023000YP)

$35.99

$

In Stock, only 1 left!

0

5

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

7

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7032661

STOP, Cover
(Superseded to 7032661YP)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 7023042

MOLDING, Trim
(Superseded to 7023042YP)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7016050

ADAPTER, Grass Bag
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

11

Snapper 7024340

SPACER
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

12

Snapper 7090951

NUT, 5/16-18 Hex Flange
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

13

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

Snapper 7042965

KIT, Side Chute
(Superseded to 7042965YP)

Note: Was 60955 (10 per box)

$53.99

$

Usually ships in 2-12 days

0

15

Snapper 7042965

CHUTE, Side, 21" Deck
(Superseded to 7042965YP)

Note: Was 16090

$53.99

$

Usually ships in 2-12 days

0

16

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7024085

WING-NUT, 5/16-18 Nyloc
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

18

Snapper 7024169

DECAL, Hi-Vac/Foot Probe (Red)

$

$

Not available
