PB 21550V (80408) - Snapper 21" Walk-Behind Mower, 5.5hp (1993) Rear Wheel Brackets, Latches Parts Diagram

21" Walk-Behind Mower, 5.5hp

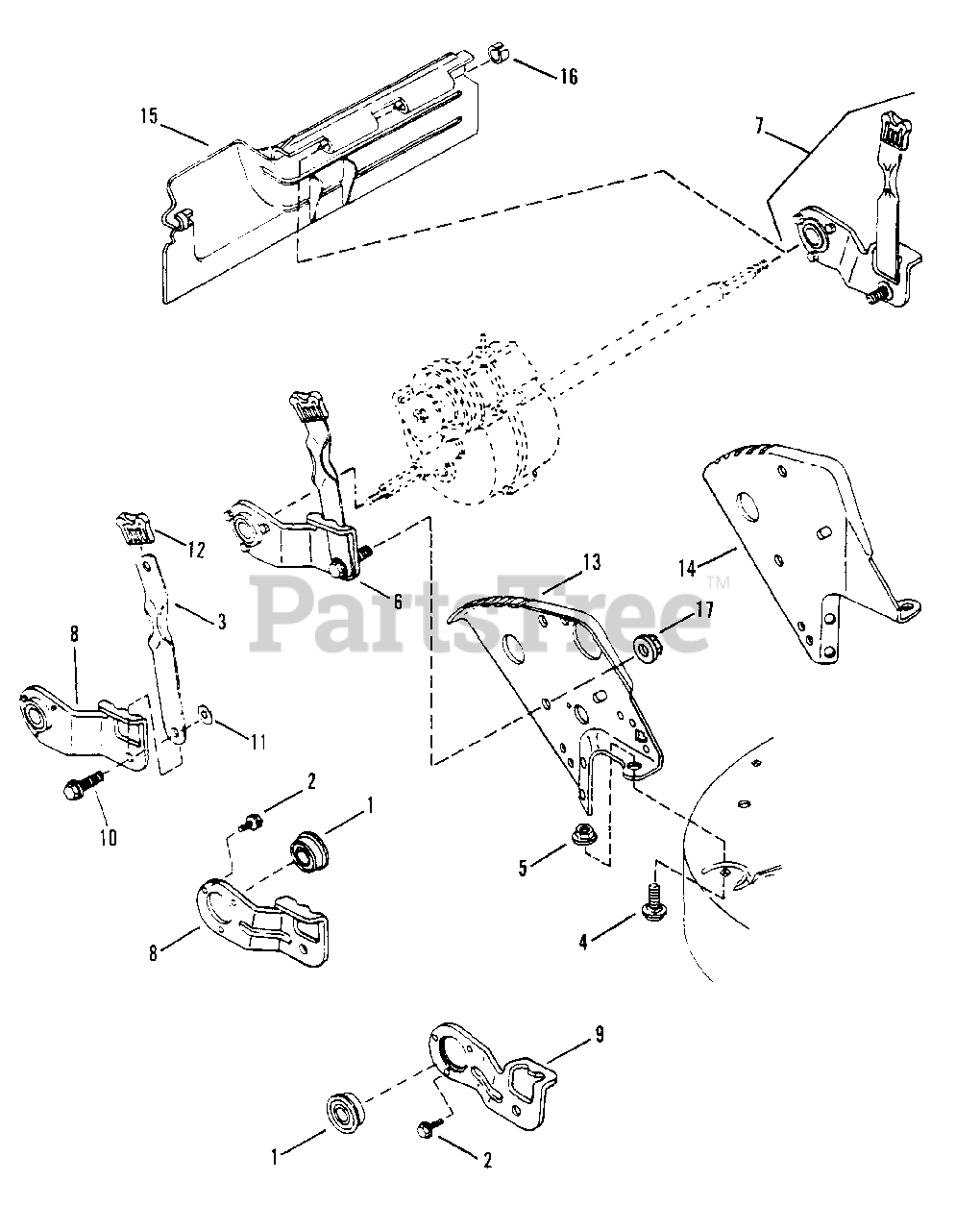

Rear Wheel Brackets, Latches Parts Diagram

  • Title
1

Snapper 7046983

BEARING
(Superseded to 7046983YP)

Note: Was 18767

$22.99

$

In Stock, Qty 6

0

2

Snapper 7091012

SCREW, #10-32 x 3/8" Self-Tapping
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7035717

LATCH, Height Adjusting (Long)
(Superseded to 7035717YP)

Note: Was 19218

$6.99

$

In Stock, Qty 10

0

4

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7054246

ASSEMBLY, Wheel Arm
(Superseded to 7054246YP)

Note: Was 51814 (Includes items 1, 2, 3, 8, 10, 11, 12)

$

$

Not available

7

Snapper 7054247

ASSEMBLY, Wheel Arm
(Superseded to 7054247YP)

Note: Was 51815 (Includes items 1, 2, 3, 9, 10, 11, 12)

$40.99

$

In Stock, Qty 9

0

8

Snapper 7032722

ARM, Right Rear Wheel
(Superseded to 7032722YP)

Note: ("P" Models)

$

$

Not available

9

Snapper 7032723

ARM, Left Rear Wheel
(Superseded to 7032723YP)

Note: ("P" Models)

$6.49

$

In Stock, Qty 8

0

10

Snapper 7015761

BOLT, 5/16-18 x 3/4" Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

11

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7027702

GRIP, Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

13

Snapper 7033846

BRACKET, Right Rear Wheel
(Superseded to 7033846YP)

Note: (Self-Propelled "P" Models)

$41.99

$

Usually ships in 2-12 days

0

14

Snapper 7036242

BRACKET, Left Rear Wheel
(Superseded to 7036242YP)

Note: (Self-Propelled "P" Models)

$21.99

$

In Stock, only 1 left!

0

15

Snapper 7019522

GUARD, Rear Foot
(Superseded to 7029008YP)

Note: Was 25000 (Self-Propelled "P" Models)

$32.99

$

In Stock, Qty 11

0

16

Snapper 7023791

RING, Black
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
