PB 21550V (80408) - Snapper 21" Walk-Behind Mower, 5.5hp (1993) Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp

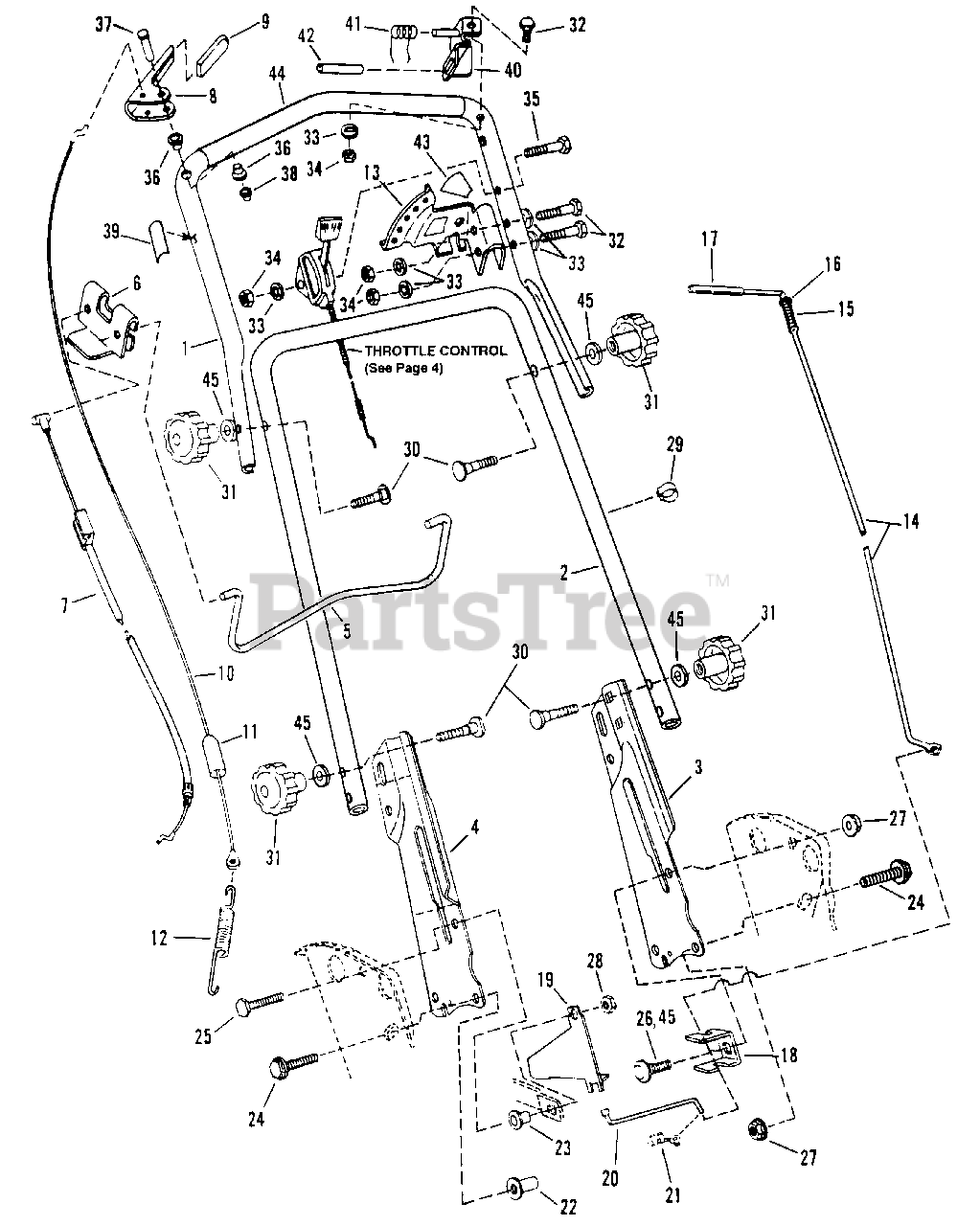

Handles & Controls Parts Diagram

  • Title
1

Snapper 7046914

HANDLE, Upper

Note: Was 24889

$63.99

$

Usually ships in 2-12 days

0

2

Snapper 7024890

HANDLE, Middle (15.5" Wide ID)
(Superseded to 7024890YP)

$152.99

$

Usually ships in 2-12 days

0

3

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

Note: Was 33811

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

Note: Was 33812

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7025014

CONTROL, Blade
(Superseded to 7025014YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7032445

CLIP, Blade Control
(Superseded to 7032445YP)

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 7025037

CABLE, Blade Control
(Superseded to 7025037YP)

$24.99

$

Usually ships in 2-12 days

0

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 20+

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7025013

CABLE, Clutch Pull
(Superseded to 7025013YP)

Note: (Self Propelled Models)

$17.99

$

In Stock, Qty 20+

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7038478

SECTOR, Speed
(Superseded to 7038478YP)

$82.99

$

Usually ships in 2-12 days

0

14

Snapper 7012317

LEVER, Speed Control

$

$

Not available

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

$4.49

$

In Stock, Qty 6

0

18

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

$26.99

$

In Stock, only 1 left!

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

$9.49

$

In Stock, Qty 11

0

Snapper 7051698

ASSEMBLY, Transfer Rod (Euro)
(Superseded to 7051698YP)

Note: (Not Shown)

$26.99

$

Usually ships in 2-12 days

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

22

Snapper 7090895

TEE-NUT, 5/16-18
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

24

Snapper 7090595

BOLT, 5/16-18x3/4 Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

25

Snapper 7090238

CAPSCREW, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

26

Snapper 7090799

BOLT, 5/16-18x5/8 Carriage
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7091606

NUT, 5/16-24 Center Lock
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7023813

CLIP, Cable/Wiring
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7091740

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 12

0

31

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091025

CAPSCREW, 1/4-28 x 1-3/8
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

34

Snapper 7090095

NUT, 1/4-20 Hex
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7091022

CAPSCREW, 1/4-28 x 1-3/4

$

$

Not available

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091020

PUSH-NUT
(Superseded to 7091020YP)

Note: (For handle pin)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7024089

DECAL, Blade Control

Note: (R.H. Side)

$

$

Currently unavailable

40

Snapper 7051904

ASSEMBLY, Blade Control Bracket
(Superseded to 7051904YP)

$26.99

$

Usually ships in 2-12 days

0

41

Snapper 7015108

SPRING, Blade Control
(Superseded to 7015108YP)

$12.99

$

Usually ships in 2-12 days

0

42

Snapper 7014946

GRIP, Pivot

$

$

Not available

43

Snapper 7024087

DECAL, Speed Sector

$

$

Not available

44

Snapper 7022460

GRIP, Foam

$

$

Not available

45

Snapper 7090391

LOCKWASHER, 5/16 Internal Tooth
(Superseded to 703587)

Note: Was 91068

$4.49

$

In Stock, Qty 20+

0
