PB 21550V (80408) - Snapper 21" Walk-Behind Mower, 5.5hp (1993) Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 5.5hp

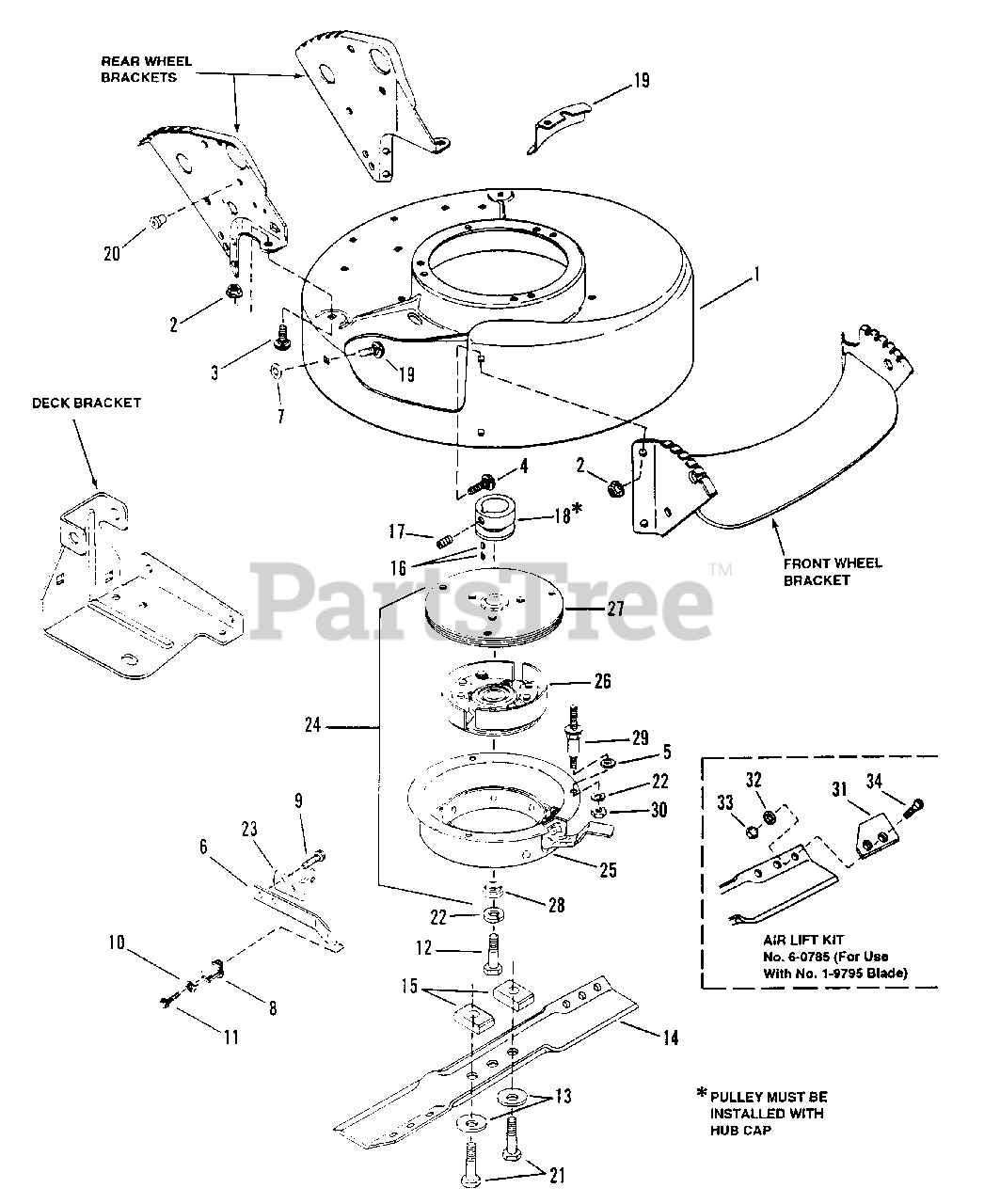

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7057664

DECK, Mower

Note: Was 51598 (lncludes painted Deck with decals)

$

$

Not available

2

Snapper 7091601

NUT, Hex Flanged Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage Gr. 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7091169

BOLT, Bolt 5/16-18 x 1-1/8" Short Neck Carriage
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7012316

WASHER, 3/8" Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7032417

SPRING, Wheel Bracket Type Interlock
(Superseded to 7032417YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7026175

INSULATOR, Interlock
(Superseded to 7026175YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091122

SCREW, 1/4-20x1/2" Hex Self-tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 9

0

10

Snapper 7090385

WASHER, No. 8 Tab Int. Tooth Lock

$

$

Not available

11

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Head Machine
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090167

SCREW, 3/8-24 x 2.0" Hex Head Cap
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

14

Snapper 7019795

BLADE, Cutter
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

15

Snapper 7032175

SPACER, Blade

$6.49

$

Usually ships in 2-12 days

0

16

Snapper 7010783

KEY, Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7015894

KEY, Woodruff
(Superseded to 7015894SM)

$3.49

$

In Stock, Qty 7

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7015780

PULLEY, Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

19

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

20

Snapper 7012135

BUSHING, Interlock Wire

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap
(Superseded to 704289)

Note: Was 90503

$4.99

$

In Stock, Qty 13

0

22

Snapper 7090118

LOCKWASHER, 3/8 Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

23

Snapper 7032421

BRACKET, CABLE-BBC

$

$

Currently unavailable

24

Snapper 7052818

ASSEMBLY, Blade Clutch

Note: (Includes items 25 thru 28)

$

$

Currently unavailable

25

Snapper 7016582

ASSEMBLY, Bowl & Brake

$

$

Not available

26

Snapper 7014178

ASSEMBLY, Clutch Bearing

$

$

Not available

27

Snapper 7024349

ASSEMBLY, Flywheel

$

$

Not available

28

Snapper 7014176

WASHER, Blade

$

$

Not available

29

Snapper 7015095

STAND-OFF (Engine Mounting)

$

$

Not available

30

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Includes items 31 thru 34)

$

$

Not available

31

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

32

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0
