PB-2155 - Echo Handheld Blower (SN: P32620001001 - P32620999999) Engine Parts Diagram

Handheld Blower

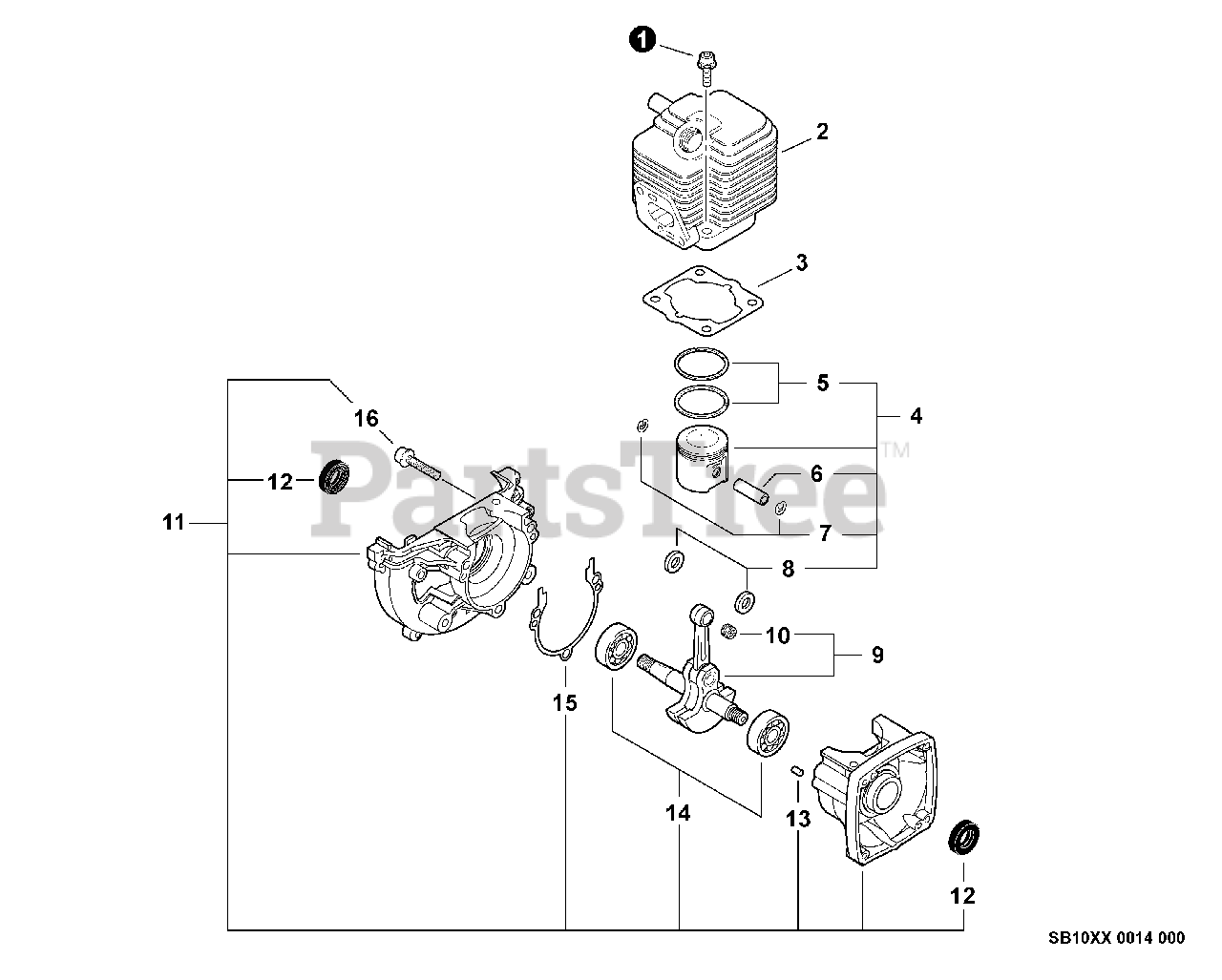

Engine Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

4

Echo P021001102

PISTON KIT

Note: Includes ITEMS 5-7

$77.99

$

In Stock, Qty 5

0

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes ITEM 10

$150.99

$

Usually ships in 2-4 days

0

10

Echo 10011311520

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 1 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0
