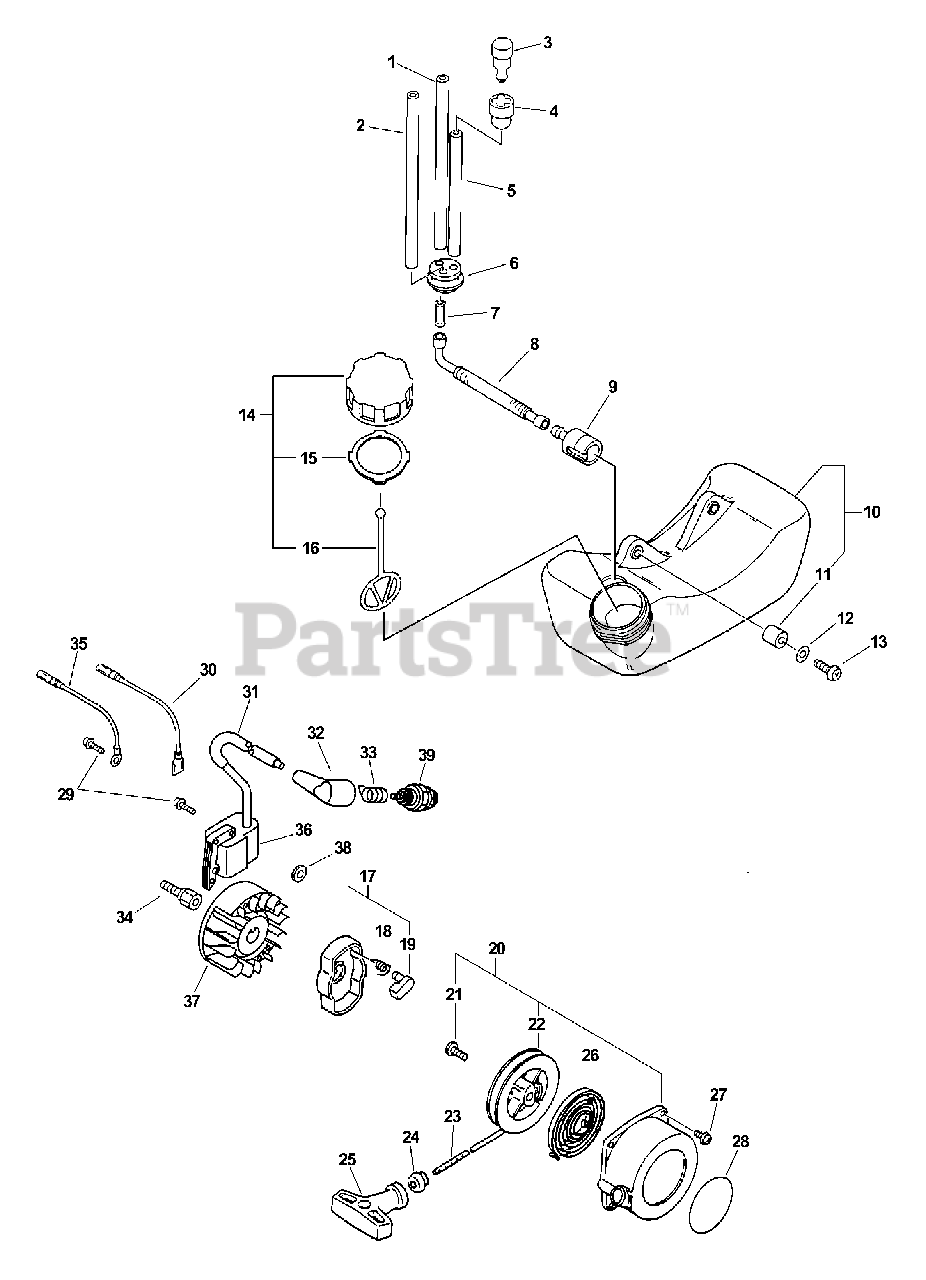

PB-2100 - Echo Handheld Blower (Type 1E) Ignition, Starter, Fuel System Parts Diagram

Handheld Blower (Type 1E)

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

2

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

4

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, only 4 left!

0

5

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

6

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

7

Echo 13201103360

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 20+

0

8

Echo 13201212360

PIPE, FUEL - CORRUGATED
(Superseded to 13201212361)

$3.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes ITEM 11

$24.99

$

In Stock, only 3 left!

0

11

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

14

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 15-16

$6.49

$

In Stock, Qty 6

0

15

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

16

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

17

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 18-19

$16.99

$

In Stock, Qty 18

0

18

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

19

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

20

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 21-26

$49.99

$

In Stock, Qty 20+

0

21

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

22

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

23

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

24

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

25

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

26

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 10

0

27

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

28

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

29

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

30

Echo 16202120560

LEAD - GROUND

$9.99

$

Usually ships in 2-4 days

0

31

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

32

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

33

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

34

Echo 20001105661

HUB, FAN

$15.99

$

Usually ships in 2-4 days

0

35

Echo 16201020560

LEAD - IGNITION

Note: S/N: 001001-668812

$8.99

$

Usually ships in 2-4 days

0

35

Echo V485000040

LEAD - IGNITION

Note: S/N: 668813-819355

$9.99

$

Usually ships in 2-4 days

0

35

Echo 16201020560

LEAD - IGNITION

Note: S/N: 819356-879898

$8.99

$

Usually ships in 2-4 days

0

35

Echo V485000040

LEAD - IGNITION

Note: S/N: 879899 & UP

$9.99

$

Usually ships in 2-4 days

0

36

Echo 15862606361

COIL, IGNITION
(Superseded to A411000020)

Note: S/N: 001001-668812

$79.99

$

Usually ships in 2-4 days

0

36

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

Note: S/N: 668813-819355

$79.99

$

Usually ships in 2-4 days

0

36

Echo 15862606361

COIL, IGNITION
(Superseded to A411000020)

Note: S/N: 819356-879898

$79.99

$

Usually ships in 2-4 days

0

36

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

Note: S/N: 879899 & UP

$79.99

$

Usually ships in 2-4 days

0

37

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

Note: S/N: 001001-668812

$

$

Not available

37

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

Note: S/N: 668813-819355

$63.99

$

Usually ships in 2-4 days

0

37

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

Note: S/N: 819356-879898

$

$

Not available

37

Echo A409000100

FLYWHEEL

Note: S/N: 879899 & UP

$63.99

$

Usually ships in 2-4 days

0

38

Echo 10153154330

SPACER

Note: S/N: 001001-668812

$2.99

$

In Stock, only 2 left!

0

38

Echo 10153154330

SPACER

Note: S/N: 819356-879898

$2.99

$

In Stock, only 2 left!

0

39

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, only 2 left!

0

39

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.49

$

In Stock, Qty 20+

0
