PB-210 - Echo Handheld Blower (SN: 03001001 - 03999999) Intake, Exhaust Parts Diagram

Handheld Blower

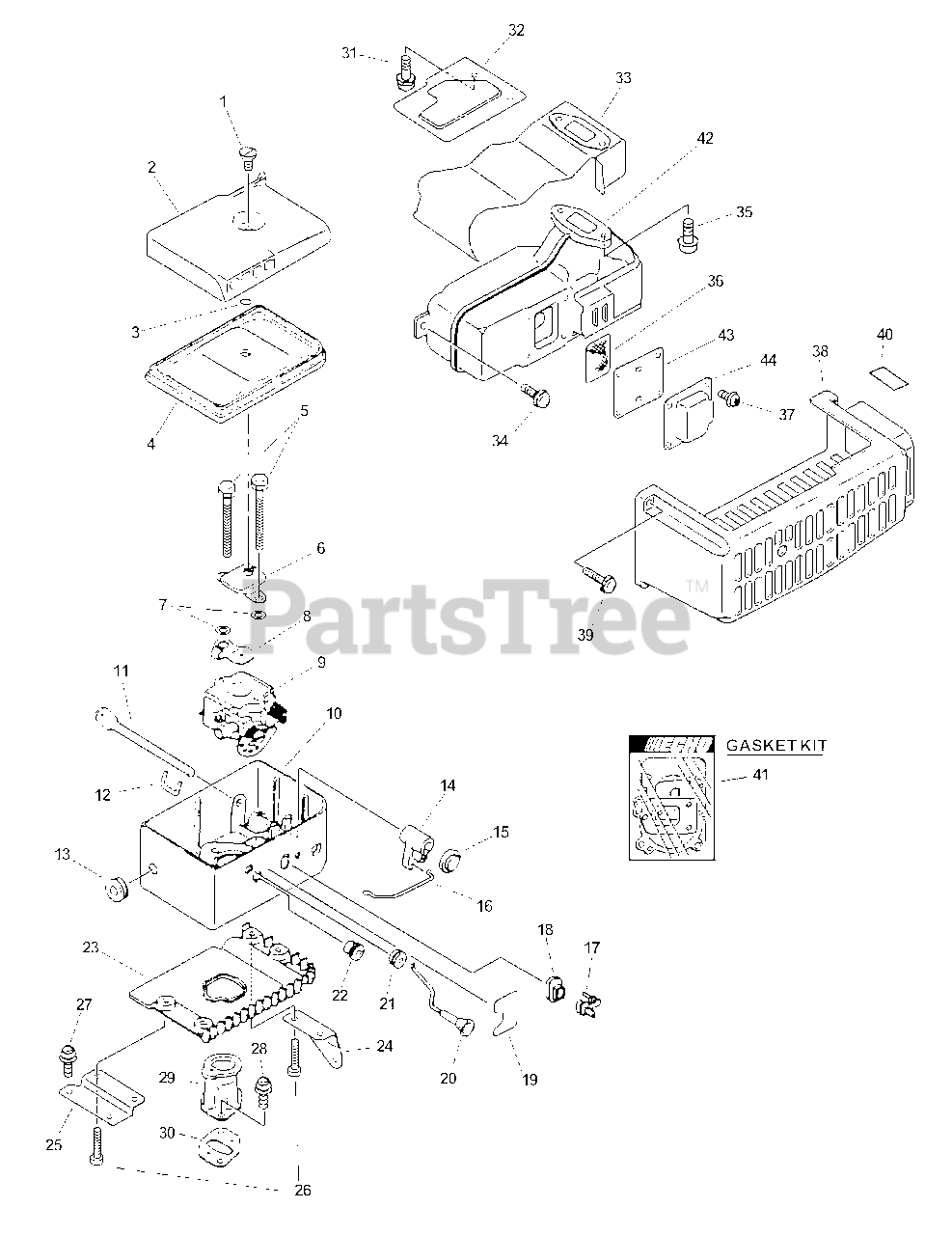

Intake, Exhaust Parts Diagram

  • Title
1

Echo 13041522130

THUMBSCREW

$2.99

$

Usually ships in 2-4 days

0

2

Echo 13031303361

COVER, AIR FILTER

$

$

Not available

3

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

4

Echo 13031003360

FILTER, AIR

$11.99

$

Usually ships in 2-4 days

0

5

Echo 90024205045

SCREW - 5X40

$0.99

$

Usually ships in 2-4 days

0

6

Echo A244000031

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

7

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 17851522130

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12300003662

CARBURETOR WT-409B

$87.99

$

Usually ships in 2-4 days

0

10

Echo 13030603362

CASE, CARBURETOR

$22.99

$

Usually ships in 2-4 days

0

11

Echo 17812403360

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 17803203360

CONNECTOR, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

13

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17801703360

ARM, THROTTLE LEVER

$2.99

$

Usually ships in 2-4 days

0

15

Echo 17811403360

GUIDE, THROTTLE ROD

$1.49

$

Usually ships in 2-4 days

0

16

Echo 17804603360

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

$6.49

$

In Stock, only 1 left!

0

18

$6.49

$

Usually ships in 2-4 days

0

19

Echo 89015803360

LABEL
(Superseded to Discontinued)

$

$

Not available

20

Echo 17851003360

ROD, CHOKE

$8.99

$

Usually ships in 2-4 days

0

21

$1.49

$

In Stock, only 3 left!

0

22

Echo 12902303360

GROMMET
(Superseded to Discontinued)

$

$

Not available

23

Echo 13035503360

INSULATOR

$10.99

$

Usually ships in 2-4 days

0

24

$2.99

$

Usually ships in 2-4 days

0

25

$2.99

$

Usually ships in 2-4 days

0

26

Echo 90024905025

SCREW - 5X25
(Superseded to Discontinued)

$

$

Not available

27

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

28

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

29

Echo 13051003360

ADAPTOR, INTAKE

$17.99

$

In Stock, only 1 left!

0

30

Echo 13001003361

GASKET, INTAKE

$0.99

$

In Stock, Qty 8

0

31

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

32

Echo 10027003360

INSULATOR

$4.49

$

In Stock, only 1 left!

0

33

Echo V104000190

GASKET, EXHAUST

$9.49

$

In Stock, only 1 left!

0

34

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

35

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

36

Echo 14586209520

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

37

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

38

Echo A320000060

COVER, EXHAUST

$16.99

$

Usually ships in 2-4 days

0

39

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

40

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

41

Echo P021002401

GASKET KIT
(Superseded to P021002402)

$19.99

$

Usually ships in 2-4 days

0

42

Echo 14585803360

MUFFLER
(Superseded to Discontinued)

Note: MODEL: PB-210

$

$

Not available

43

Echo 14586603361

GASKET, EXHAUST
(Superseded to Discontinued)

Note: Included in GASKET KIT

$

$

Not available

44

Echo 14580903361

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: MODEL: PB-210

$

$

Not available

42

Echo A300000160

MUFFLER

Note: MODEL: PB-211

$100.99

$

Usually ships in 2-4 days

0

43

Echo V104000200

GASKET, EXHAUST

Note: Included in GASKET KIT

$3.49

$

In Stock, only 1 left!

0

44

Echo A313000210

GUIDE, EXHAUST

Note: MODEL: PB-211

$5.49

$

Usually ships in 2-4 days

0
