PB-210 - Echo Handheld Blower (SN: 03001001 - 03999999) Ignition, Starter Parts Diagram

Handheld Blower

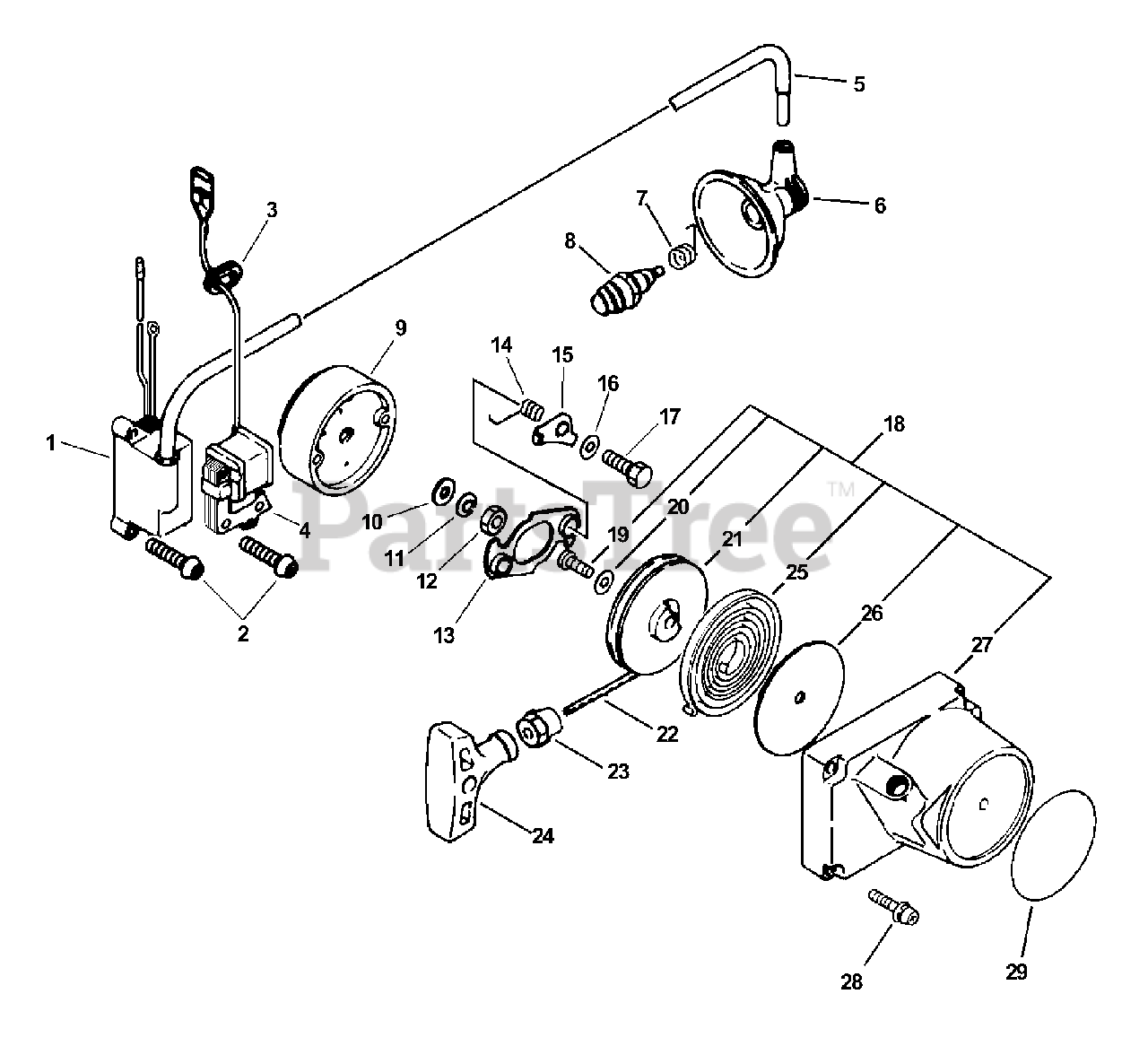

Ignition, Starter Parts Diagram

  • Title
1

Echo 15660103361

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

2

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

3

$1.49

$

In Stock, Qty 5

0

4

Echo 15662703361

COIL, EXCITER
(Superseded to Discontinued)

$

$

Not available

$1.49

$

Usually ships in 2-4 days

0

6

Echo 15901203360

CAP, SPARK PLUG

$12.99

$

Usually ships in 2-4 days

0

7

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

8

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

9

Echo 15680003361

FLYWHEEL

$99.99

$

Usually ships in 2-4 days

0

10

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

$0.99

$

In Stock, only 2 left!

0

13

Echo 17730703360

HOLDER, PAWL

$7.49

$

Usually ships in 2-4 days

0

14

Echo 17723404920

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

15

Echo 17721804920

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010005020

BOLT - 5X20

$0.99

$

In Stock, Qty 8

0

18

Echo 17720003360

STARTER ASSY

Note: INCLUDES ITEMS 19-27

$61.99

$

Usually ships in 2-4 days

0

19

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

20

$0.99

$

In Stock, Qty 8

0

21

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 13

0

23

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 5

0

24

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

25

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 9

0

26

Echo 17722116530

PLATE, STARTER

$

$

Not available

27

Echo 17720903360

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

28

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

29

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

Echo 99944400000

BULK ROPE - 3X 850

Note: OPTIONAL

$128.99

$

Usually ships in 2-4 days

0
