PB-210 - Echo Handheld Blower (SN: 03001001 - 03999999) Carburetor Parts Diagram

Handheld Blower

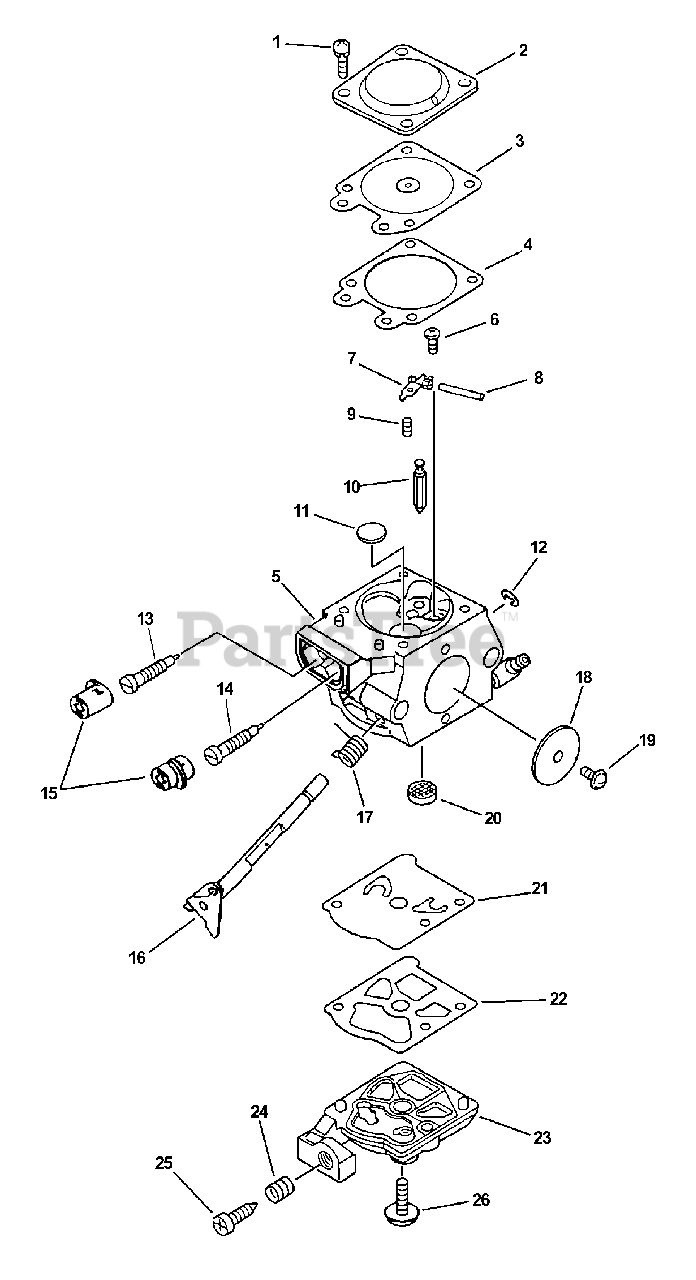

Carburetor Parts Diagram

  • Title

Echo 12300003662

CARBURETOR WT-409B

$87.99

$

Usually ships in 2-4 days

0

1

Echo 12313002960

SCREW

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N P00300250 & DIAPHRAGM/GASKET KIT P/N 12310137330

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N P00300250 & DIAPHRAGM/GASKET KIT P/N 12310137330

$

$

Not available

5

------------------

BODY, CARBURETOR

$

$

Not available

6

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N P00300250

$

$

Not available

8

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N P00300250

$

$

Not available

9

Echo 12312203660

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

10

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N P00300250

$

$

Not available

11

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N P00300250

$

$

Not available

12

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

13

Echo 12312003661

NEEDLE - MIXTURE

$3.99

$

Usually ships in 2-4 days

0

14

Echo 12312003661

NEEDLE - MIXTURE

$3.99

$

Usually ships in 2-4 days

0

15

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

16

Echo 12311703660

SPRING, THROTTLE RETURN

$6.49

$

Usually ships in 2-4 days

0

17

Echo 12311309660

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 11

0

18

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

19

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

20

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N P00300250

$

$

Not available

21

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N P00300250 & DIAPHRAGM/GASKET KIT P/N 12310137330

$

$

Not available

22

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N P00300250 & DIAPHRAGM/GASKET KIT P/N 12310137330

$

$

Not available

23

Echo 12312403660

COVER, PUMP

$4.49

$

Usually ships in 2-4 days

0

24

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

25

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

26

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

26

Echo P003000250

REPAIR KIT

$12.99

$

In Stock, only 2 left!

0

26

Echo 12310137330

DIAPHRAGM/GASKET KIT

$7.49

$

Usually ships in 2-4 days

0
