PB 20H42LT (960420148-01) - Poulan Pro Lawn Tractor (2013-01) ENGINE Parts Diagram

Lawn Tractor

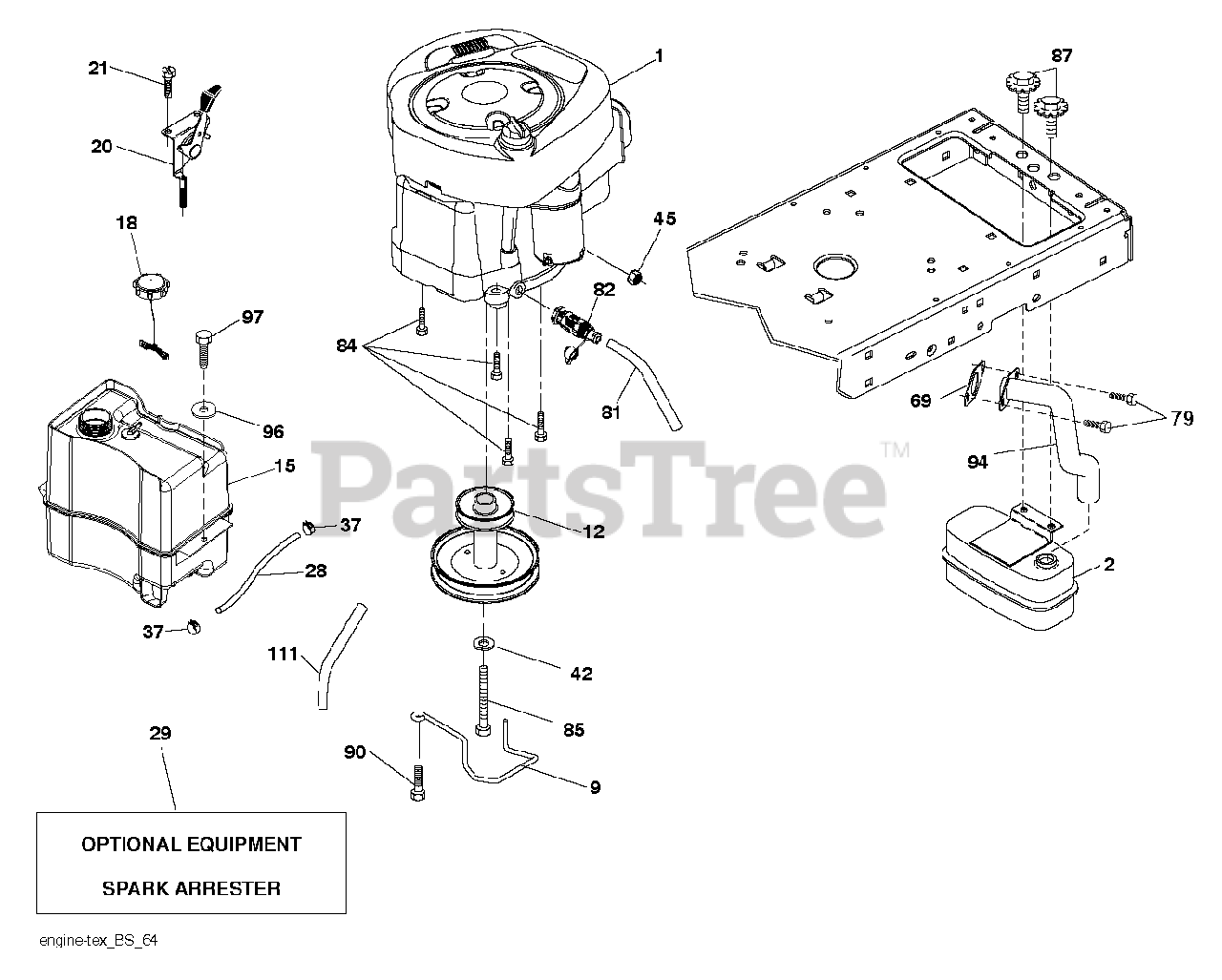

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Engine B S Model No 331777-2372-G5 (438212)

$

$

Not available

2

Poulan 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 2 left!

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, only 1 left!

0

12

Poulan 532401985

PULLEY ENGINE
(Superseded to 586729001)

$40.99

$

In Stock, only 1 left!

0

15

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$169.99

$

Usually ships in 3-10 days

0

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$53.99

$

In Stock, only 1 left!

0

20

Poulan 532170545

(Superseded to 583045801)

$40.99

$

Usually ships in 3-10 days

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 532131780

SPARK ARRESTOR KIT

$

$

Not available

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

69

Poulan 532165291

(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

94

Poulan 581099201

RP.EXHAUST.TUBE.B&S.28/31
(Superseded to 581880901)

$31.99

$

In Stock, only 3 left!

0

96

Poulan 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0
