PB 20H42LT (960420148-00) - Poulan Pro Lawn Tractor (2012-08) ENGINE Parts Diagram

Lawn Tractor

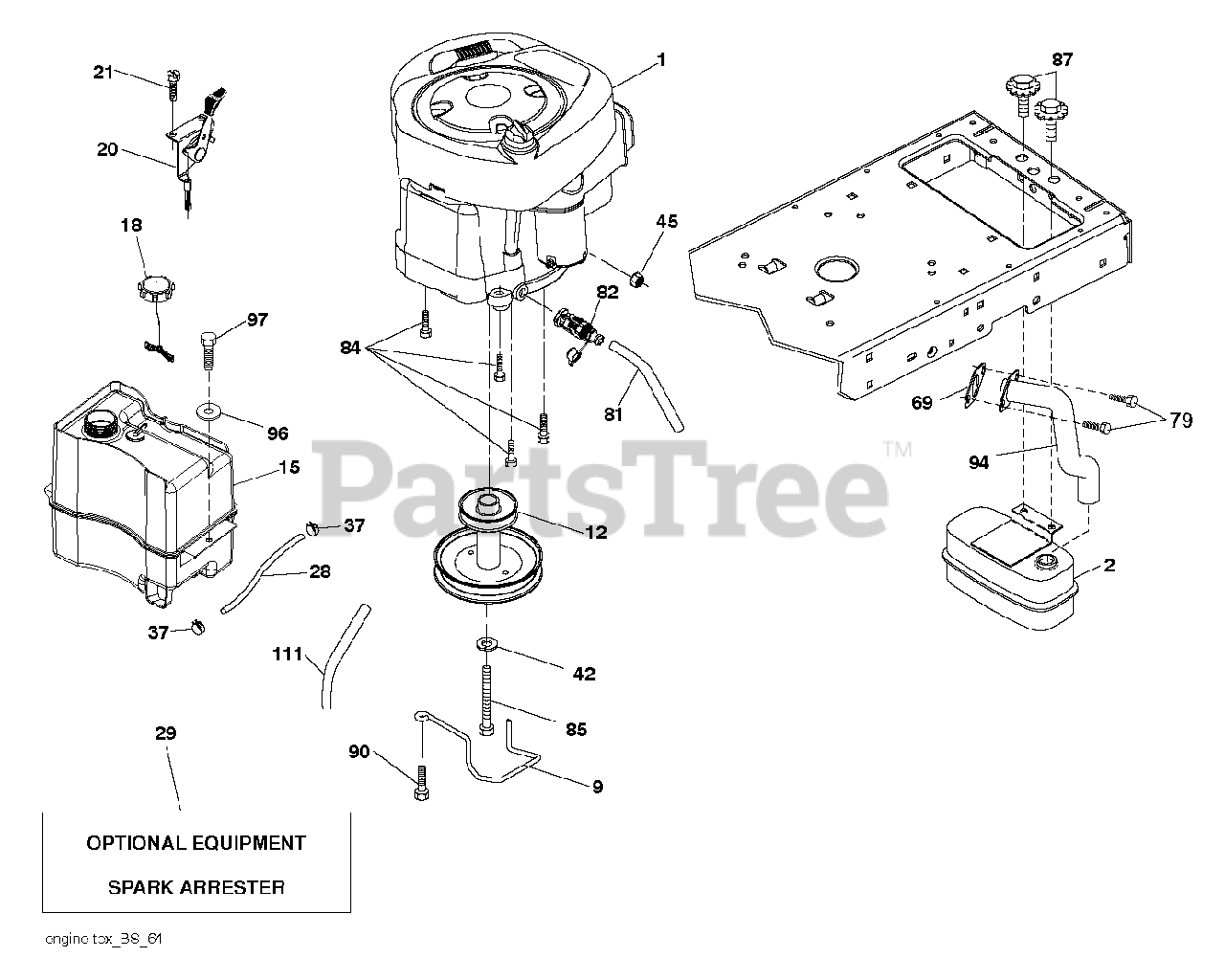

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Engine B S Model No 331777-2372-G5 (438212)

$

$

Not available

2

Poulan 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 16

0

9

Poulan 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, Qty 5

0

12

Poulan 532405471

PULLY ENGINE
(Superseded to 586478501)

$40.99

$

In Stock, Qty 5

0

15

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$

$

Not available

18

Poulan 532438596

CAP.2.25'.VENTED.RATCHET.EPA
(Superseded to 581075501)

$26.99

$

In Stock, Qty 20+

0

20

Poulan 532170545

(Superseded to 583045801)

$40.99

$

Usually ships in 3-10 days

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 532131780

SPARK ARRESTOR KIT

$

$

Not available

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

69

Poulan 532165291

(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 20+

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 18

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

94

Poulan 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$31.99

$

In Stock, only 1 left!

0

96

Poulan 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0
