PB 20H42 YT (960420008-00) - Poulan Pro Lawn Tractor (2006-01) Mower Deck Parts Diagram

Lawn Tractor

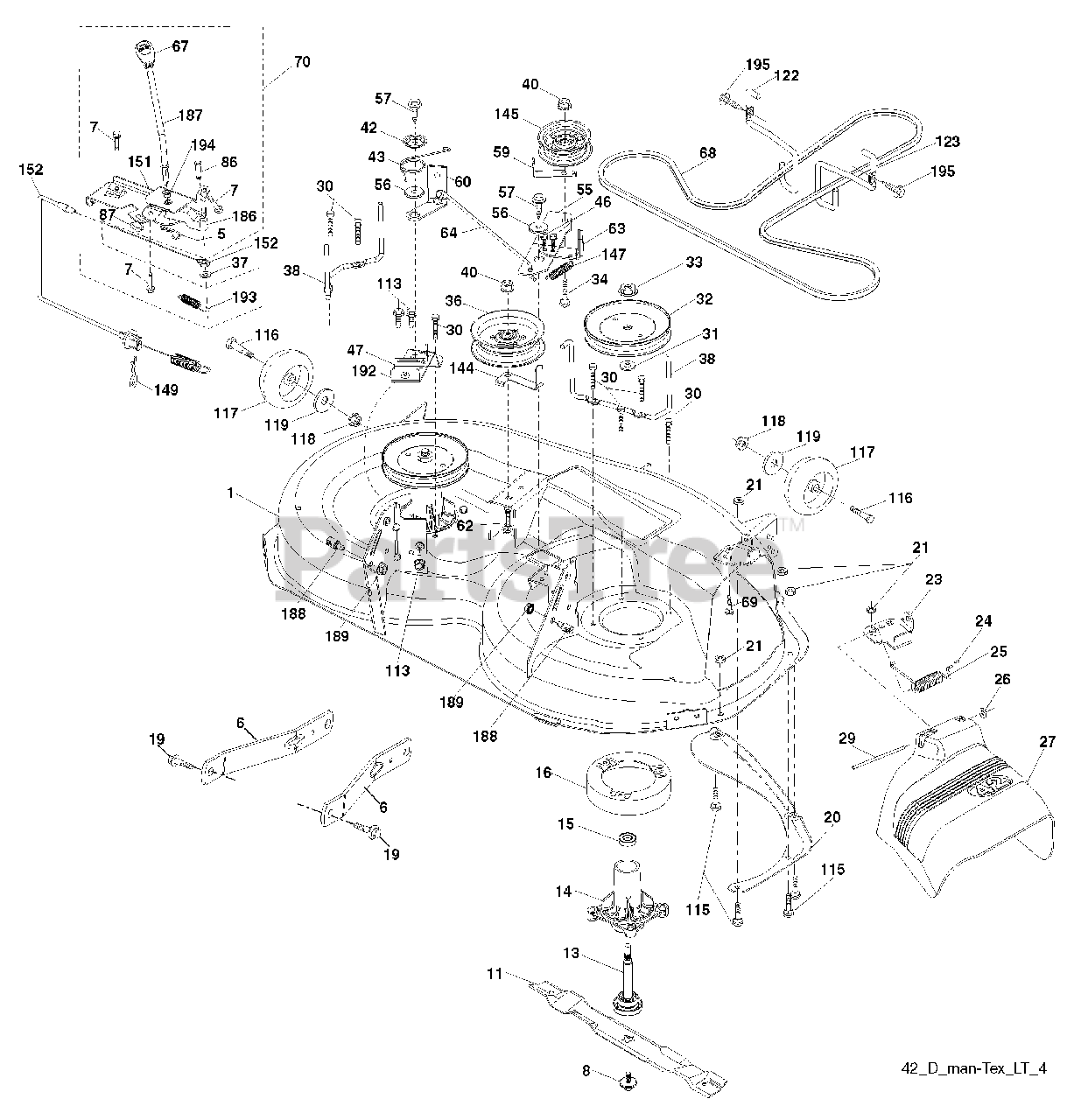

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 196495X421

Deck Weldment Mower

$

$

Not available

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 195186

Arm Suspension
(Superseded to 532195186)

$17.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Electrolux/AYP 193003

Bolt/Washer asm 7/16-20 unf
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 138971

Blade, 42" Hi-Lift (For bagging or discharge)
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 134149

Blade, 42" Mulching Std (For mulching mowers only)
(Superseded to 532134149)

$

$

Not available

11

Electrolux/AYP 139775

Blade, 42" Mulching Premium (For better wear when mulching) Shaft Assembly, Mandrel
(Superseded to 532139775)

$

$

Not available

13

Electrolux/AYP 192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 14

0

16

Electrolux/AYP 174493

Stripper, Mower Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 196539

Bolt, Shoulder
(Superseded to 532196539)

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 159770

Baffl e, Vortex
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 192557

Bracket, Defl ector
(Superseded to 532192557)

$9.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 197026

Spring, Torsion, Defl ector
(Superseded to 532197026)

$10.99

$

In Stock, Qty 15

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 193108X428

Shield, Defl ector
(Superseded to 532403004)

$44.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 187690

Washer, Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 195945

Pulley, Mandrel
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Electrolux/AYP 72110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 196106

Pulley, Idler, Flat
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 19131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 199189

Keeper Belt LH Mandrel

$

$

Not available

40

Murray 73900600

Nut, Lock Flg. 3/8-16 unc

$

$

Not available

42

Electrolux/AYP 198410

Spring Torsion Brake
(Superseded to 532198410)

$6.49

$

In Stock, Qty 8

0

43

Electrolux/AYP 197256

Spring Torsion Retainer
(Superseded to 532197256)

$6.49

$

In Stock, Qty 8

0

46

Electrolux/AYP 137729

Screw Thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

47

Electrolux/AYP 197250

Bracket Clutch Cable
(Superseded to 532197250)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 178515

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 197249

Arm, Idler
(Superseded to 532197249)

$

$

Not available

56

Electrolux/AYP 199092

Spacer, Retainer
(Superseded to 532199092)

$6.99

$

In Stock, Qty 11

0

57

Electrolux/AYP 17000616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

59

Electrolux/AYP 141043

Guard, Tuv Idler
(Superseded to 532141043)

$

$

Not available

60

Electrolux/AYP 197402

Arm Brake Mower
(Superseded to 597074201)

$14.99

$

In Stock, Qty 15

0

62

Electrolux/AYP 72110616

Bolt Rd Hd Sq Nk 3/8-16 unc x 2
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 199478

Arm Brake Mower
(Superseded to 532199478)

$17.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 199918

Link Brake Asm
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 199092

Spacer Retainer
(Superseded to 532199092)

$6.99

$

In Stock, Qty 11

0

67

Electrolux/AYP 198398X428

Handle Clutch Cable
(Superseded to 532403012)

$12.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 197253

V-Belt
(Superseded to 592855001)

$39.99

$

In Stock, Qty 9

0

69

Electrolux/AYP 72140505

Bolt
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 199779

Clutch Asm Manual
(Superseded to 532199779)

$72.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 197798

Pin Attachment Cable
(Superseded to 532406563)

$

$

Not available

87

Electrolux/AYP 197802

Switch Interlock Clutch Cable
(Superseded to 532197802)

$18.99

$

In Stock, Qty 7

0

88

Electrolux/AYP 193232

Screw 10-24 x 5/8
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 17000510

Bolt 5/16-18
(Superseded to 817000510)

$7.49

$

In Stock, Qty 12

0

115

Electrolux/AYP 72110505

Bolt Carr. 5/16-18 x 5/8
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 4898H

Bolt, Shoulder
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 188606

Wheel, Gauge
(Superseded to 589527401)

$11.99

$

In Stock, Qty 10

0

118

Electrolux/AYP 73930600

Nut, Crownlock 3/8-1
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 13/32 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 197258

Keeper Belt Engine LH
(Superseded to 532197258)

$

$

Not available

123

Electrolux/AYP 197259

Keeper Belt Engine RH
(Superseded to 532197259)

$

$

Not available

144

Electrolux/AYP 199204

Keeper Belt
(Superseded to 532199204)

$6.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 177968

Pulley Idler
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

147

Electrolux/AYP 401971

Spring Return
(Superseded to 532401971)

$5.99

$

In Stock, Qty 6

0

149

Electrolux/AYP 165898

Retainer Spring
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 199778

Bracket Clutch
(Superseded to 532199779)

$72.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 197257

Manual Clutch Cable
(Superseded to 532435111)

$34.99

$

In Stock, only 1 left!

0

186

Electrolux/AYP 197799

Arm Actuator
(Superseded to 532406563)

$

$

Not available

187

Electrolux/AYP 400426

Lever Control
(Superseded to 532199779)

$72.99

$

Usually ships in 3-10 days

0

188

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

189

Electrolux/AYP 73900500

Nut Lock Hex Flange
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

192

Electrolux/AYP 197260

Bracket Brake Stand LH
(Superseded to 532197260)

$

$

Not available

193

Electrolux/AYP 197801

Spring Plunger Activator
(Superseded to 532406563)

$

$

Not available

194

Electrolux/AYP 197797

Bearing Control Lever Clutch
(Superseded to 532406563)

$

$

Not available

195

Electrolux/AYP 17000612

Screw Hex Wsh THDR 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

195

Electrolux/AYP 192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft and shaft hardware only-pulley not included)

$56.99

$

In Stock, Qty 20+

0

195

Electrolux/AYP 402942

Replacement Mower, Complete

$

$

Not available
