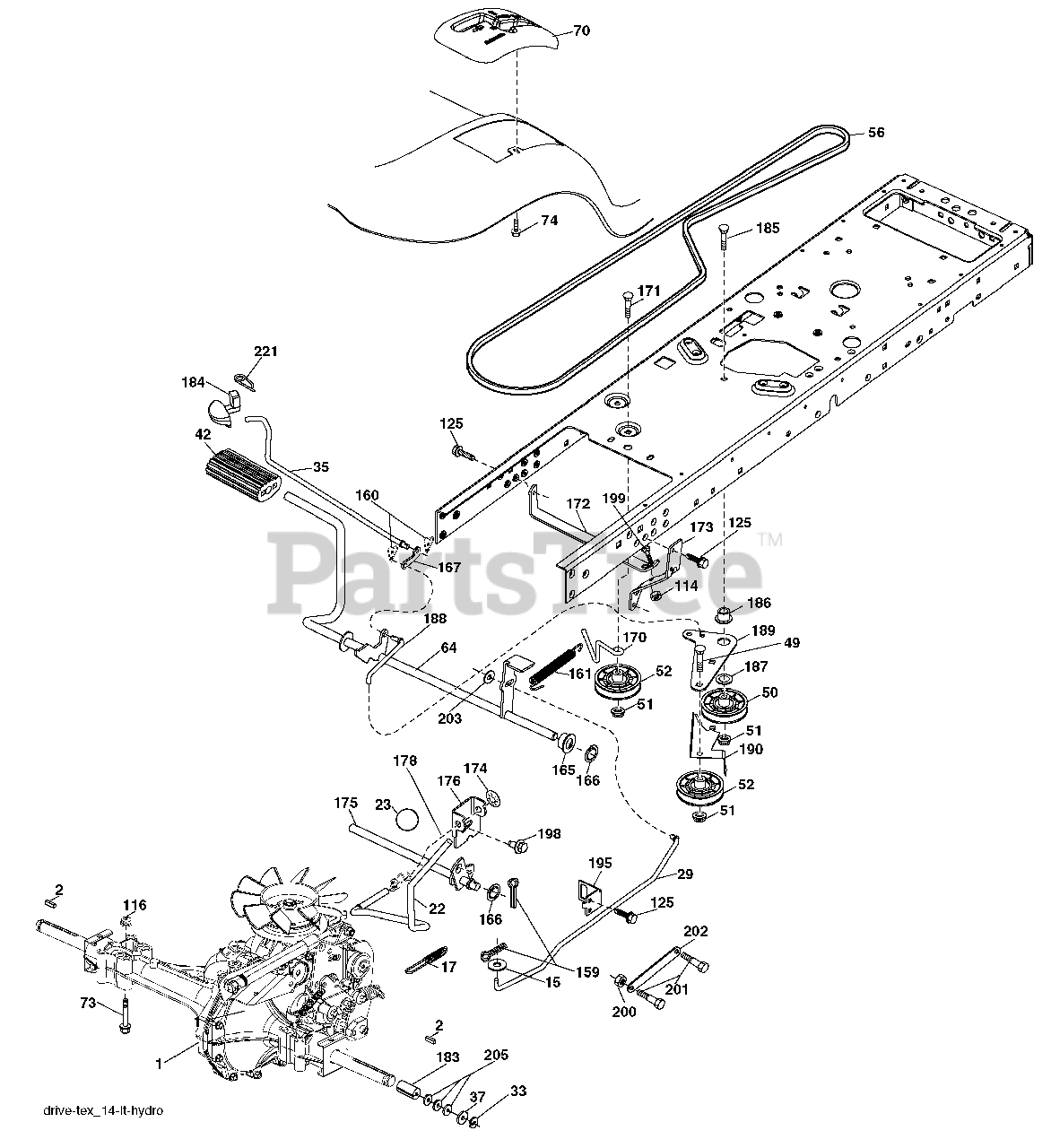

PB 20H42 YT (960420008-00) - Poulan Pro Lawn Tractor (2006-01) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Hydro HG0510

Note: (Order Parts from Transaxle Manufacturer)

$

$

Not available

2

Electrolux/AYP 123583X

Key
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

15

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 197296

Spring, Brake
(Superseded to 532197296)

$6.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 197660

Rod Shift
(Superseded to 532197660)

$182.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 174779

Knob
(Superseded to 583064501)

$7.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 197659

Rod, Brake
(Superseded to 532197659)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000001

Ring E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 197722

Rod, Brake, Park
(Superseded to 532197722)

$39.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 123533X

Cover, Foot Pedal
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 72110614

Bolt
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 194327

Pulley Idler Flat
(Superseded to 532194327)

$20.99

$

In Stock, Qty 13

0

51

Murray 73900600

Lock Nut 3/8-16

$

$

Not available

52

Electrolux/AYP 194326

Idler V-Groove 910" Offset
(Superseded to 532194326)

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 140218

V-Belt, Drive
(Superseded to 532140218)

$60.99

$

In Stock, only 1 left!

0

64

Electrolux/AYP 196200

Shaft Asm. Pedal Brake Control
(Superseded to 532196200)

$56.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 193220X428

Console Shift
(Superseded to 532411329)

$17.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 74490544

Bolt Hex Flghd 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 142432

Screw Hex WSH Hi-Lo 1/4 x 1/2 UNC
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 73800500

Nut Lock Hex W/INS 5/16-18UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

159

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 169484

Retainer Clip
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 195403

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 196212

Bushing
(Superseded to 532196212)

$6.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 197290

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 196211

Latch Brake Parking

$

$

Not available

170

Electrolux/AYP 194322

Keeper Belt Centerspan
(Superseded to 532194322)

$7.49

$

In Stock, only 1 left!

0

171

Electrolux/AYP 72110616

Bolt
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 197656

Strap Torque LH
(Superseded to 532197656)

$4.99

$

Usually ships in 3-10 days

0

173

Electrolux/AYP 197655

Strap Torque RH
(Superseded to 532197655)

$7.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 197289

Nut Push
(Superseded to 532197289)

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 197653

Shaft Asm
(Superseded to 532197653)

$

$

Not available

176

Electrolux/AYP 196214

Asm Clevis Rod Shift
(Superseded to 532196214)

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 197456

Spring Shift
(Superseded to 532197456)

$6.49

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 198403X428

Handle Parking Brake
(Superseded to 584464801)

$8.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 72110620

Bolt
(Superseded to 872110620)

$4.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 194321

Spacer Retainer
(Superseded to 532194321)

$9.49

$

In Stock, Qty 11

0

187

Electrolux/AYP 19133210

Washer
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 194317

Bellcrank Ground Drive
(Superseded to 532194317)

$

$

Not available

190

Electrolux/AYP 194318

Keeper Bellcrank Ground Drive
(Superseded to 532194318)

$8.99

$

In Stock, only 1 left!

0

195

Electrolux/AYP 198012

Bracket Rod Brake
(Superseded to 532198012)

$

$

Not available

198

Electrolux/AYP 199496

Screw 7/16-147 x 7/8 fl ange head
(Superseded to 532199496)

$5.99

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 72140508

Bolt RDHD SQNK 5/16-18UNC x1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

200

Electrolux/AYP 73930500

Nut Center Lock 5/16-18UNC
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

201

Electrolux/AYP 169612

Bolt Shoulder 5/16-18UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

202

Electrolux/AYP 197714

Link Trans
(Superseded to 583240801)

$4.99

$

Usually ships in 3-10 days

0

203

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

221

Electrolux/AYP 403187

Retainer Spring Clip Handle
(Superseded to 532403187)

$6.49

$

In Stock, only 3 left!

0
