PB 20H42 LT (960420050-00) - Poulan Pro Lawn Tractor (2008-03) Drive Parts Diagram

Lawn Tractor

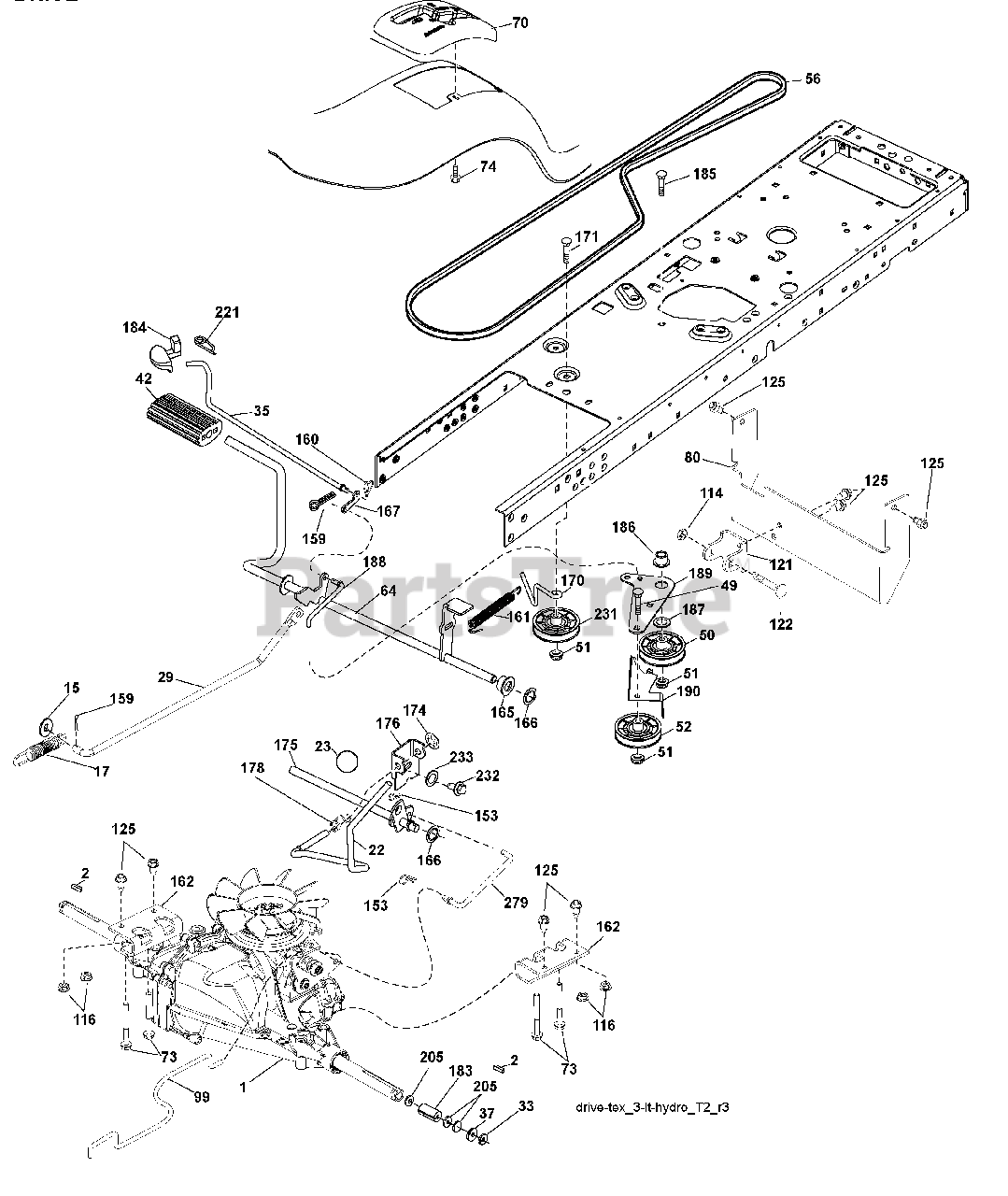

Drive Parts Diagram

  • Title

1

Transaxle, Hydro Gear T2 (See Transaxle Breakdown)

$

$

Not available

2

Electrolux/AYP 123583X

Key Square
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 197296

Spring, Brake
(Superseded to 532197296)

$6.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 197660

Rod Shift
(Superseded to 532197660)

$182.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 409154X421

Knob
(Superseded to 532411367)

$14.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 408391

Rod, Brake
(Superseded to 532423239)

$45.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 12000001

Ring E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 197722

Rod, Brake, Park
(Superseded to 532197722)

$39.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 72110614

Bolt
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 194327

Pulley Idler Flat
(Superseded to 532194327)

$20.99

$

In Stock, Qty 15

0

51

Murray 73900600

Lock Nut 3/8-16

$

$

Not available

52

Electrolux/AYP 194326

Idler V-Groove 910" Offset
(Superseded to 532194326)

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 125907X

V-Belt, Drive
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

64

Electrolux/AYP 196200

Shaft Asm. Pedal Brake Control
(Superseded to 532196200)

$56.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 193220X428

Console
(Superseded to 532411329)

$17.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 74490544

Bolt Hex 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 142432

Screw 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 408393

Strap Torque

$8.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 408418

Rod Spring Bypass
(Superseded to 532408418)

$9.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 73800500

Nut Lock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

121

Electrolux/AYP 175611

Bracket Strap Torque
(Superseded to 532175611)

$7.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 72010520

Bolt 5/16-18 x 2.50
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

153

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Electrolux/AYP 169484

Retainer Clip
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 195403

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

162

Electrolux/AYP 408784

Adapter, Transaxle T2
(Superseded to 532408784)

$7.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 196212

Bushing
(Superseded to 532196212)

$6.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 197290

Nut Push .625
(Superseded to 532429164)

$6.49

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 405257

Latch Brake Parking
(Superseded to 532405257)

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 194322

Keeper Belt Centerspan
(Superseded to 532194322)

$7.49

$

In Stock, only 1 left!

0

171

Electrolux/AYP 72110622

Bolt
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

174

Electrolux/AYP 197289

Nut Push
(Superseded to 532197289)

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 408539

Shaft Asm Shift
(Superseded to 532408539)

$26.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 196214

Arm Clevis Rod Shift
(Superseded to 532196214)

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 197456

Spring Shift
(Superseded to 532197456)

$6.49

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 156972

Spacer Axle
(Superseded to 532156972)

$6.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 198403X505

Handle Parking Brake
(Superseded to 532411283)

$

$

Not available

185

Electrolux/AYP 72110620

Bolt
(Superseded to 872110620)

$4.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 194321

Spacer Retainer
(Superseded to 532194321)

$9.49

$

In Stock, Qty 11

0

187

Electrolux/AYP 19133210

Washer
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 194317

Bellcrank Ground Drive
(Superseded to 532194317)

$

$

Not available

190

Electrolux/AYP 194318

Keeper Bellcrank Ground Drive
(Superseded to 532194318)

$8.99

$

In Stock, only 1 left!

0

205

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

231

Electrolux/AYP 407287

Idler V-Groove 1.688" Offset
(Superseded to 532407287)

$22.99

$

In Stock, only 1 left!

0

232

Electrolux/AYP 74780716

Bolt 7/16-14 x 1 Gr 5
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 405296

Washer Serrated
(Superseded to 532405296)

$6.49

$

Usually ships in 3-10 days

0

279

Electrolux/AYP 408538

Link Shift
(Superseded to 532408538)

$15.99

$

Usually ships in 3-10 days

0
