PB 20A46YT (960480076-00) - Poulan Pro Lawn Tractor (2013-11) ENGINE Parts Diagram

Lawn Tractor

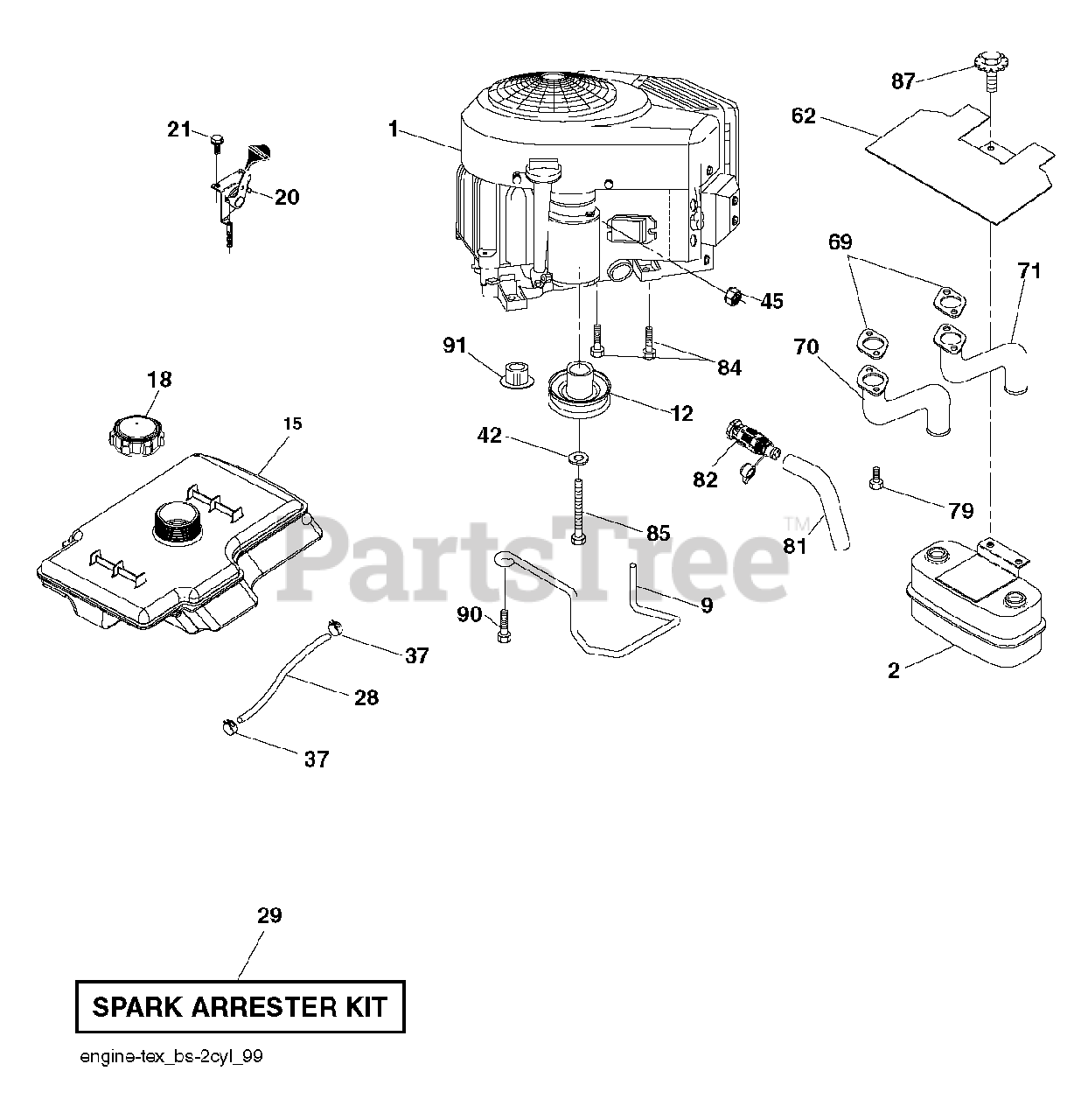

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NUMBER 40R877-0015-G1 (586313501)

$

$

Not available

2

Poulan 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, only 1 left!

0

12

Poulan 532405140

PULLEY.ENGINE.5.0.PD

$87.99

$

Usually ships in 3-10 days

0

15

Poulan 532418179

No Description Available
(Superseded to 583369101)

$

$

Not available

18

Poulan 532430218

CAP.ASM.FUEL.TANK.3"BLACK
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, only 1 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Poulan 532142158

Fuel Line
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Poulan 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Poulan 581881101

EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 532159955)

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Poulan 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK
(Superseded to 532160589)

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Poulan 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Poulan 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0
