PB-202 - Echo Backpack Blower (SN: 0040502 - 9999999) Carburetor Parts Diagram

Backpack Blower

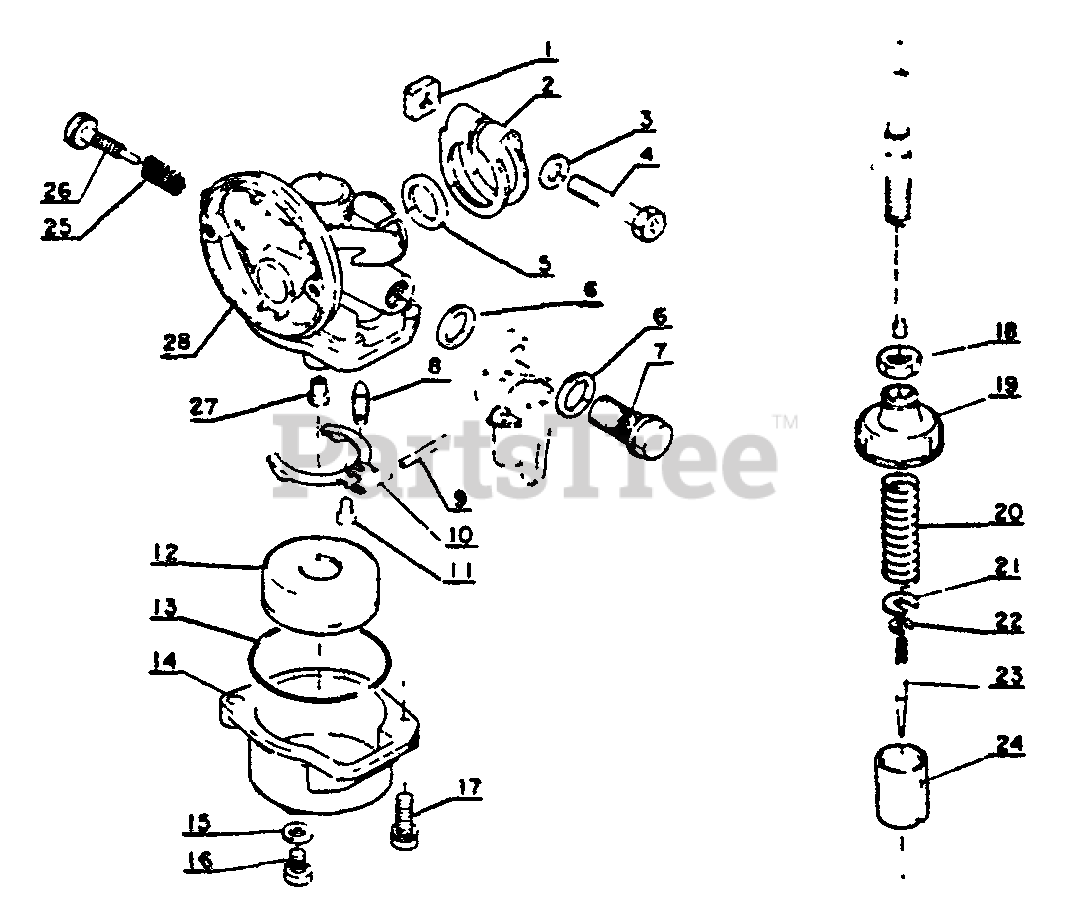

Carburetor Parts Diagram

  • Title

Echo 12000000660

CARBURETOR
(Superseded to 12000000661)

Note: Consisting of 1-28

$

$

Not available

1

Echo 12015101321

NUT
(Superseded to 12015110210)

$

$

Not available

2

Echo 12014610210

CLAMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 12014701321

BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 12014901820

WASHER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 12013010210

GASKET
(Superseded to Discontinued)

$

$

Not available

7

Echo 12013100120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

8

Echo 12010210210

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12013210210

PIN, METERING LEVER
(Superseded to 12013210211)

$

$

Not available

10

Echo 12012110210

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

11

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

12

Echo 12013310210

FLOAT
(Superseded to Discontinued)

$

$

Not available

13

Echo 12012310210

O-RING
(Superseded to Discontinued)

$

$

Not available

14

Echo 12012410210

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

15

Echo 12013600120

GASKET, DRAIN

$0.99

$

In Stock, only 1 left!

0

16

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 9

0

17

Echo 90024104012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12011104730

NUT
(Superseded to Discontinued)

$

$

Not available

19

Echo 12011310210

COVER - TOP
(Superseded to 12011310211)

$15.99

$

In Stock, only 1 left!

0

20

Echo 12011401820

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 12011500120

SEAT, SPRING
(Superseded to 12011508020)

$

$

Not available

22

Echo 12011610210

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

23

Echo 12011700660

NEEDLE, JET
(Superseded to 12010300660)

$

$

Not available

24

Echo 12011810210

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12016001321

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

26

Echo 12015900660

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

27

Echo 12012200660

VALVE, MIXTURE

$12.99

$

In Stock, only 1 left!

0

28

------------------

BODY, CARBURETOR

$

$

Not available
