PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Starter Parts Diagram

Backpack Blower

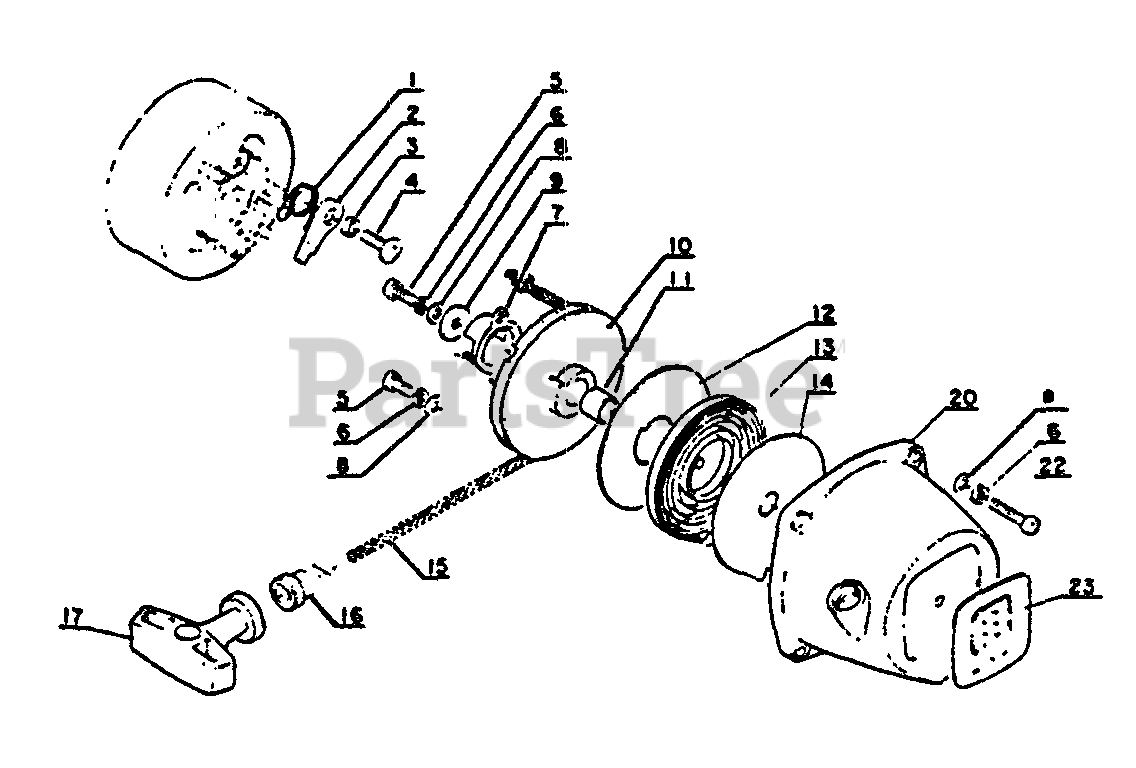

Starter Parts Diagram

  • Title

1

Echo 17723404631

SPRING, RETURN
(Superseded to 17723404632)

$1.49

$

In Stock, Qty 8

0

2

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

4

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

4

Echo 17720010210

STARTER ASSY
(Superseded to Discontinued)

Note: Includes Items 5 thru 20 except 18 and 19

$

$

Not available

5

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 17724304630

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

8

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

10

Echo 17721504630

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721604630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17724204630

PLATE, STARTER

$2.49

$

Usually ships in 2-4 days

0

13

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

14

Echo 17722104630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 5

0

16

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

20

Echo 17720904630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

22

Echo 90022004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

23

Echo 89001200660

LABEL - ECHO
(Superseded to 89001200662)

$1.49

$

Usually ships in 2-4 days

0
