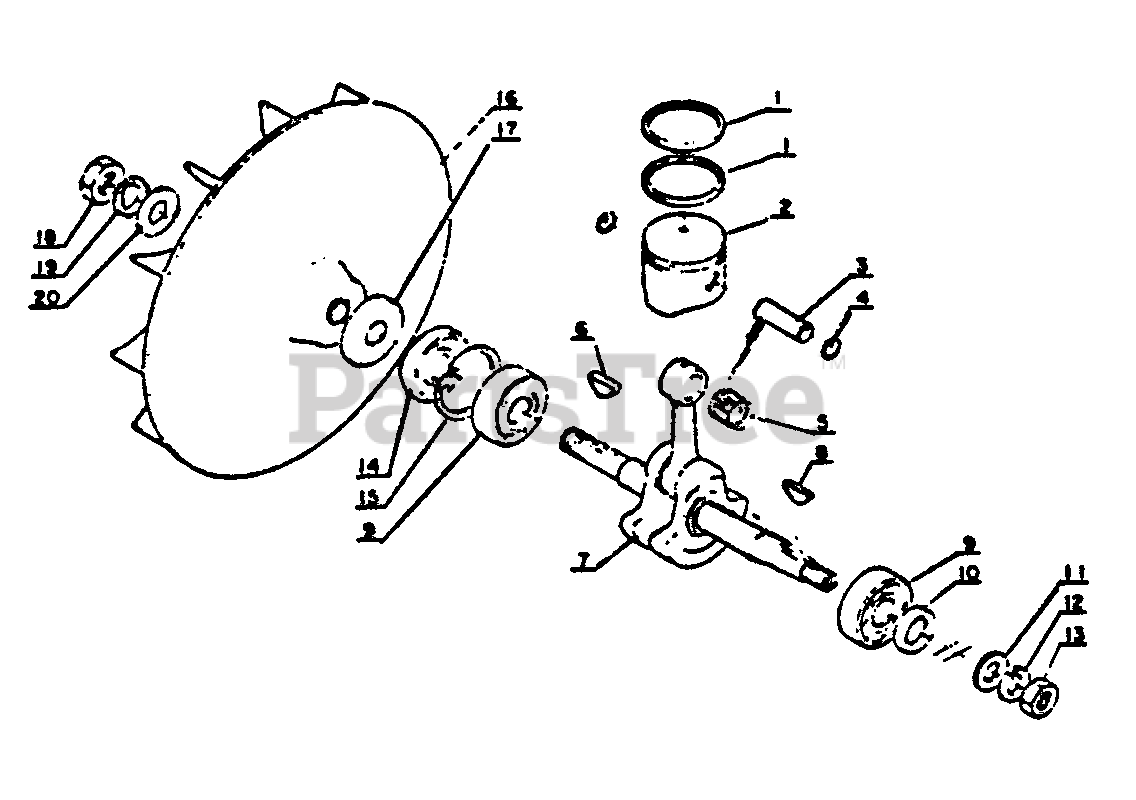

PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Crankshaft, Piston, Fan Parts Diagram

Backpack Blower

Crankshaft, Piston, Fan Parts Diagram

  • Title

1

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

2

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

3

Echo 10001310210

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

4

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

5

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

6

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

7

Echo 10010010210

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

9

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

10

Echo 10021204630

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

11

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

14

Echo 10021203930

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

15

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

16

Echo 20001010210

FAN
(Superseded to Discontinued)

$

$

Not available

17

Echo 10013210210

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

18

Echo 90050200010

NUT - 10
(Superseded to Discontinued)

$

$

Not available

19

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

20

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0
