PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Air Cleaner Parts Diagram

Backpack Blower

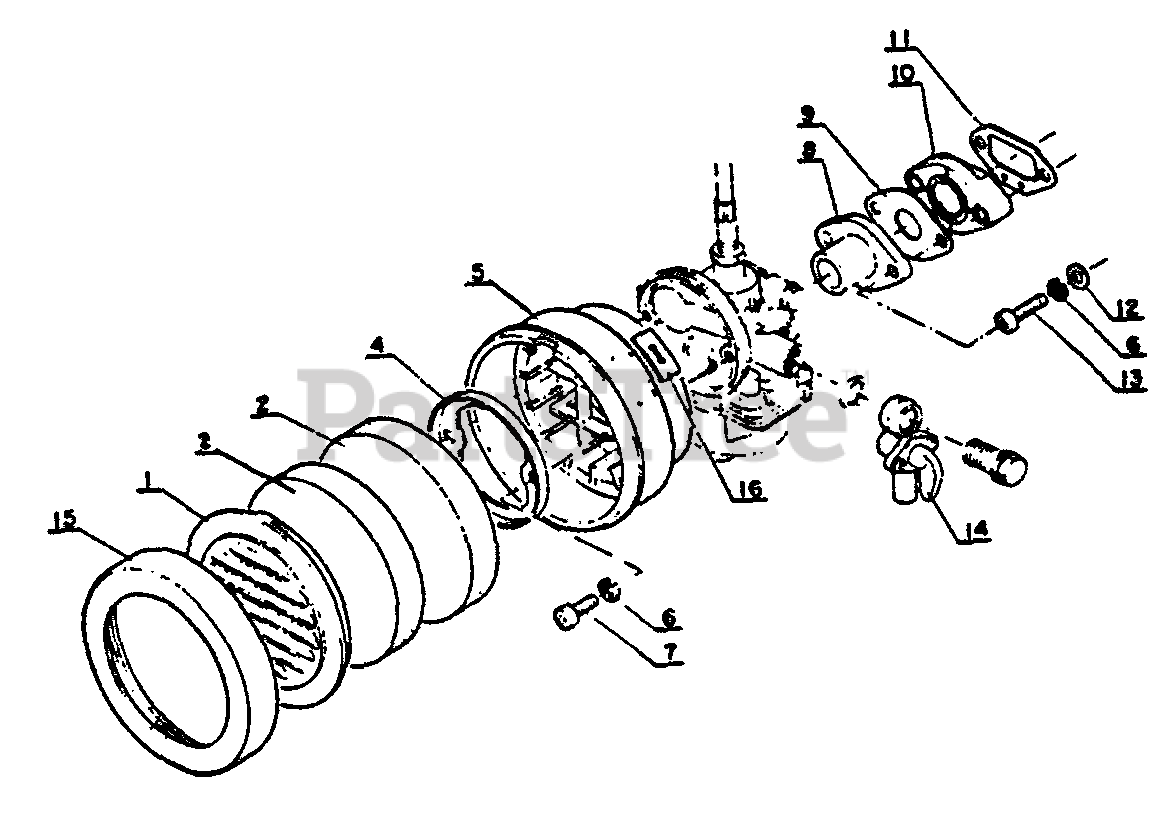

Air Cleaner Parts Diagram

  • Title

1

Echo 13031310211

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031010210

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

4

Echo 13042000110

BRACKET, AIR CLEANER

$1.99

$

In Stock, only 1 left!

0

5

Echo 13031410211

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13051004730

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13001604730

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 13001710210

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 13001004630

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

12

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

13

Echo 90022004025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0

14

Echo 13220000511

FUEL VALVE ASSY
(Superseded to 13220000512)

$12.99

$

Usually ships in 2-4 days

0

15

Echo 13034110210

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

16

Echo 89012100310

LABEL - CHOKE
(Superseded to 890121-00660)

$

$

Not available
