PB-201 - Echo Handheld Blower (SN: 09001001 - 09999999) Engine, Short Block, Ignition Parts Diagram

Handheld Blower

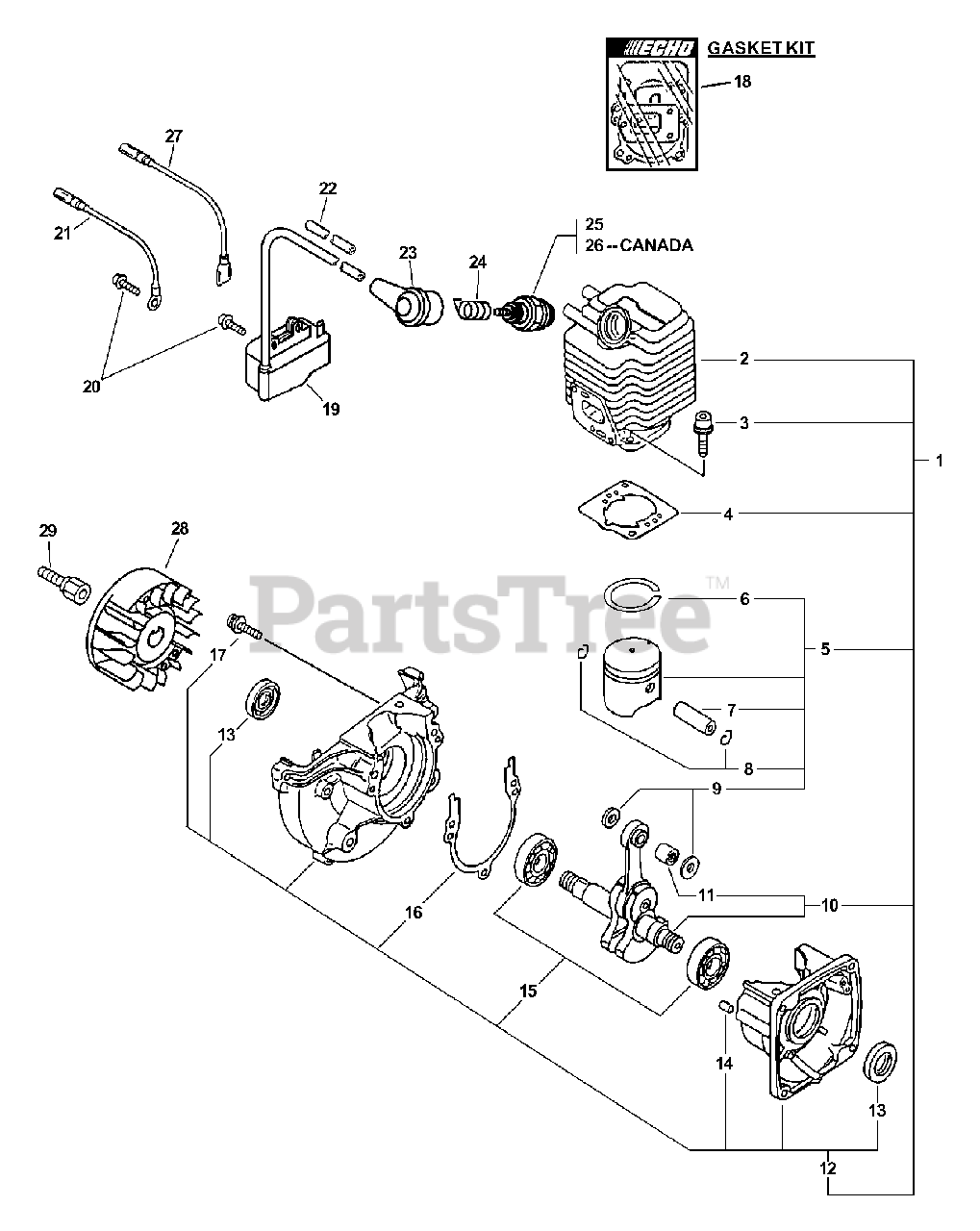

Engine, Short Block, Ignition Parts Diagram

  • Title

1

Echo SB1076

SHORT BLOCK -- SB1076

Note: INCLUDES ITEMS 2-17

$168.99

$

Usually ships in 2-4 days

0

2

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

5

Echo P021007712

PISTON KIT

Note: Includes ITEMS 6-9

$50.99

$

In Stock, only 3 left!

0

6

Echo A101000090

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes ITEM 11

$150.99

$

Usually ships in 2-4 days

0

11

Echo V553000030

BEARING, NEEDLE

$9.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

18

Echo P021008590

GASKET KIT

$35.99

$

In Stock, only 1 left!

0

19

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$70.99

$

In Stock, Qty 20+

0

20

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

21

Echo 16202120560

LEAD - GROUND

$9.99

$

Usually ships in 2-4 days

0

22

Echo V471000660

TUBE, INSULATOR

$0.99

$

In Stock, Qty 5

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

26

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

27

Echo V485000040

LEAD - IGNITION

$9.99

$

Usually ships in 2-4 days

0

28

Echo A409000210

FLYWHEEL

$54.99

$

In Stock, only 1 left!

0

29

Echo 20001105661

HUB, FAN

$15.99

$

Usually ships in 2-4 days

0
