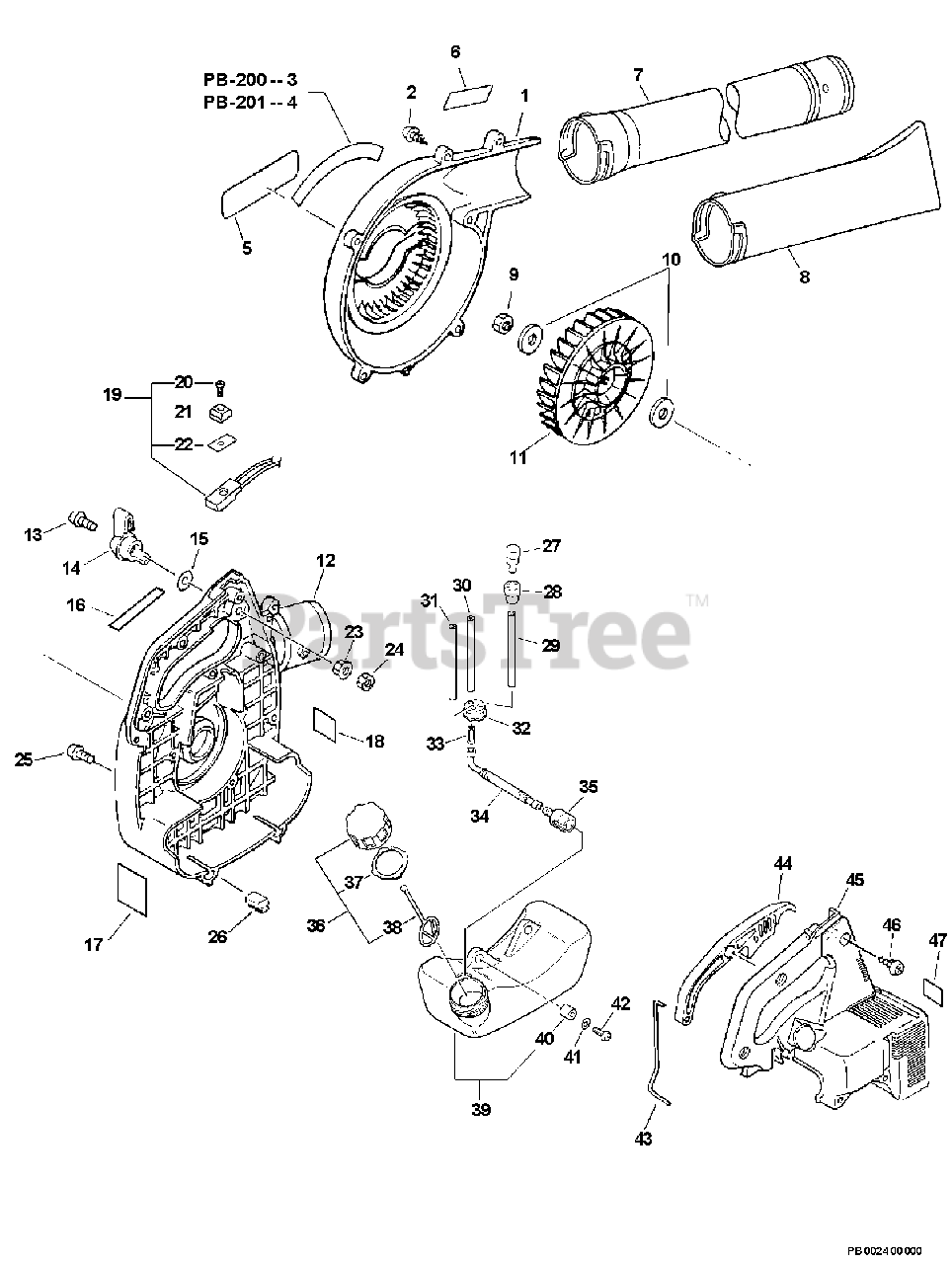

PB-200 - Echo Handheld Blower (SN: 05001001 - 05999999) Fan Case, Blower Pipes, Switch, Fuel System Parts Diagram

Handheld Blower

Fan Case, Blower Pipes, Switch, Fuel System Parts Diagram

  • Title

1

Echo 20011120561

COVER, FAN - LEFT
(Superseded to 20011120562)

$23.99

$

In Stock, only 1 left!

0

2

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

3

Echo X503003730

LABEL - MODEL PB-200
(Superseded to X503007250)

$

$

Not available

4

Echo X503001310

LABEL - MODEL PB-201
(Superseded to X503007260)

$0.99

$

In Stock, only 1 left!

0

5

Echo 89011820560

LABEL - ECHO
(Superseded to X502000300)

$4.99

$

In Stock, Qty 9

0

6

Echo X508000170

LABEL - NOISE
(Superseded to X508000120)

$0.99

$

In Stock, Qty 6

0

7

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$12.99

$

In Stock, Qty 11

0

8

Echo 21001420560

TUBE, BLOWER - NOZZLE
(Superseded to 21001420561)

$9.99

$

In Stock, Qty 20+

0

9

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

10

Echo 10013205660

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

11

Echo 20001020560

FAN

$17.99

$

In Stock, only 1 left!

0

12

Echo P021003720

COVER, FAN - RIGHT
(Superseded to P021003721)

$23.99

$

Usually ships in 2-4 days

0

13

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

14

Echo 17805420560

LEVER, THROTTLE - ORANGE

$10.99

$

Usually ships in 2-4 days

0

15

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 89016009461

LABEL - CAUTION

$1.99

$

In Stock, Qty 20+

0

17

Echo 89022808760

LABEL - CAUTION -- SPANISH
(Superseded to 89016009461)

Note: REPLACED BY ITEM 16

$1.99

$

In Stock, Qty 20+

0

18

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

Note: REPLACED BY ITEM 16

$1.99

$

In Stock, Qty 20+

0

19

Echo 16340120561

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 20-22

$10.99

$

In Stock, only 1 left!

0

20

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

22

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 14

0

23

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

24

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 13

0

25

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

26

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

27

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

28

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

29

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

30

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

31

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: Included In RePower KIT

$2.99

$

In Stock, Qty 20+

0

32

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

33

Echo 13201103360

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 20+

0

34

Echo 13201212360

PIPE, FUEL - CORRUGATED
(Superseded to 13201212361)

$3.99

$

In Stock, Qty 20+

0

35

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

36

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 37-38

$6.49

$

In Stock, Qty 7

0

37

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

38

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

39

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes ITEM 40

$24.99

$

In Stock, only 3 left!

0

40

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

41

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

42

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

43

Echo 17801120561

ROD, THROTTLE

$6.49

$

In Stock, Qty 20+

0

44

Echo 17801020560

TRIGGER, THROTTLE - ORANGE

$7.49

$

In Stock, Qty 5

0

45

Echo A190000032

COVER, ENGINE - GRAY

$19.99

$

In Stock, only 1 left!

0

46

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

47

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
