PB 195H42LT (960420136-01) - Poulan Pro Lawn Tractor (2011-07) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

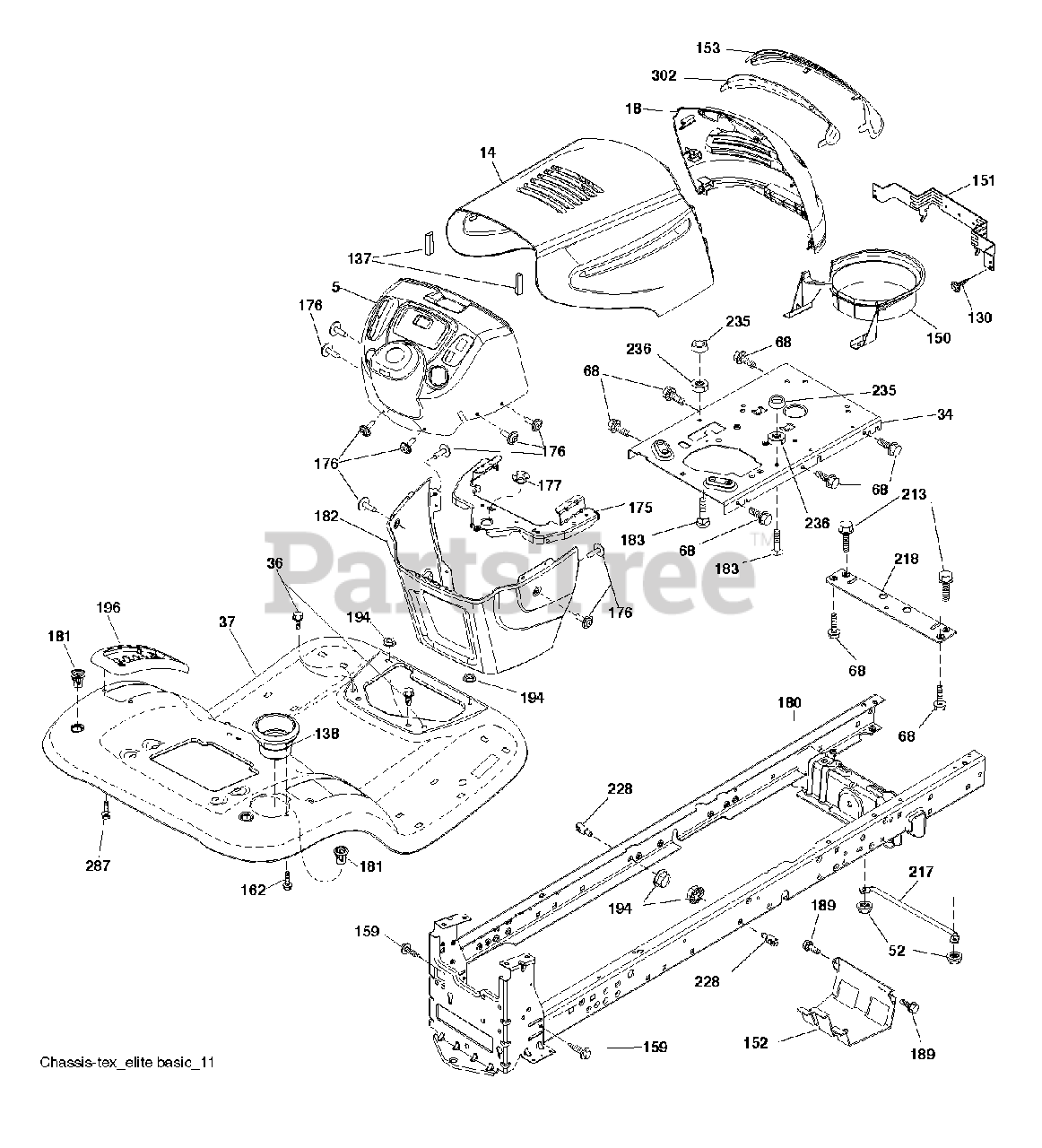

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Poulan 532411764

DASH.P/L.TEX.CBL.CL.N/CHK.BLAC

$66.99

$

Usually ships in 3-10 days

0

14

Poulan 532185847

HOOD.STEEL.ELITE.YELLOW
(Superseded to 587483801)

$

$

Not available

18

Poulan 532426792

GRILLE.ELITE.BASIC.LT.BLACK

$74.99

$

Usually ships in 3-10 days

0

34

Poulan 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532436523

(Superseded to 532414872)

$

$

Not available

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

150

Poulan 532184461

DUCT.INTAKE.AIR.KAW

$28.99

$

Usually ships in 3-10 days

0

151

Poulan 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

152

Poulan 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Poulan 532189837

LENS.GRILLE.BASIC.BAR.LT.CLR

$

$

Not available

159

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Poulan 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Poulan 532195457

CHASSIS
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 532193057

DASH.LOWER.LT.CCS

$96.99

$

Usually ships in 3-10 days

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Poulan 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

213

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Poulan 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Poulan 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

287

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

302

Poulan 532183823

INSERT.LENS.REFLECTIVE.LEFT

$15.99

$

Usually ships in 3-10 days

0
