PB 195H42 LT (960420120-00) - Poulan Pro Lawn Tractor (2010-01) Engine Parts Diagram

Lawn Tractor

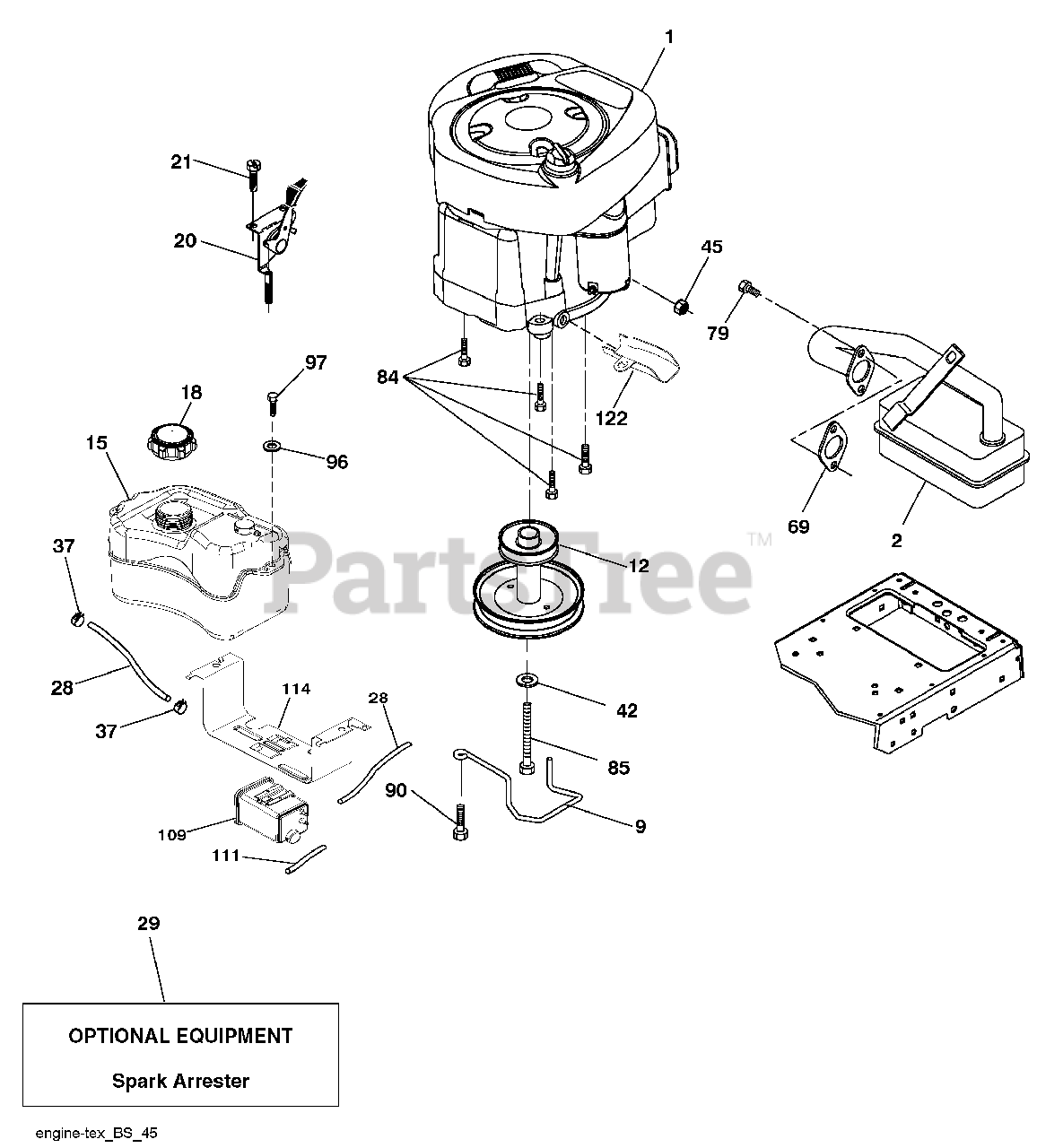

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 31P677-1373-G1

$

$

Not available

2

Electrolux/AYP 137352

Muffler
(Superseded to 532137352)

$45.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 194320

Keeper Belt Engine
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

12

Electrolux/AYP 405471

Pulley Engine
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 430646

Tank Fuel 1.50
(Superseded to 532430646)

$364.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 430219

Cap Fuel
(Superseded to 532430219)

$62.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 170545

Control Throttle/Choke
(Superseded to 583045801)

$40.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 416358

Screw #10 x 0.750
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Electrolux/AYP 401137

Fuel Line
(Superseded to 532401137)

$14.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Spark Arrester Kit
(Superseded to 532137180)

$

$

Not available

37

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

45

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

69

Electrolux/AYP 165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 192334

Screw Socket Hd 5/16-18 x .75
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

84

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

85

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Electrolux/AYP 17000616

Screw 3/8-16 x 1.0
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

96

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 17670412

Screw 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 414114

Canister Carbon Filter Asm.

$

$

Not available

111

Electrolux/AYP 414119

Purge Line Carb
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0

114

Electrolux/AYP 414116

Cradle Canister Carbon

$

$

Not available

122

Electrolux/AYP 421922

Extension Drain Oil
(Superseded to 532421922)

$40.99

$

In Stock, Qty 8

0
