PB 195H42 LT (960420107-03) - Poulan Pro Lawn Tractor (2010-05) Steering Parts Diagram

Lawn Tractor

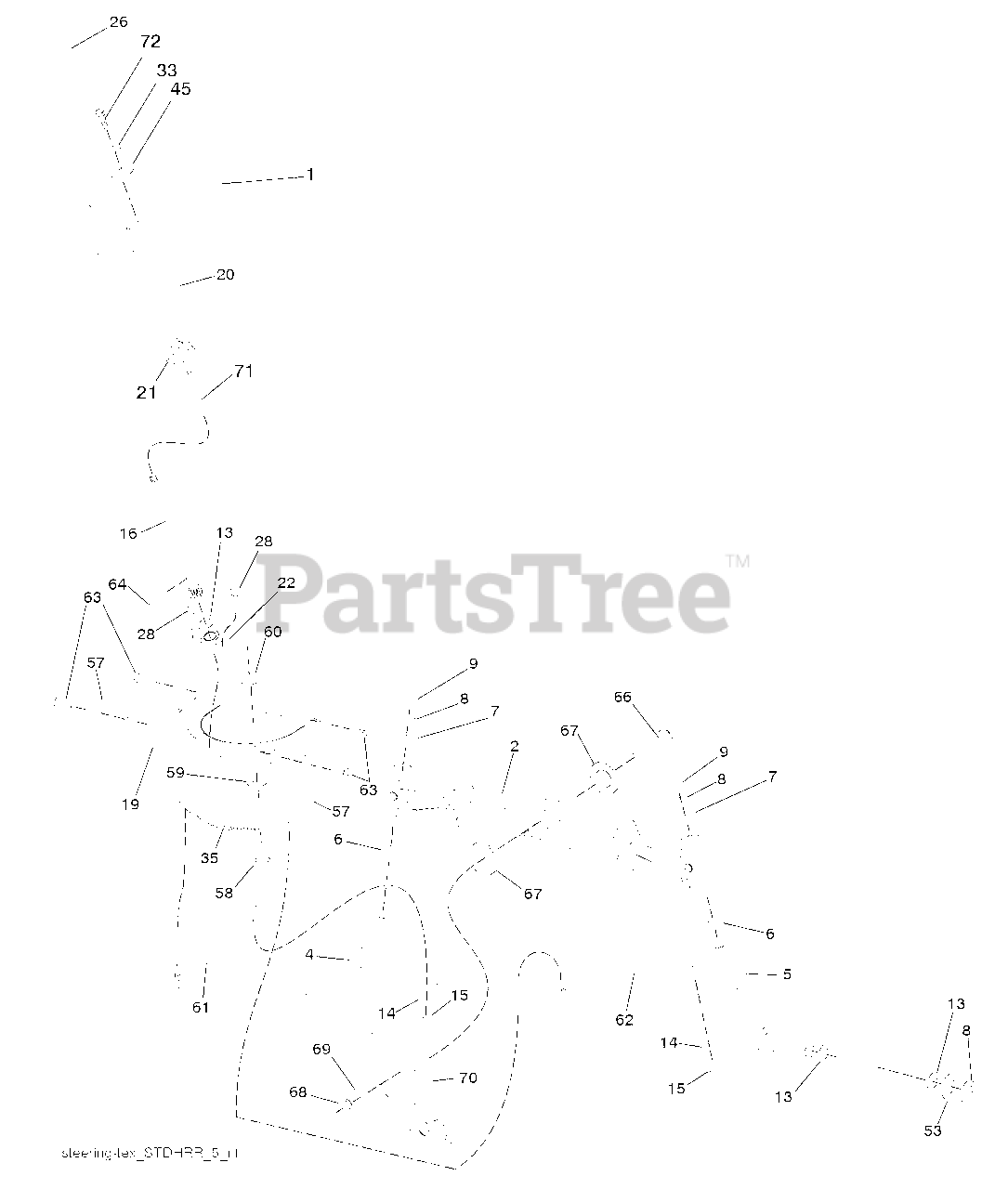

Steering Parts Diagram

  • Title

1

Electrolux/AYP 532424551

Wheel, Steering

$100.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532195968

Axle Asm., Front
(Superseded to 532413591)

$145.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 532403087

Spindle Asm., LH
(Superseded to 596873601)

$17.99

$

In Stock, Qty 12

0

5

Electrolux/AYP 532403088

Spindle Asm., RH
(Superseded to 596873701)

$9.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 532124931

Washer Thrust 0.75 x 1.23
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 812000029

Ring, Clip #T5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0

13

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040600

Washer Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873540600

Nut, Crown Lock 3/8-24 unf

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532429374

Shaft Steering
(Superseded to 587738903)

$51.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532194729

Plate Steering

$18.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532411291

Boot, Steering

$17.99

$

In Stock, Qty 18

0

21

Electrolux/AYP 532186737

Adapter, Wheel Steering
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

22

Electrolux/AYP 532420537

Strg. Supt. Lower
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Electrolux/AYP 532424691

Insert, Wheel Steering

$7.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 810040500

Washer Lock 5/16

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532194732

Gear, Sector Plate

$31.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 819113812

Washer 11/32 x 2-3/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532188967

Washer Hardened .793 x 1.637 x .060

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 532407465

Bracket Upstop

$6.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 532194747

Bolt Shoulder Sector Pivot CFM

$9.49

$

In Stock, only 3 left!

0

59

Electrolux/AYP 532194748

Washer Thrust Sector Steering

$7.49

$

In Stock, only 3 left!

0

60

Electrolux/AYP 873971000

Nut Flange Lock 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Electrolux/AYP 532194740

Draglink, LH
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532194741

Draglink, RH
(Superseded to 597047902)

$13.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Electrolux/AYP 532199849

Retainer Clip Spring Steering

$6.49

$

In Stock, Qty 8

0

66

Electrolux/AYP 871020748

Bolt Hex Fghd 7/16-14 x 3 Serr

$6.49

$

In Stock, only 4 left!

0

67

Electrolux/AYP 532194737

Bushing PM Front Axle

$

$

Not available

68

Electrolux/AYP 873900700

Nut Lock Flange 7/16-14 Gr. 5

$7.49

$

In Stock, Qty 13

0

69

Electrolux/AYP 532199162

Washer 1.5 x .505 x .118

$6.49

$

In Stock, only 1 left!

0

70

Electrolux/AYP 532196197

Bracket Deck Susp. Front
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532190752

Shaft Ext. Steering

$17.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 532428982

Bolt 5/16-18 x 4 W/Patch

$4.99

$

Usually ships in 3-10 days

0
