PB 195H42 LT (960420107-03) - Poulan Pro Lawn Tractor (2010-05) Chassis Parts Diagram

Lawn Tractor

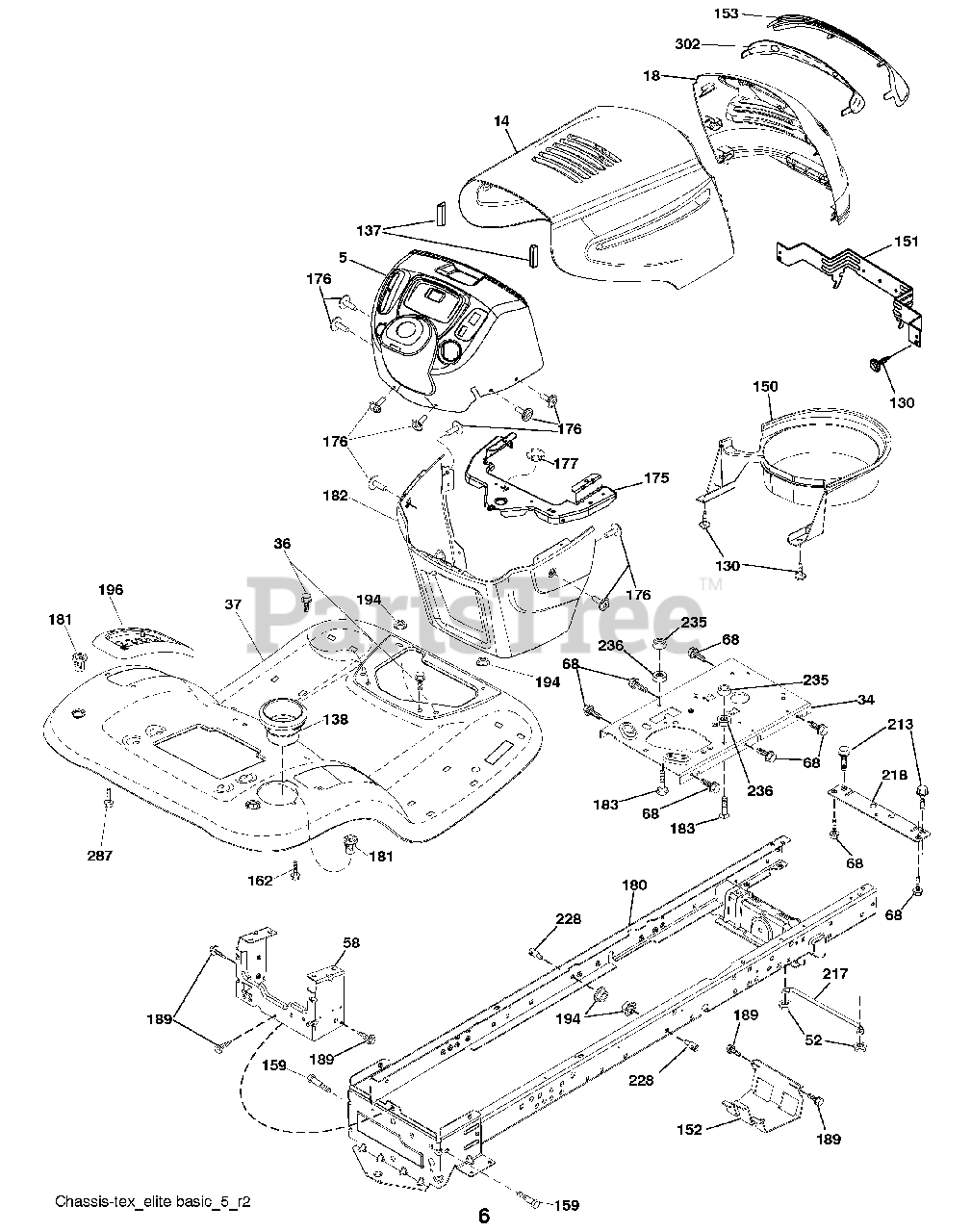

Chassis Parts Diagram

  • Title

5

Electrolux/AYP 532411764

Dash

$66.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532185847

Hood
(Superseded to 587483801)

$

$

Not available

18

Electrolux/AYP 532426792

Grille

$74.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532196125

Plate Engine
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532436523

Fender
(Superseded to 532414872)

$

$

Not available

52

Electrolux/AYP 873680500

Nut Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 532412280

Drawbar Upper

$46.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 817490508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 532416358

Screw #10 x 0.750
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Electrolux/AYP 532184921

Bumper Hood

$7.49

$

In Stock, Qty 9

0

138

Electrolux/AYP 532409730

Cupholder

$7.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 532184461

Duct Heat Hood

$28.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 532407807

Bracket Pivot

$31.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532199535

Shield Browning

$

$

Not available

153

Electrolux/AYP 532189837

Lens Grille

$

$

Not available

159

Electrolux/AYP 817000612

Screw Hexwsh Thdrol 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 532142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532193243

Crossmember

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532400776

Screw 10-24 x 5/8 Wshd Qdrx

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532195228

Bushing Steering

$5.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 532415063

Chassis

$193.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 532404796

Bushing Mtg. Fender Crgo.
(Superseded to 532403025)

$

$

Not available

182

Electrolux/AYP 532193057

Dash Lower

$96.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 874520520

Bolt 5/16-18 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

194

Electrolux/AYP 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 532414579

Console Asm. Deck Lift

$37.99

$

In Stock, only 1 left!

0

213

Electrolux/AYP 874760512

Bolt 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Electrolux/AYP 532409167

Rod Pivot Hood

$13.99

$

In Stock, only 2 left!

0

218

Electrolux/AYP 532196395

X-Piece Hood Step

$7.99

$

Usually ships in 3-10 days

0

228

Electrolux/AYP 532195161

Stud Fastener

$

$

Not available

235

Electrolux/AYP 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 873930500

Nut Center Lock 5/16-18

$7.49

$

In Stock, only 1 left!

0

287

Electrolux/AYP 817600406

Screw 1/4-20 x 3/8

$6.49

$

Usually ships in 3-10 days

0

302

Electrolux/AYP 532183823

Insert Lens Reflective

$15.99

$

Usually ships in 3-10 days

0
