PB 195A46LT (960420147-01) - Poulan Pro Lawn Tractor (2012-12) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

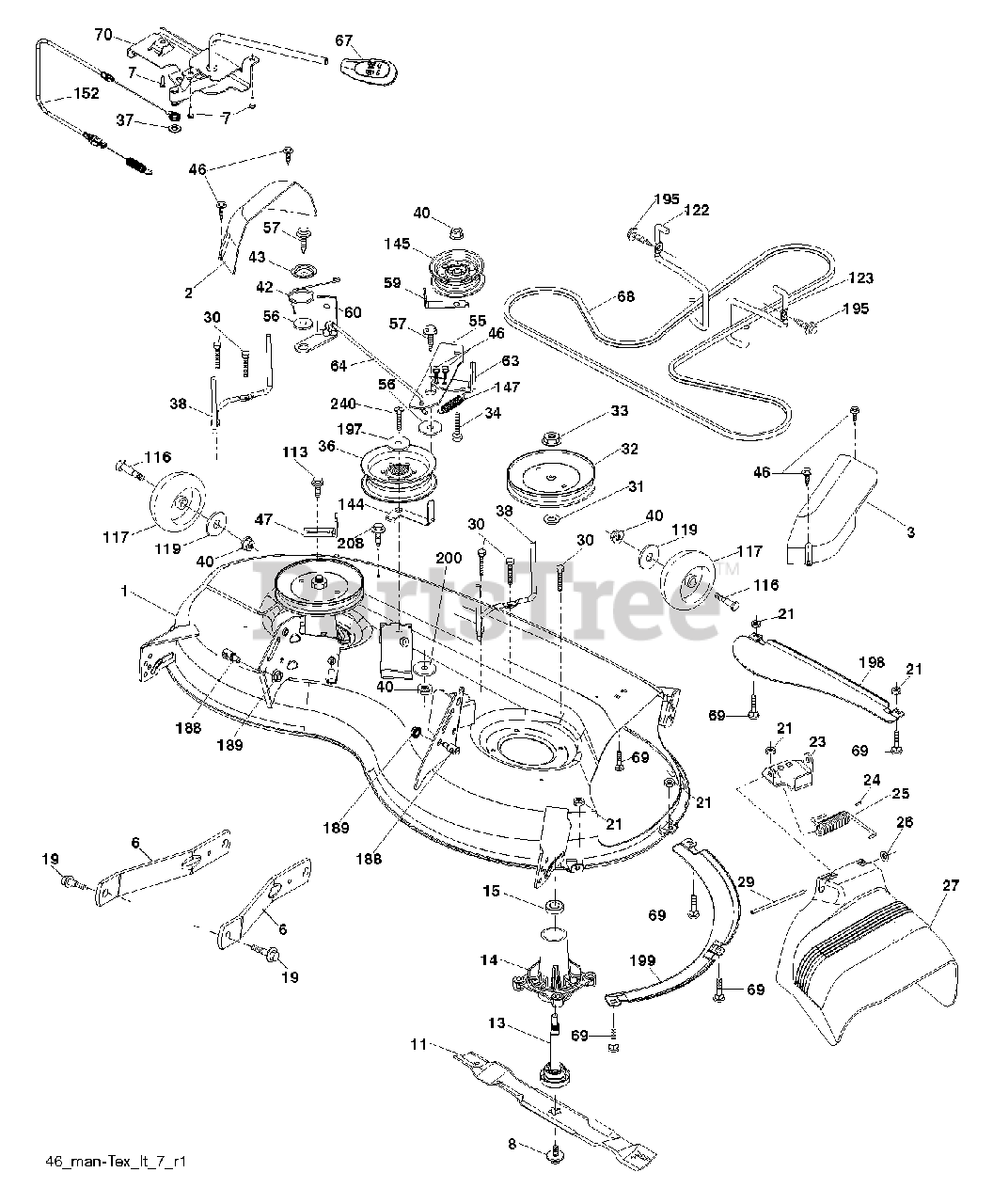

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532441616

$

$

Not available

2

Poulan 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 3 left!

0

3

Poulan 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, only 4 left!

0

6

Poulan 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

Poulan 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

$

$

Not available

Poulan 532134149

BLADE.42".MULCH

$

$

Not available

Poulan 532424752

BLADE.42SP"3N1.
(Superseded to 532422719)

$20.99

$

In Stock, Qty 10

0

Poulan 532422719

BLADE.42SP"3N1

$20.99

$

In Stock, Qty 10

0

13

Poulan 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

15

Poulan 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 6

0

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 16

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

37

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

38

Poulan 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 14

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Poulan 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Poulan 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 532197249

IDLER.ARM

$

$

Not available

56

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

57

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

59

Poulan 532141043

GUARD, BELT

$

$

Not available

60

Poulan 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$14.99

$

In Stock, only 2 left!

0

63

Poulan 532199477

(Superseded to 532199478)

$17.99

$

In Stock, Qty 8

0

64

Poulan 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

67

Poulan 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

Poulan 532429636

BELT.DECK.DRIVE.42"
(Superseded to 598559101)

$51.99

$

In Stock, Qty 13

0

69

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Poulan 532198332

CLUTCH.ASM.MANUAL.LT.TEX

$80.99

$

In Stock, only 1 left!

0

113

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

116

Poulan 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Poulan 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

119

Poulan 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

122

Poulan 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 7

0

123

Poulan 532197259

KEEPER BELT RH

$

$

Not available

144

Poulan 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

145

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 7

0

147

Poulan 532401971

RETURN SPRING

$5.99

$

In Stock, Qty 8

0

152

Poulan 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

188

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

195

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

197

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

198

Poulan 532403149

BAFFLE CENTER FRONT

$

$

Not available

199

Poulan 532403150

BAFFLE FRONT RH

$

$

Not available

200

Poulan 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

240

Poulan 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, only 3 left!

0

Poulan 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) bearing (key 15) and nut (key 33) only- pulley /washer and blade bolt /washers not included)

$56.99

$

In Stock, Qty 19

0

Poulan 532415241

(Superseded to 583354301)

$727.99

$

Usually ships in 3-10 days

0
